Set-Up Instructions
2
1
2
5
m–3453
3
4
6

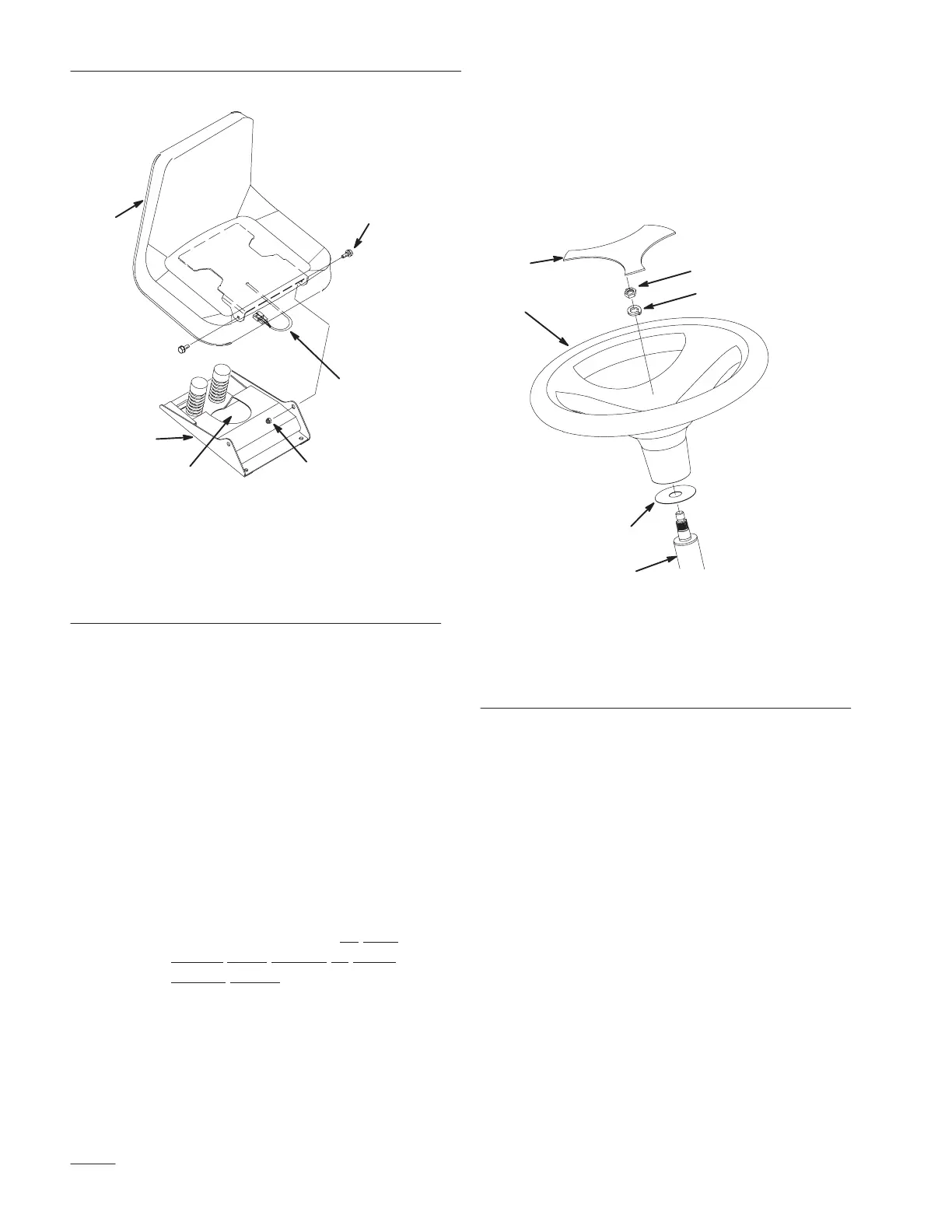

Figure 1
1. Seat
2. Seat base
3. 5/16” shoulder bolt (2)
4. 5/16” Locknut (4)
5. Seat switch wire
connector
6. Opening for seat switch
wire
Installing the Steering Wheel
1. Install the boot washer onto the steering shaft
(Fig. 2).
2. Remove the plastic trim cover from the steering
wheel (Fig. 2)
3. Install the steering wheel onto the shaft,
carefully aligning the splines (Fig. 2).
Note: On manual steering models, be sure to
align steering wheel in the straight
ahead position. There is no
fixed
straight ahead position on power
steering models.
4. Secure the steering wheel to the shaft with a lock
washer and nut
(Fig. 2). Tighten the retaining nut
to 45–50 ft–lbs.
5. Install the trim cover on the steering wheel.
m–2482
1
3
2
4
5
6
Figure 2
1. Boot washer
2. Steering shaft
3. Steering wheel
4. Lock washer
5. Nut
6. Trim cover
Checking Front Wheel Toe–In
With the tractor on a level surface, check to make
sure the front wheel toe-in is between 1/8” and 1/4”.
For instructions on adjusting toe-in, refer to the
Maintenance section in Operator’s Manual.
