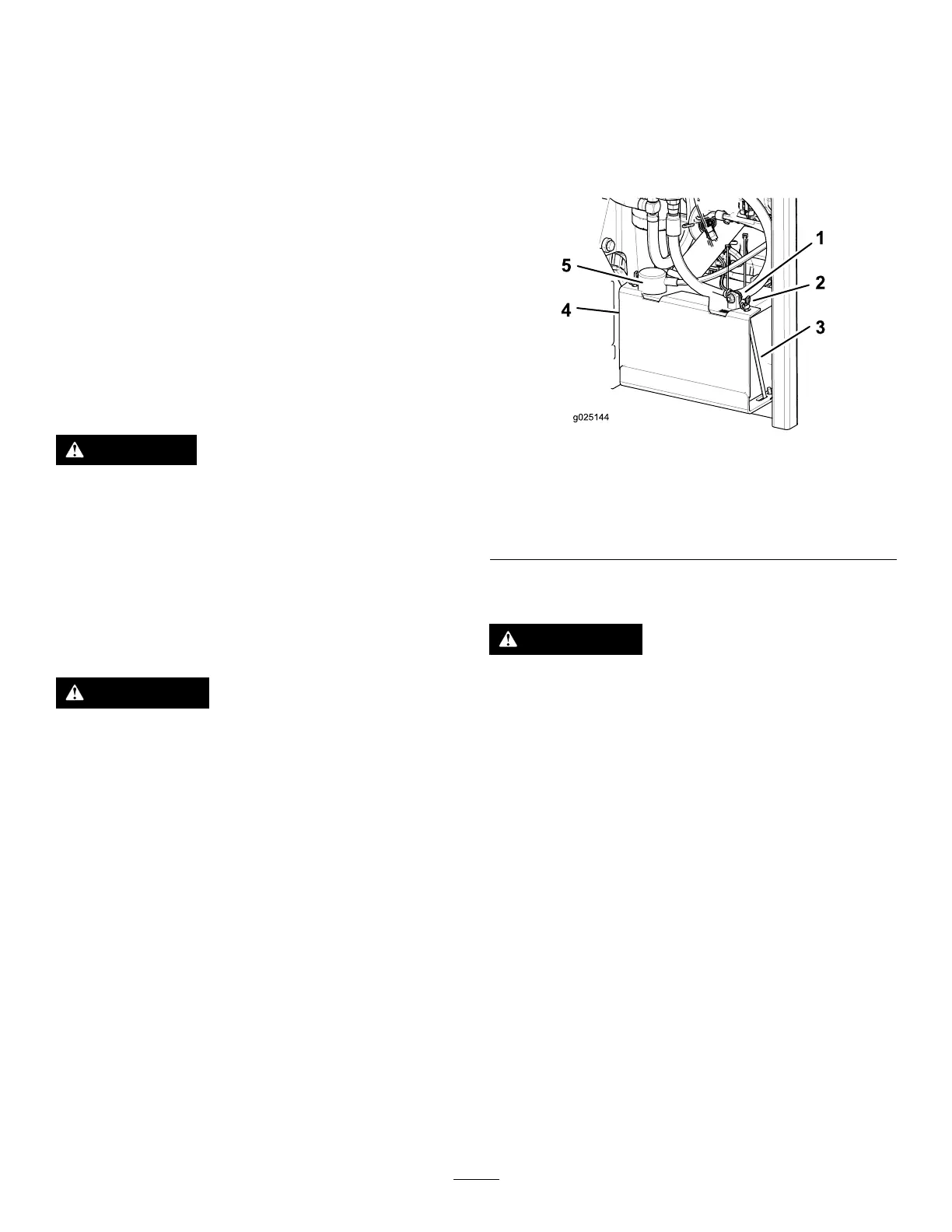

Figure 39
1. Pull this tab out to the
side in the direction of the
arrow
3. Pull the shroud of f this
frame tab in the direction
of the arrow
2. Pull the shroud of f this
frame tab in the direction
of the arrow
4. Shroud
4. Remove the spark plug.
g008803
g027478
Figure 40
Checking the Spark Plug(s)
Important: Do not clean the spark plug(s).
Always replace the spark plug(s) when it has a
black coating, worn electrodes, an oily lm, or
cracks.
If you see light brown or gray on the insulator , the
engine is operating properly . A black coating on the
insulator usually means the air cleaner is dirty .
Set the gap to 0.76 mm (0.03 inch).
g206628
Figure 41
Installing the Spark Plug(s)
1. Install the spark plug(s) as shown in Figure 42 .
2. Install the hydraulic shroud ( Figure 39 ).
g028109
Figure 42
