ProductOverview
G01491 1
1
2
3
4
5
6
7
8
9
10
11
2
12

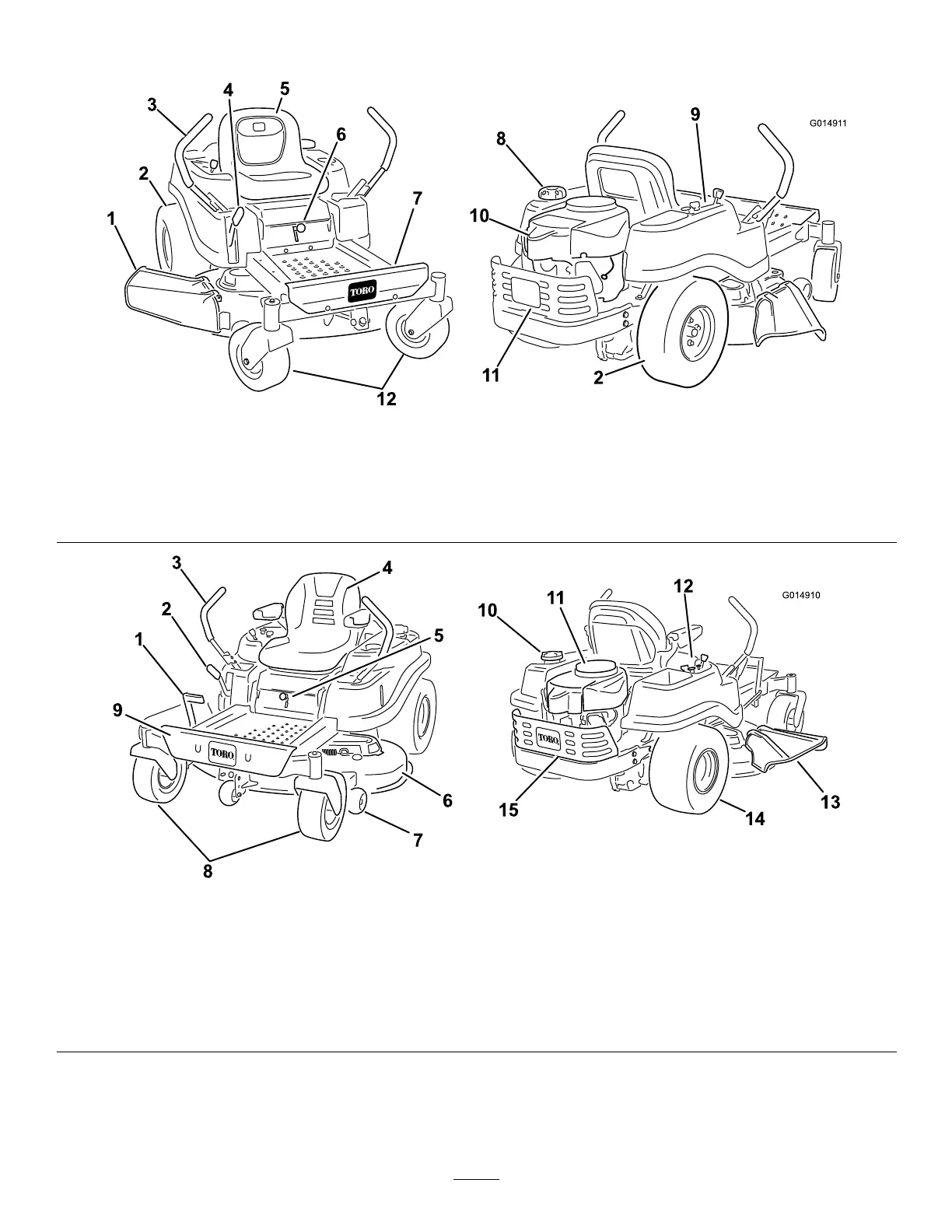

Figure4
Modelswith42inchdecks
1.Deector4.Heightofcutlever
7.Footrest10.Engine
2.Reardrivewheel
5.Operatorseat
8.Fueltankcap11.Engineguard
3.Motioncontrollevers
6.SmartSpeed™lever9.Controlpanel
12.Frontcasterwheel
G014910
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Figure5
Modelswith50inchdecks
1.Footassistlever
5.SmartSpeed™lever
9.Footrest
13.Deector
2.Heightofcutlever
6.Mowerdeck
10.Gastankcap
14.Reardrivewheel
3.Motioncontrollevers7.Anti-scalproller11.Engine15.Engineguard
4.Operatorseat(armrests
optional)
8.Frontcasterwheel
12.Controlpanel
