Controls
BecomefamiliarwithallofthecontrolsinFigure5,Figure
6,andFigure7beforeyoustarttheengineandoperatethe
machine.

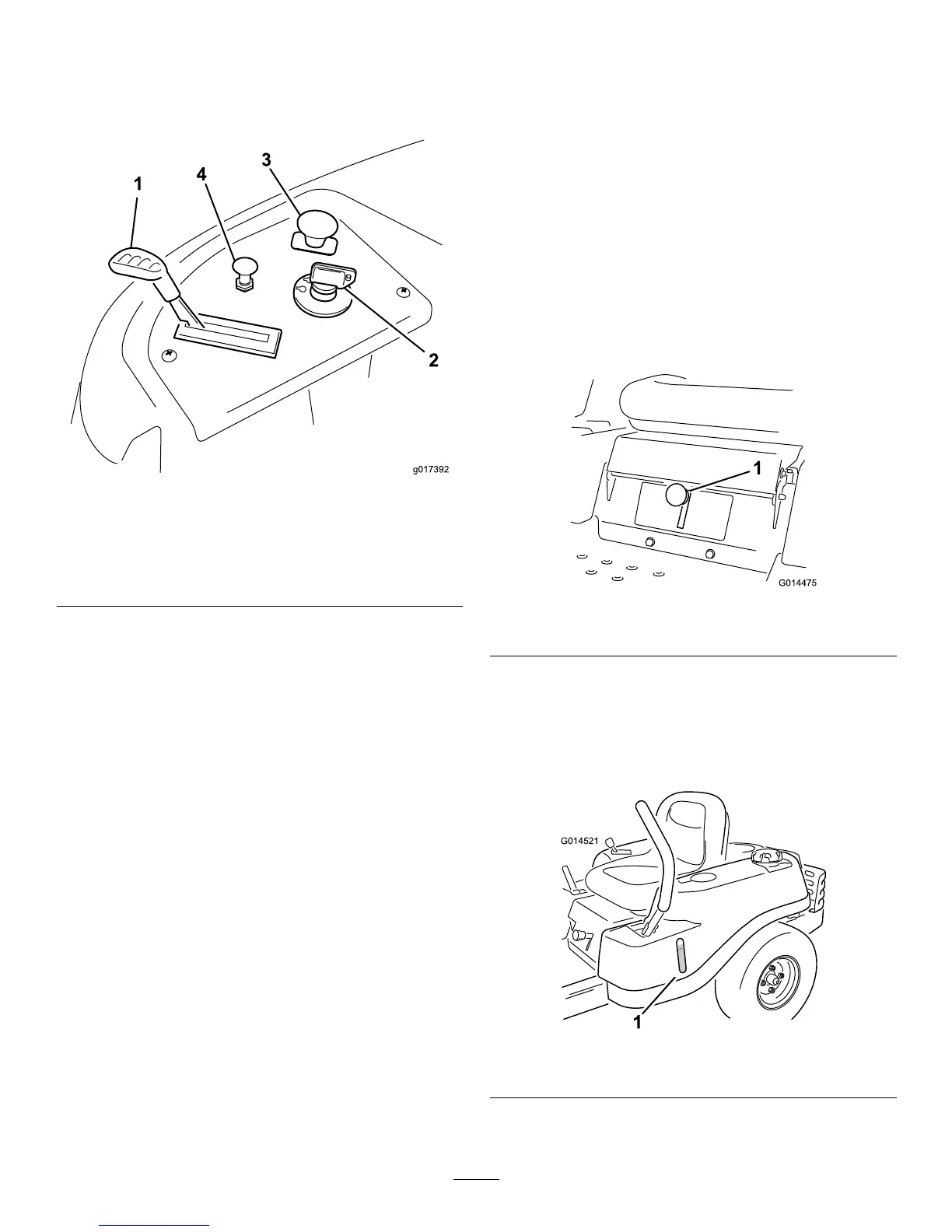

Figure7
ControlPanel
1.Throttle3.Bladecontrolswitch
(powertake-off)
2.Ignitionswitch
4.Choke
IgnitionSwitch
Theignitionswitchhasthreepositions,Off,RunandStart.
ThekeywillturntoStartandmovebacktoRunuponrelease.
TurningthekeytotheOffpositionwillstoptheengine;
however,alwaysremovethekeywhenleavingthemachine
topreventsomeonefromaccidentallystartingtheengine
(Figure7).
ThrottleControl
Thethrottlecontrolstheenginespeedandithasacontinuous
variablesettingfromSlowtoFast(Figure7).
ChokeControl
PullupontheChokecontroluntilitstopstochokethe
engine(Figure7).PushdownontheChokecontrolfor
normalengineoperation
BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades(Figure7).
MotionControlLeversandPark
Position
Themotioncontrolleversarespeedsensitivecontrolsof
independentwheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
reverse;wheelspeedisproportionaltotheamountthelever
ismoved.Movethecontrolleversoutwardfromthecenter
totheparkpositionandexitthemachine(Figure19).Always
positionthemotioncontrolleversintotheparkposition
whenyoustopthemachineorleaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™ControlSystemlever,locatedbelowthe
operatingposition,givestheoperatorachoicetodrivethe
machineattwospeedranges,highandlow(Figure8).
G014475
1
Figure8
1.Smartspeedlever
FuelWindow
Thefuelwindowlocatedonthelefthandsideofthemachine
canbeusedtoverifythepresenceofgasolineinthetank
(Figure9).
G014521
1
Figure9
1.Fuelpresencewindow
