Toro 74632 - Operating the Blades; Testing the Safety Interlock System

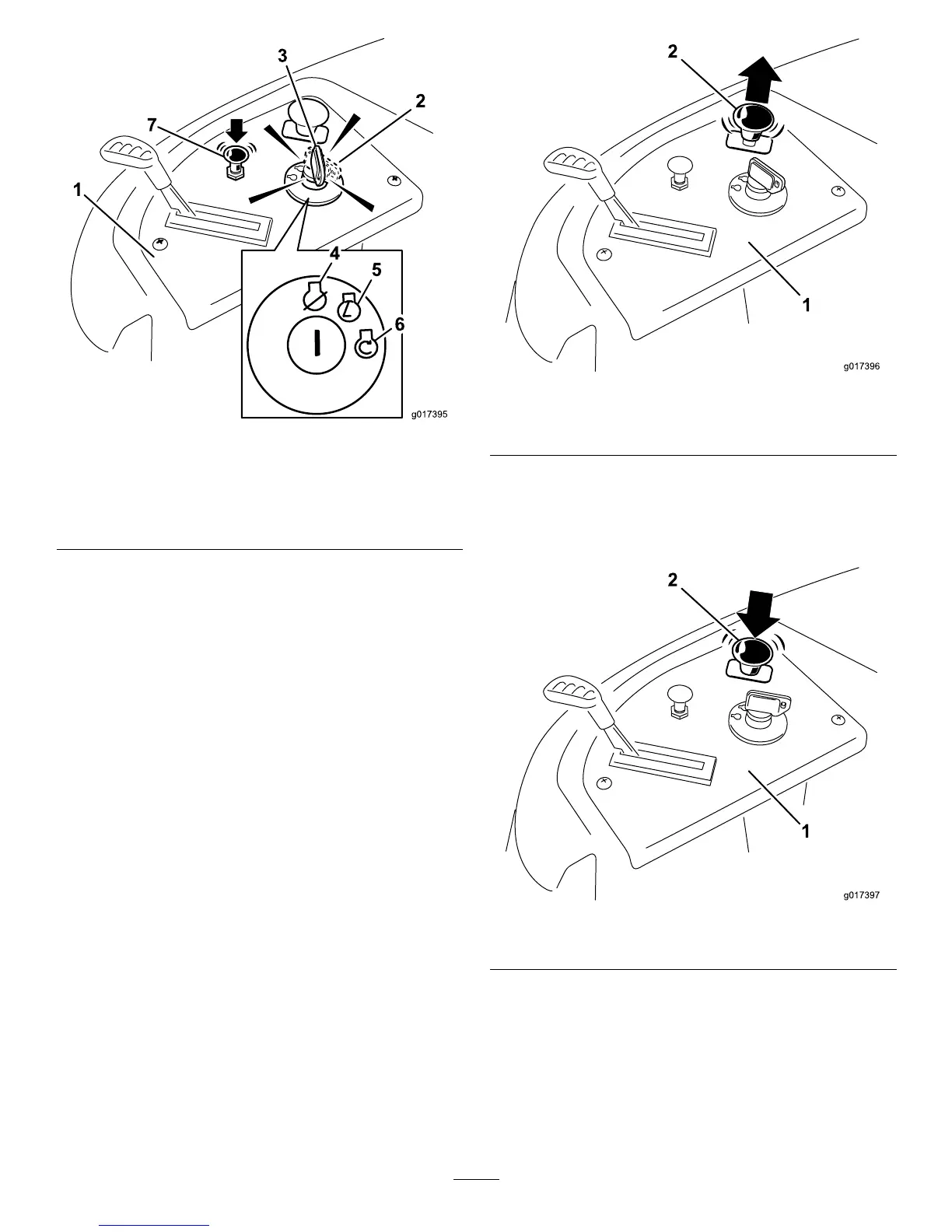

Figure16
1.Controlpanel
5.Run
2.Ignitionkey—runposition
6.Start
3.Ignitionkey—startposition
7.Chokecontrol
4.Off
5.Aftertheenginestarts,pushdownontheChoke
control(
Figure16).Iftheenginestallsorhesitates,pull
upontheChokecontrolandlettheenginerunfora
fewseconds.ThenpushdownontheChokecontrol.
Repeatthisasrequired.
OperatingtheBlades
Thebladecontrolswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades.Thisswitchcontrolspowertoanyattachmentsthat
drawpowerfromtheengine,includingthemowerdeckand
cuttingblades.
EngagingtheBlades
Important:Donotengagethebladeswhenparkedin
tallgrass.Beltorclutchdamagecanoccur.
1.Releasepressureonthemotioncontrolleversand
placethemachineinneutral.
2.MovethethrottletotheFastposition.
Note:Alwaysengagethebladeswiththethrottlein
theFastposition.
3.Pulluponthebladecontrolswitchtomoveittothe
Onpositionandengagetheblades(
Figure17).
Figure17
1.Controlpanel2.Bladecontrolswitch—On
position
DisengagingtheBlades
PushdownonthebladecontrolswitchtomoveittotheOff
positionanddisengagetheblades(Figure18).
Figure18
1.Controlpanel2.Bladecontrolswitch—Off
TestingtheSafetyInterlock
System
Testthesafetyinterlocksystembeforeyouusethemachine
eachtime.Ifthesafetysystemdoesnotoperateasdescribed
below,haveanAuthorizedServiceDealerrepairthesafety
systemimmediately.
30
