Toro 75305 - Adjusting the Height of Cut

AdjustingtheHeightofCut
Themachineisequippedwithafootpedaldeck-lift
system.Youcanusethefootpedaltoliftthedeck
brieytoavoidobstaclesandtoraisethedeck.
Youcanadjusttheheightofcutfrom38to114mm
(1-1/2to4-1/2inches)in6mm(1/4inch)increments
bymovingtheheight-of-cutpinintodifferenthole
locations.
1.Pushonthedeck-liftpedalwithyourfoottoraise
themowerdeck.
2.Toadjust,removethepinfromtheheight-of-cut
bracket(Figure25).
3.Selectaholeintheheight-of-cutsystem
correspondingtothedesiredheightofcutand
insertthepin(Figure25).
4.Lowerthedeckslowlyuntilthelevermakes
contactwiththepin.

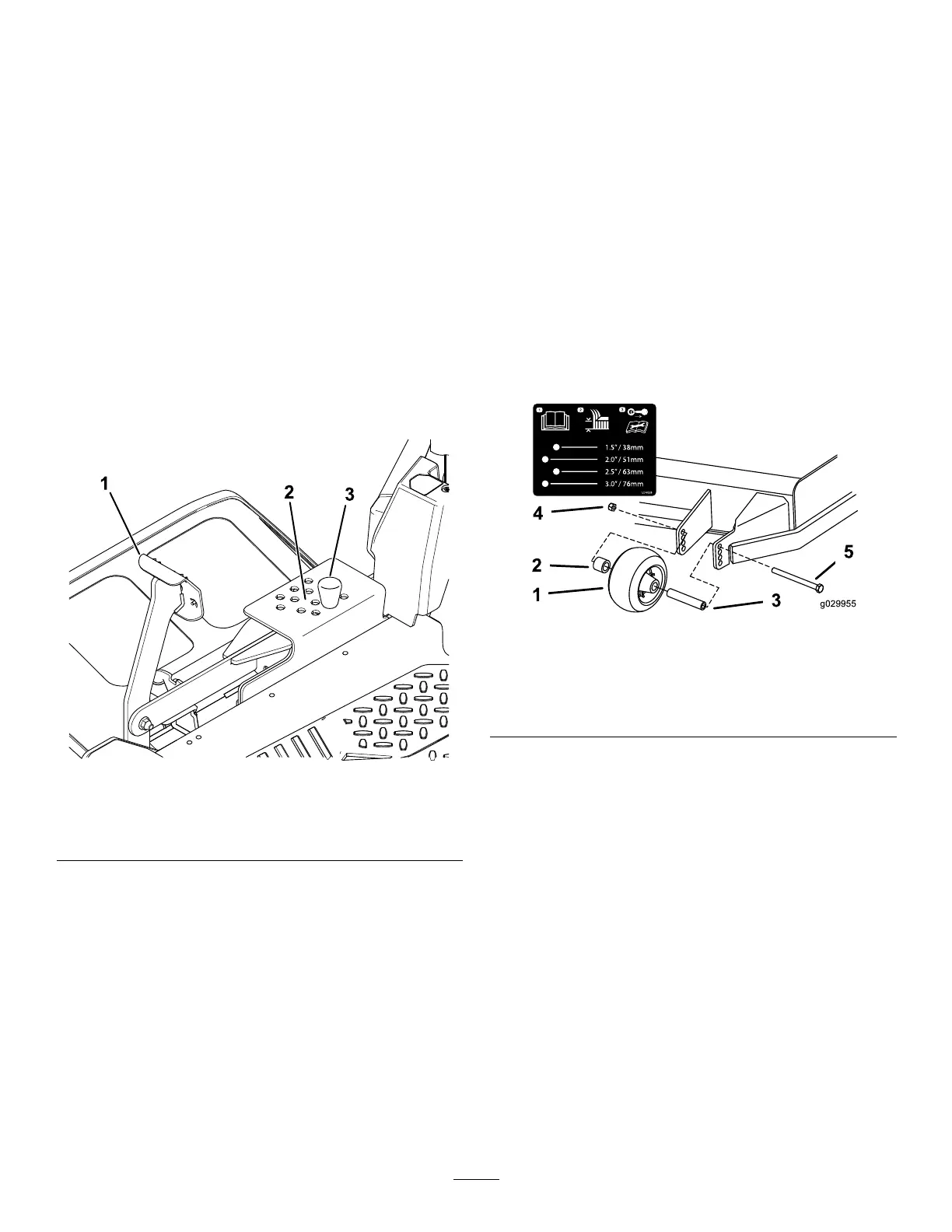

g297360
Figure25
1.Deck-liftpedal
3.Pin
2.Height-of-cutpositions
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheightofcut,adjustthe
heightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollers
donottouchthegroundinnormal,atmowingareas.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitchandengagetheparking
brake;refertoOperatingtheParkingBrake
(page18).
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersasshowninFigure
26.
g029955
Figure26
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
