Install the Network VP/VPE TM onto the
plastic satellite cabinet. Install cable assembly

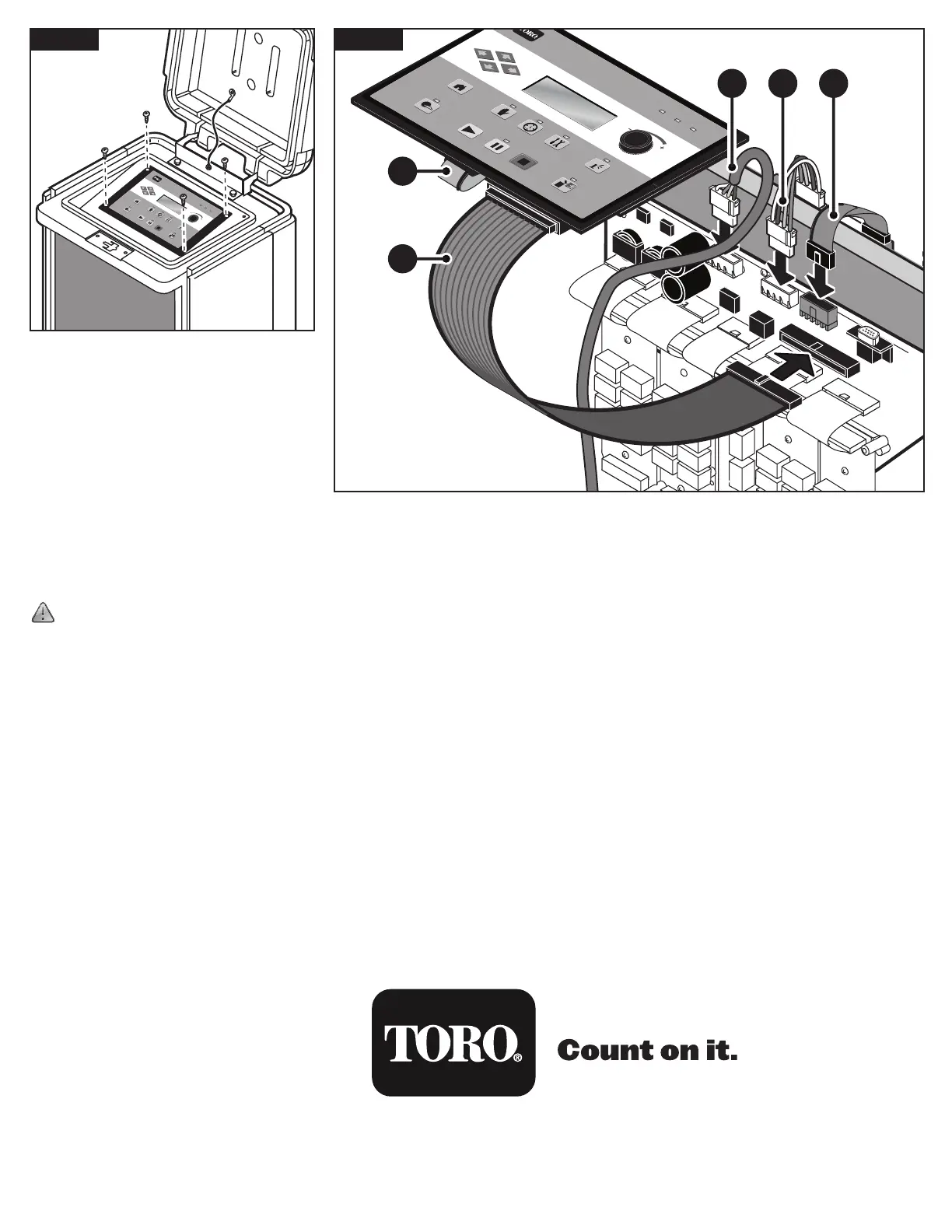

D, E, F and G as shown in Figure 14. Turn the
satellite ON and check for proper operation.
B - Modem Cable, 4.75 Inch, 16-Pin Ribbon
Cable
D - 4-Wire Power Cable Assy. from Power
Supply.
E - Conversion Board to Distribution Board
Power Cable, 5.5 Inch 4-wire Cable Assy.
F - Conversion Board to Distribution Board
Ribbon Cable Assy., 5.75 Inch, 16-Pin
Ribbon Cable
G - TM to Conversion Board Ribbon Cable,
12 Inch, 40-Pin Ribbon Cable
IMPORTANT: Although the cable
assemblies are keyed, it is possible to install
them incorrectly. Verify the key is as shown in
Figure 14.
Send items for recycling or proper disposal to:
e Toro Company
Attn: Controller Repair
5825 Jasmine St.
Riverside, CA 92502-0489
