Toro Power Curve 1500 - Setup and Assembly; Installing the Upper Handle

Setup
Note:Determinetheleftandrightsidesoftheappliancefrom
thenormaloperatingposition.
InstallingtheUpperHandle
1.Removethehandleknobs,ovalbolts,andcurvedwashers
fromthelowerhandle(Figure1).
g013476

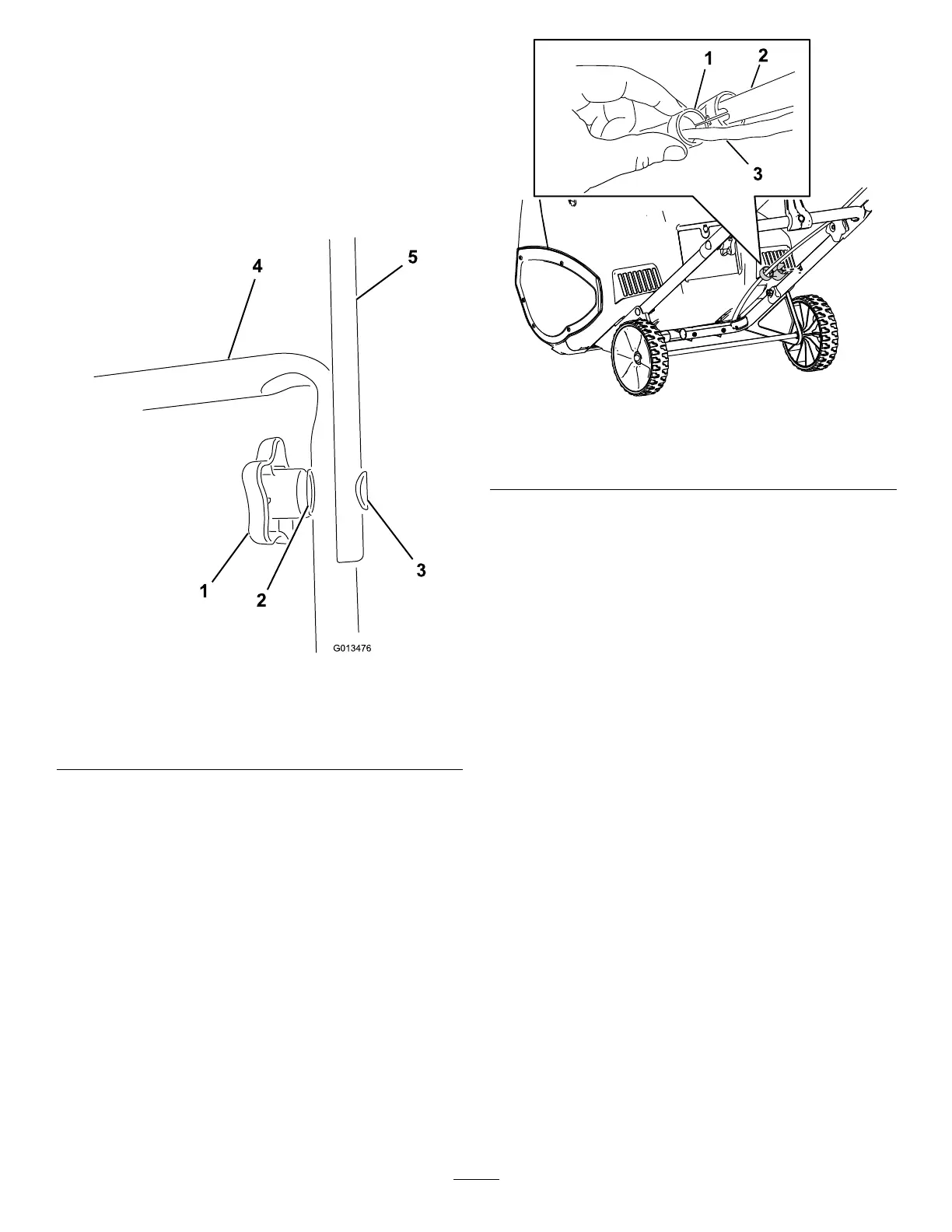

Figure1
1.Handleknob(2)
4.Lowerhandle
2.Curvedwasher(2)
5.Upperhandle
3.Ovalbolt(2)
2.Installtheupperhandletothelowerhandleoftheappliance
withthehandleknobs,curvedwashers,andovalboltsas
showninFigure1.
Note:Ensurethatthepowercordattachedtothe
applianceisroutedoverthelowerhandleandtotheinside
ofthehandleassembly.
3.Tightenthehandleknobsrmlybyhand.
4.Attachthecordguidetothehandle(Figure2).
g287698
Figure2
1.Cordguide3.Cord
2.Handle
