g013464

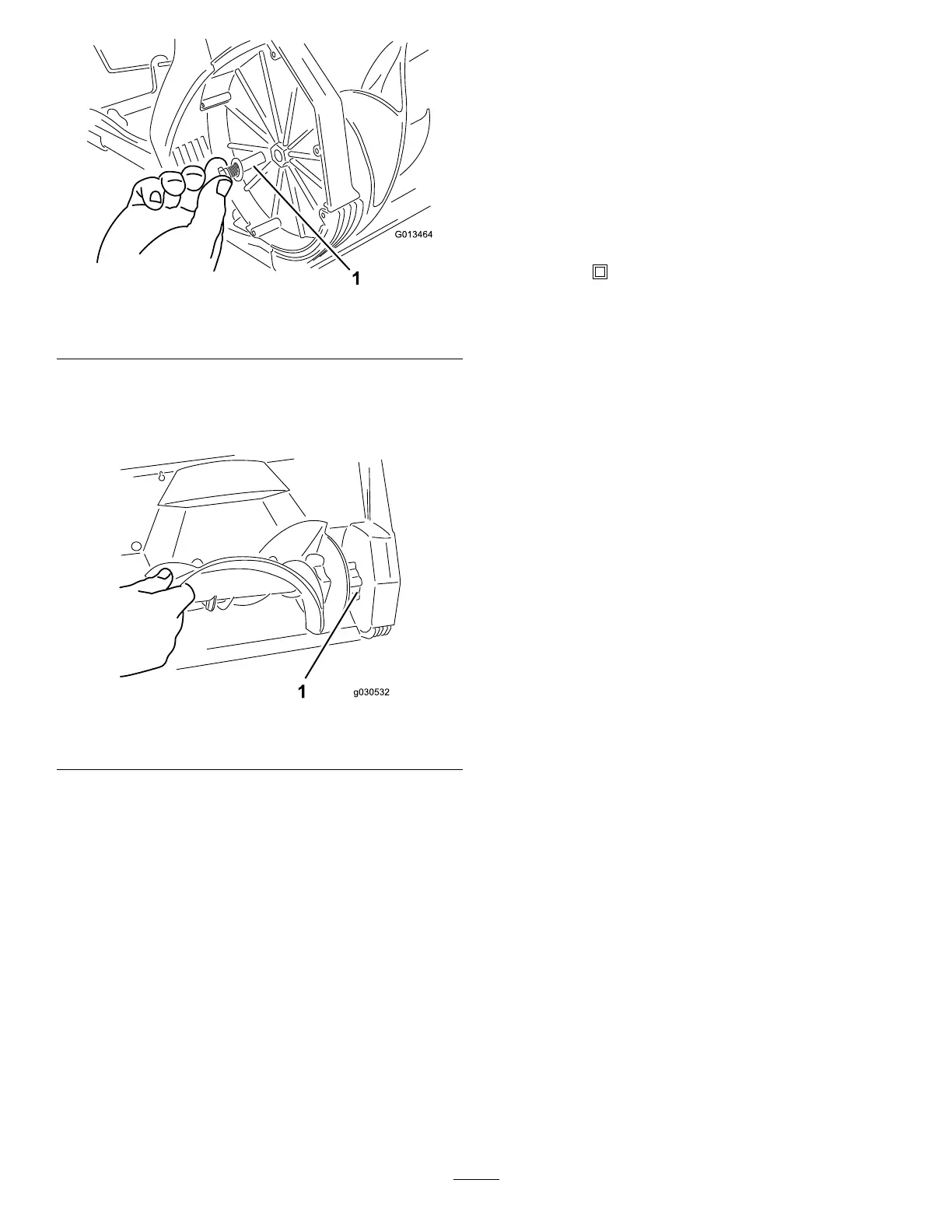

Figure11
1.Rotorpin
3.Removetheoldrotor.
4.Installthenewrotorbyinsertingtheendoftherotorontothe
ttedendinthehousingandrotatingtherotoruntilitsnaps
intoplace(Figure12).
g030532
Figure12
1.Fittedendoftherotor
Note:Ensurethatthenutthatsecurestherotorpin
remainsinsidetherecessedholeintherightinsidewallof
thehousing.
Note:Thehousingwillexwhenyouinstalltherotor.
5.Tightentheboltonthesideofthehousing.
6.Installtherightsideplatewiththescrewsthatyouremoved
instep1.
Service
Torohasdesignedthisappliancetogiveyouyearsoftrouble-free
use.Shoulditneedservice,bringtheappliancetoanAuthorized
ToroServiceDealer,whoisspeciallytrainedtorepairT oro
productsandwillensurethatyourT orostays“all”T oro.
Double-insulated
Appliances
Inadouble-insulatedappliance,twosystemsofinsulation
areprovidedinsteadofgrounding.Nogroundingmeansis
providedonadouble-insulatedappliance,norshouldameansfor
groundingbeaddedtotheappliance.Servicingadouble-insulated
appliancerequiresextremecareandknowledgeofthesystem,
andshouldbedoneonlybythequaliedservicepersonnelat
anAuthorizedToroServiceDealer.Replacementpartsfora
double-insulatedappliancemustbeidenticaltothepartsthey
replace.Adouble-insulatedapplianceismarkedwiththewords
“DoubleInsulation”or“DoubleInsulated.”Thesymbol(square
withinasquare)
mayalsobemarkedontheappliance.
ProductInformation
Amodelandserialnumberdecalislocatedonthehousing.
Alwaysrefertospecicnumbersonthedecalincorrespondence
orwhenyouneedreplacementparts.
Storage
1.Runtheapplianceforafewminutesandwipeawayany
meltedsnowontheappliance.
2.Removetheinterlockbutton(key)anddisconnectthe
extensioncordfromtheappliance.
3.Examinetheextensioncordthoroughlyforsignsofwearor
damage.Replaceitifitiswornordamaged.
4.Examinetheappliancethoroughlyforworn,loose,or
damagedparts.Torepairorreplaceparts,contactan
AuthorizedServiceDealerforassistance.
5.Storetheextensioncordwiththeappliance.
6.Storetheapplianceinaclean,dryplace.
8
