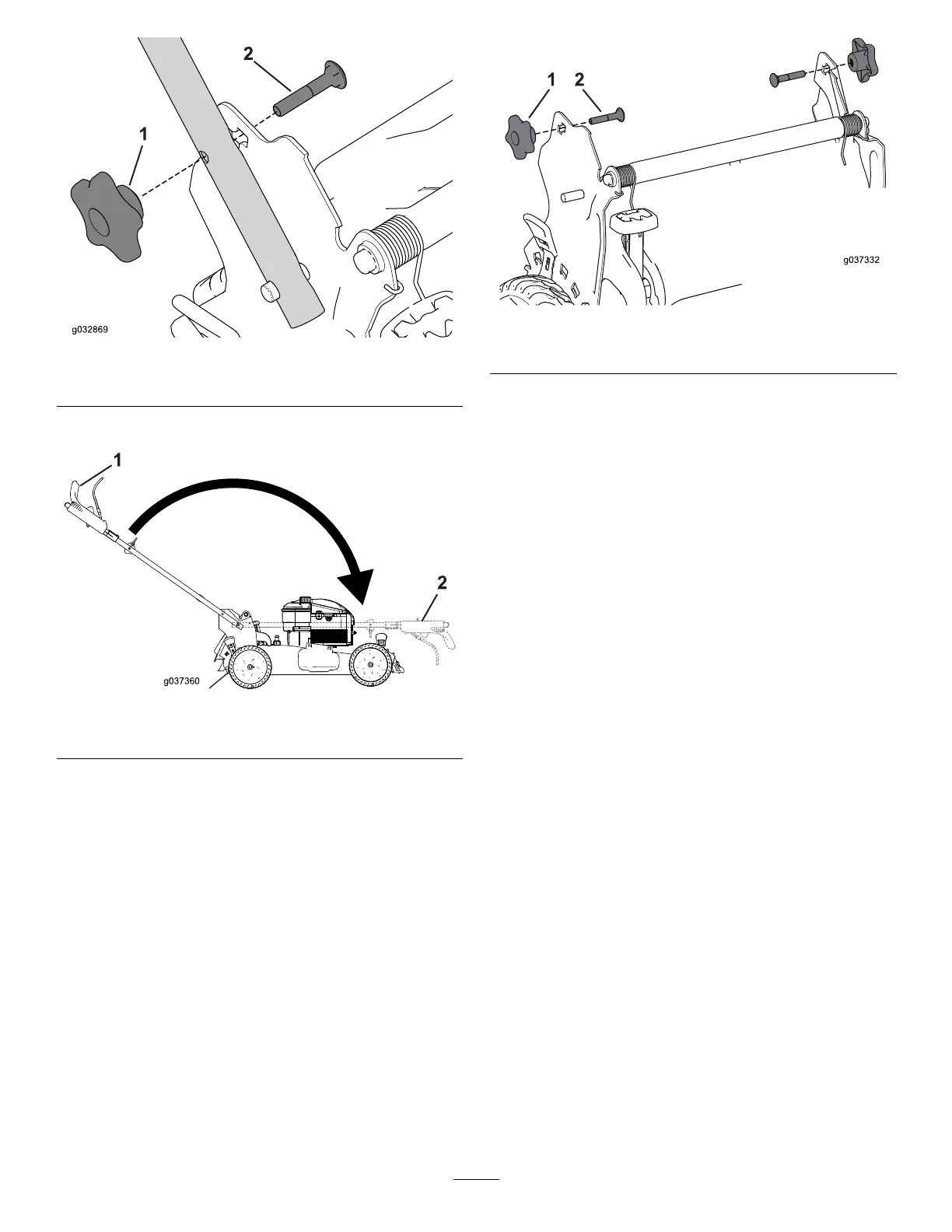

Figure28
1.Handleknob
2.Carriagebolt
2.Foldthehandlebyrotatingitforward(Figure29).
g037360
Figure29
1.Operatingposition
2.Foldedposition
3.Insertthecarriagebolt(withtheboltheadtowardthe
inside)throughthehandlebracketandtheupperhole
inthehandleend.Ensurethatthesquareedgesofeach
carriagebolttsintotheupperorlowersquareholein
itsrelatedhandlebracket(Figure30).
g037332
Figure30
1.Handleknob
2.Carriagebolt
4.Looselyinstallthehandleknobsandcarriageboltson
thehandlebrackets.
5.Tounfoldthehandle,referto2Assemblingand
UnfoldingtheHandle(page4).
