Toro Recycler 20374 - Side-Discharging the Clippings

G017306

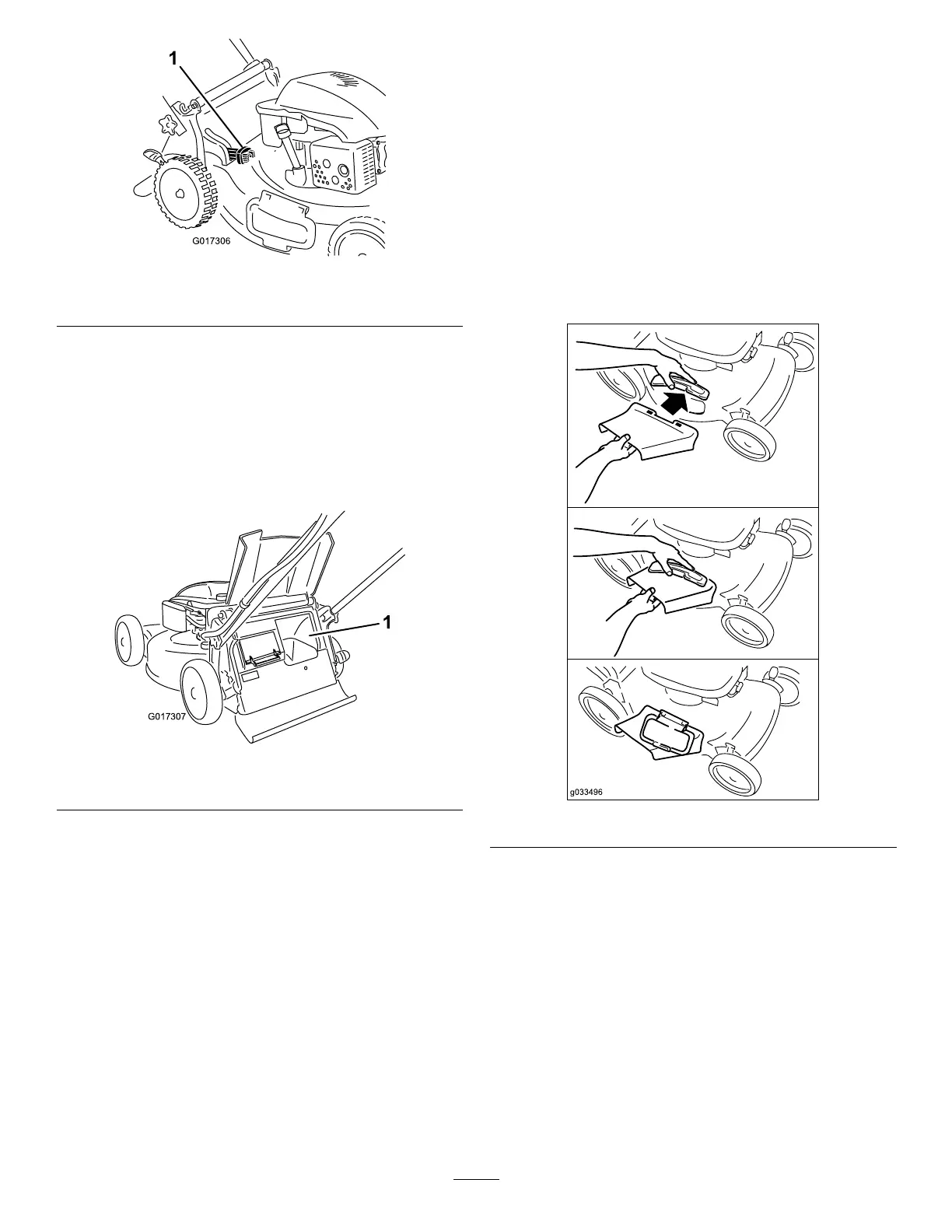

Figure22
1.Bag-on-demandlever(inbaggingposition)
•Forrecyclingthegrassandleafclippings,pressthebutton
ontheleverandmovetheleverrearwarduntilthebutton
ontheleverpopsup.
Important:Forproperoperation,removeanygrass
clippingsanddebrisfromthebag-on-demanddoor
andthesurroundingopening(Figure23)beforeyou
movethebag-on-demandleverfromoneposition
toanother.
G017307
Figure23
1.Cleanhere
Side-Dischargingthe
Clippings
Usetheside-dischargeforcuttingverytallgrass.
Ifthegrassbagisonthemachineandthebag-on-demand
leverisinthebaggingposition,movethelevertotherecycling
position;refertoOperatingtheBag-on-DemandLever(page
12).
InstallingtheSide-DischargeChute
Liftupthesidedeectorandinstalltheside-dischargechute
(Figure24).
Figure24
RemovingtheSide-DischargeChute
Toremovetheside-dischargechute,liftupthesidedeector,
removetheside-dischargechute,andlowertheside-discharge
deector.
13
