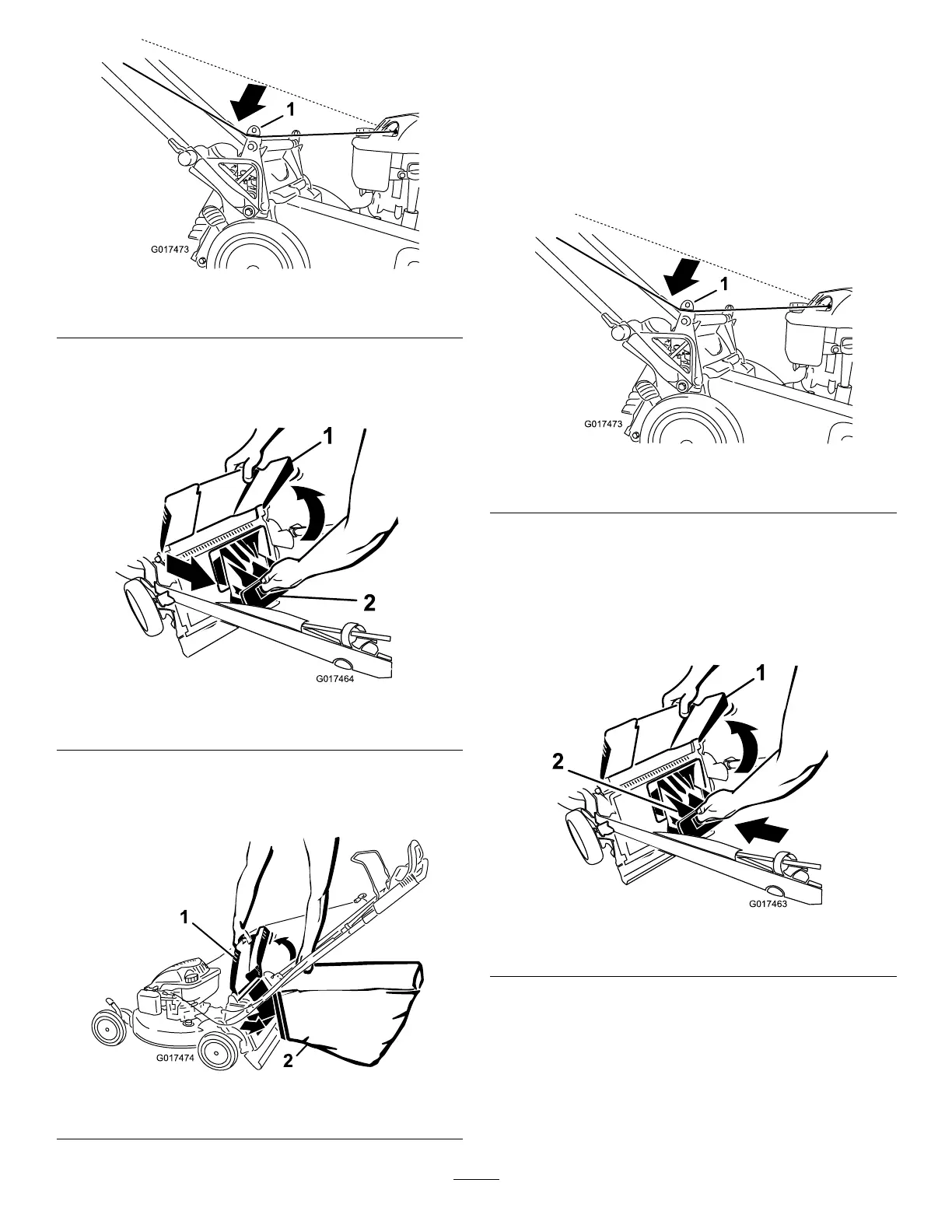

Toro Super Recycler 20381 - Page 14

G017473
Figure22
1.Lower-ropeguide
Note:Thelower-ropeguidereleasesthestarterrope
whenyoupulltherecoil-starthandle.
2.Raiseandholdupthedischargedeector(Figure23).
G017464
Figure23
1.Dischargedeector
2.Rear-dischargeplug
3.Pullouttherear-dischargeplug(Figure23).
4.Hangtheupperfrontedgeofthebagonthenotches
(Figure24).
G017474
Figure24
1.Dischargedeector2.Grassbag
Note:Ensurethatthegrassbagissecurelyinstalled
ontothemachine.
5.Lowerthedischargedeector.
RemovingtheGrassBag
1.Routethestarterropearoundthelower-ropeguide
(Figure25).
G017473
Figure25
1.Lower-ropeguide
Note:Thelower-ropeguidereleasesthestarterrope
whenyoupulltherecoil-starthandle.
2.Raiseandholdupthedischargedeector.
3.Removethegrassbag.
4.Installtherear-dischargeplug(Figure26).
G017463
Figure26
1.Dischargedeector
2.Rear-dischargeplug
Important:Ensurethattherear-dischargeplugis
lockedinplace.Tolocktheplug,rmlypushthe
pluginuntilitsnapsintoplacebehindthetabs,
androtatetheleverontheplugtotheleft(Figure
27).
14
