InstallingtheHydraulic-System
Filters
1.Applyathincoatofoilonthesurfaceofthe
rubbersealofeachlter.
2.Turnthelterclockwiseuntiltherubberseal
contactsthelteradapter,thentightenthelter
anadditional3/4to1fullturn.
3.Repeatfortheoppositelter.
4.Installthelterguardsovereachlterthatyou
previouslyremoved.
5.Usethe3screwstosecurethelterguards.
6.Verifythattheventplugsareremovedbefore
addingtheoil.
7.Slowlypourthespeciedoilthroughthe
expansionreservoiruntiloilcomesoutof1of
thevent-plugholes.
8.Installtheventplug.
9.Torquetheplugto20N∙m(15ft-lb).
10.Continuetoaddoilthroughtheexpansion
reservoiruntiloilcomesoutoftheremaining
vent-plugholeonthesecondtransmission.
11.Installtheoppositeventplug.
12.Torquetheplugto20N∙m(15ft-lb).
13.Continuetoaddoilthroughtheexpansion
reservoiruntilitreachestheFULLCOLDlineon
theexpansionreservoir.
14.ProceedtoBleedingtheHydraulicSystem
(page72).
Important:FailuretoperformtheBleeding
theHydraulicSystemprocedureafter
changinghydraulicltersandoilcanresult
inirreparabledamagetothetransaxledrive
system.

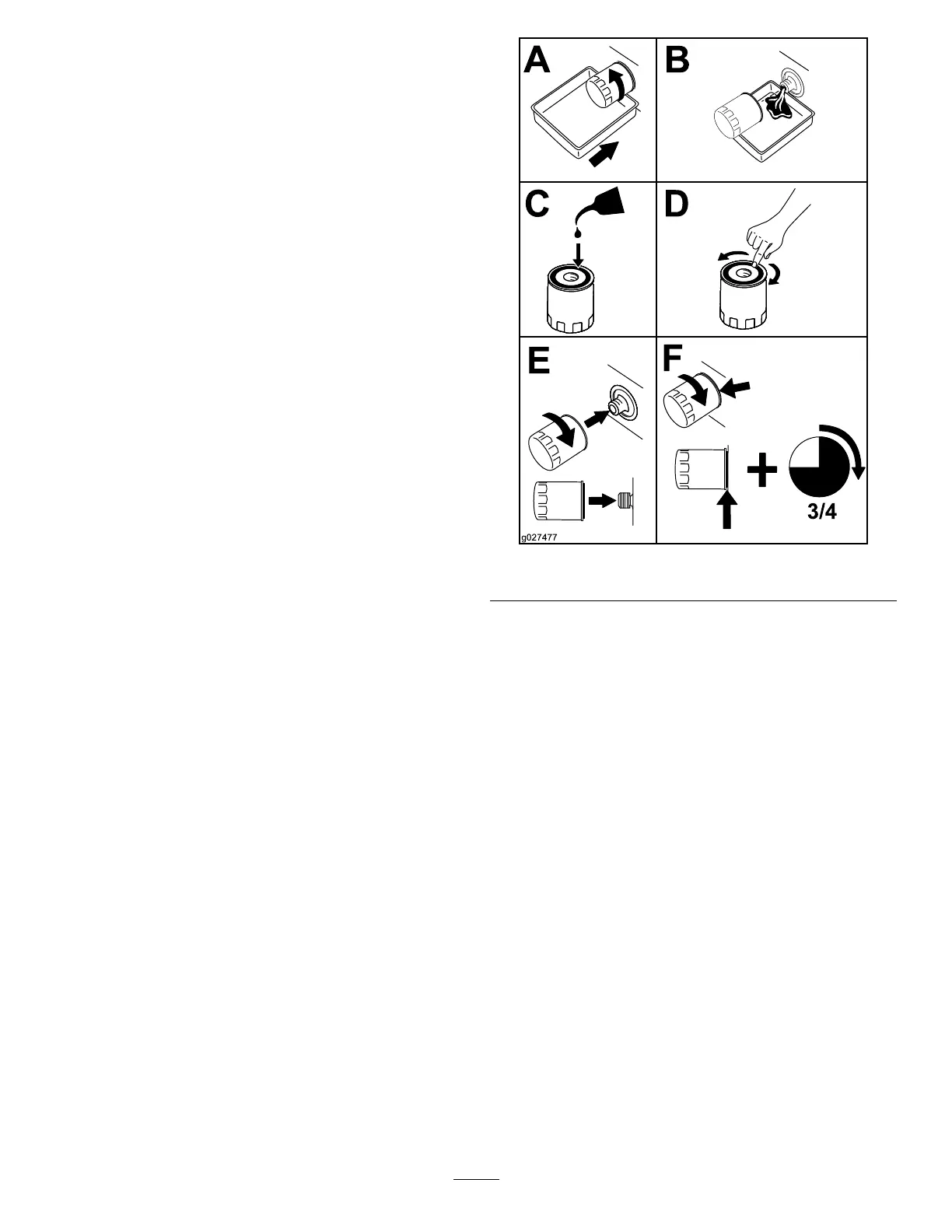

g027477
Figure99
71
