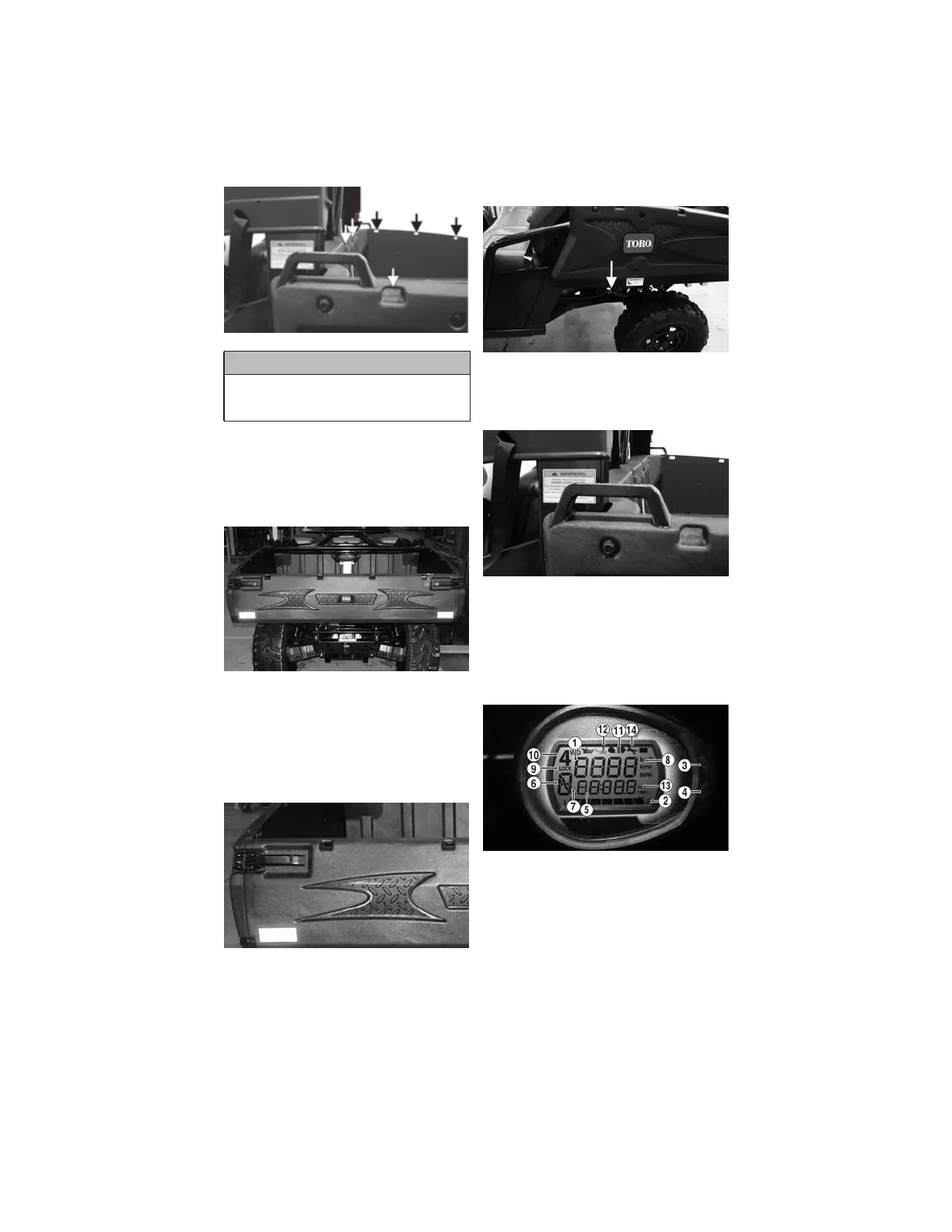

29
HDX094A
NOTE: Always refer to the Load
Capacity Ratings chart in this man-
ual when loading and hauling
cargo.
Tailgate Latches
TC010
1. To open the tailgate, pull the latch
handles (located on the end of the
tailgate).
2. To close the tailgate, lift up and push
forward f irmly. Hook the latch bails and
push the handles forward over center.
TC009
Cargo Box Latch Handles
TC008A
1. To raise the cargo box, lift the latch
handle upward; then raise the cargo
box.
HDX094
2. To lower the cargo box, use the box
handle to push down firmly on the
front of the box. The box will automat-
ically lock into position and an audible
“click” will be heard.
Speedometer/LCD
TC015
1. Speedometer/Tachometer/Condition
Warning Display - Indicates the
approximate vehicle speed (MPH or
km/h) or RPM. Warns of a system
error condition requiring attention.
CAUTION
When using ratchet-type straps, do
not over tighten or damage to the
cargo box could occur.
