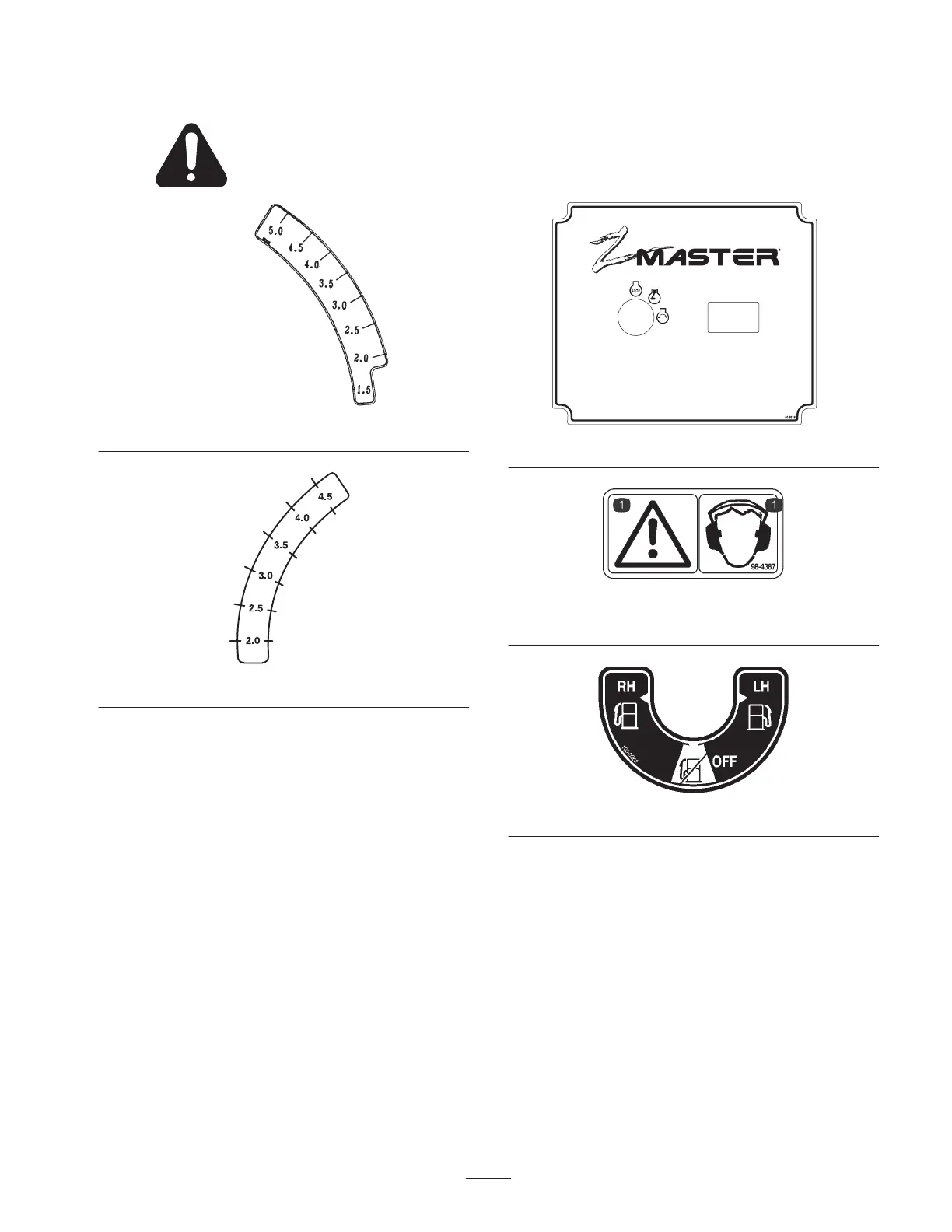

Safety and Instruction Decals
Safety
decals and instructions are easily visible to the operator and are located near any
area of
potential danger
. Replace any decal that is damaged or lost.
1–633345
1–633706
99–4632
98-4387
1.
W
arning—wear
hearing protection.
103–0262
8
10
Table of Contents
Table of Contents
2
Introduction
3
Safety
3
Safe Operating Practices
3
Toro Mower Safety
5
Slope Chart
7
Safety and Instruction Decals
9
Gasoline and Oil
14
Recommended Gasoline
14
Using Stabilizer/Conditioner
14
Filling the Fuel Tank
14
Check Engine Oil Level
14
Setup
15
Loose Parts
15
Installing Drive Wheels
15
Checking the Tire Pressure
15
Installing the Seat Retaining Rod
15
Installing the Motion Control Levers
16
Activating the Battery
16
Installing the Air Cleaner
17
Checking the Hydraulic Fluid
18
Greasing the Bearings
18
Checking the Side Discharge Chute
18
Checking the Level of Mower Deck
18
Checking the Engine Oil Level
18
Operation
19
Think Safety First
19
Controls
19
Operating the Parking Brake
20
Starting and Stopping the Engine
20
Operating the Power Take off (PTO)
21
The Safety Interlock System
22
Driving Forward or Backward
22
Stopping the Machine
23
Adjusting the Height-Of-Cut
23
Adjusting the Anti-Scalp Rollers
23
Positioning the Seat
24
Pushing the Machine by Hand
24
Using a Rollover Protection System
25
Using the Side Discharge
25
Transporting Machines
25
Loading Machines
25
Using the Lift Assist Lever
25
Using the Z Stand
26
Tips for Mowing Grass
27
Maintenance
28
Recommended Maintenance Schedule
28
Servicing the Cutting Blades
29
Servicing the Air Cleaner
31
Servicing the Engine Oil
32
Servicing the Spark Plug
33
Servicing the Fuel Filter
34
Servicing the Fuel Tank
34
Greasing and Lubrication
35
Greasing the Bearings
35
Cleaning the Cooling Systems
36
Checking the Tire Pressure
36
Checking the Wheel Hub Slotted Nut
36
Castor Pivot Bearing Adjustment
37
Servicing the Hydraulic System
37
Adjusting the Motion Controls
39
Replacing the Pump Drive Belt
41
Adjusting the Parking Brake
41
Servicing the Fuse
41
Servicing the Battery
42
Leveling the Mower
44
Cleaning under the Deck
45
Inspecting Belts
45
Replacing the Deck Belt
45
Replacing the PTO Drive Belt
46
Replacing the Grass Deflector
47
Mercury Tilt Switch
48
Disposing the Mercury Tilt Switch
48
Wiring Diagram
49
Cleaning and Storage
50
Troubleshooting
51
The Toro Total Coverage Guarantee
