9.9 Analog Application Example - T-1 Controlling a Synth Voice
Synth voice control at a minimum consists of triggering a note on/off and setting the note pitch.
Other parameters such as velocity modulation may also exist. External gear pitch may need tuning
to ensure a transmitted note value at the destination device matches the desired note.
9.8 Analog Application Example - T-1 Secondary Clock Follower
T-1 can also operate as the secondary follower of a clock which is under another devices primary
control. This is a less common conguration. Matching up the clock pulses and run signals is
important to ensure the right tempo synchronisation. Analog synchronisation options can be edited
in the T-1 Cong tool.
Pam’s New Workout set as the primary lead, controlling T-1 as the secondary
clock follower. Any other connected devices to PNW will be synchronised.
T-1 as the secondary follower synchronised to PNW.

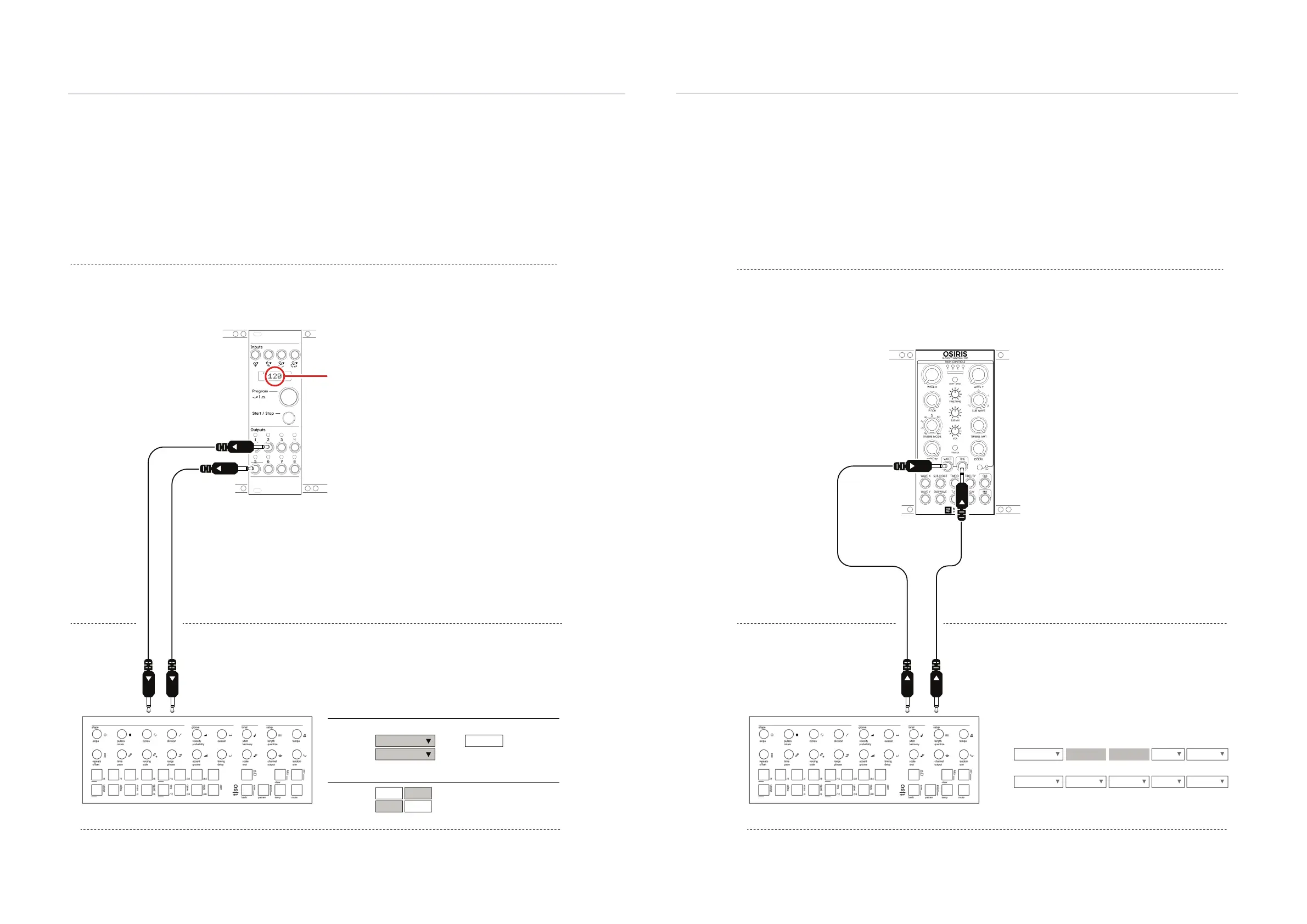

Example Conguration: T-1 with Modbap Modular’s Osiris Eurorack Module
Example Conguration: T-1 with ALM Pam’s New Workout - PNW Eurorack Module
a
Gate
a
CV
clk
Sync In
rst
Sync In
Patch Cables
Patch Cables
Eurorack + Osiris Environment
Eurorack + PNW Environment
Osiris is a wavetable synth module with a single WT voice plus a sub wave
underlying the main. This example controls the main WT voice.
T-1 Tracks assigned to Channel 1 will be routed to
the CV ‘a’ and Gate ‘a’ outputs.
Osiris default key settings:
• Pitch may need adjusting to ensure correct
calibration of notes sent to note played.
0V is Calibrated in T-1 to note C3.
• Notes triggered from T-1
Pam’s New Workout output 5, Clock to T-1:
• Channel Multiplier = x24, Wave set to Gate.
Pam’s New Workout output 2, Run to T-1:
• Channel Multiplier = x1, Wave set to Gate.
T-1 EnvironmentT-1 Environment
Tempo will lead T-1
50%
24 PPQN
reset
reset
run
run
24 PPQN
Analog Clock
Analog Reset
Rate Pulse width
In
In
Out
Out
Channel 1
Channel 1 Pitch
Re-trig
Re-trig
V-trig
V-trig
Routing Function Scaling Trig Voice stealing
gate a
cv a
V/Oct
