H-1 13A25/31A25C
NOTE:

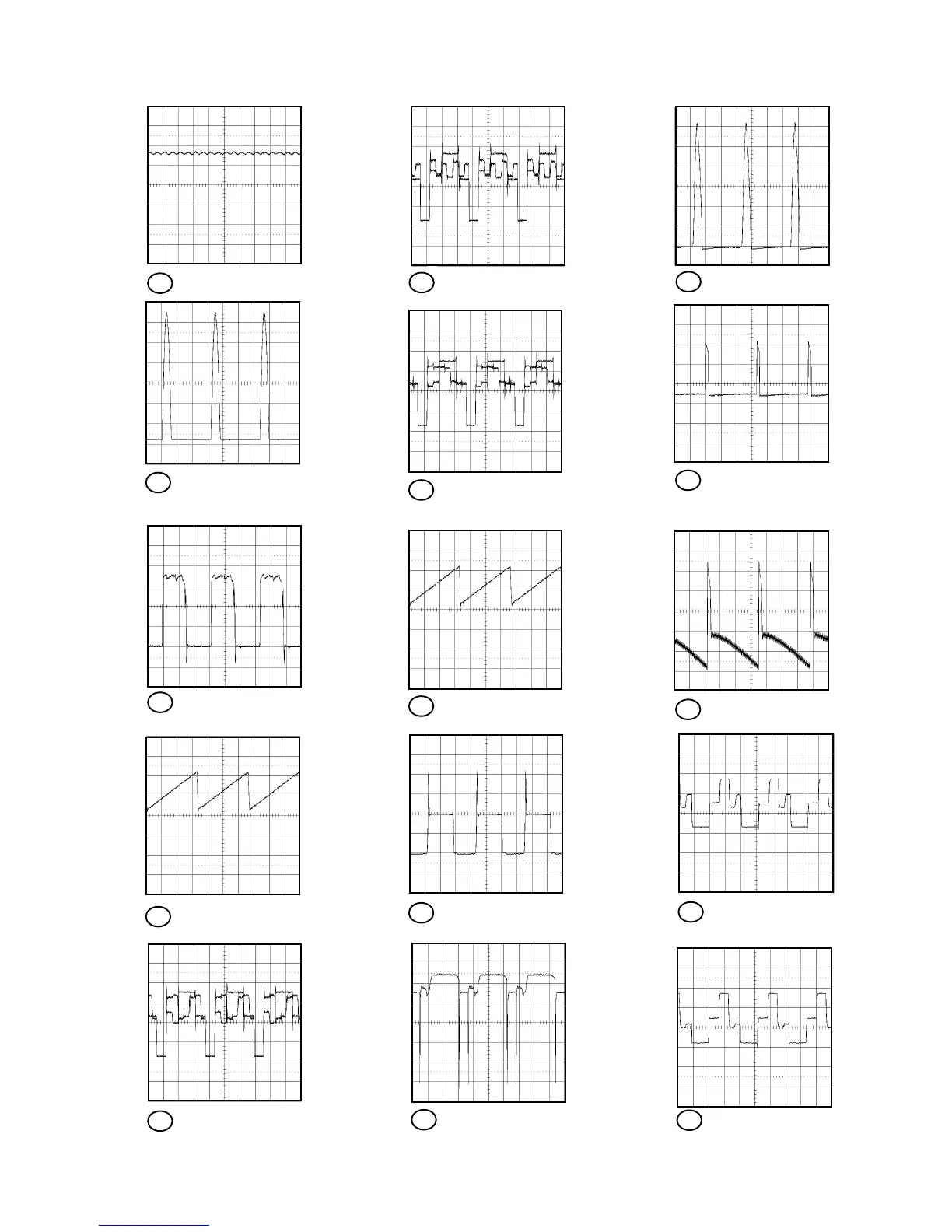

The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.
WAVEFORMS
3
0.5V 5ms/div
4
2
20V 20µs/div
MICON/CHROMA/TUNER
1
0.5V 2ms/div
5
1V 20µs/div
6
1V 20µs/div
1V 20µs/div7
DEFLECTION/CRT
8
0.5V 5ms/div
9
20V 20µs/div
10
2V 20µs/div
200V 20µs/div
11
10V 5ms/div12
15 50V 20µs/div
10V 5ms/div
13
50V 20µs/div
14
200mV 20µs/div
