ELECTRICAL ADJUSTMENTS
D-3
Fig. 2-3
100%
white 100%
2-15: TINT
1.
2.
3.
4.
5.
6.
7.
Receive the color bar pattern. (RF Input)
Using the remote control, set the brightness, contrast,
color and tint to normal position.
Connect the oscilloscope to TP024.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "TINT".
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes as straight line.
(Refer to Fig. 2-4)
Receive the video color bar pattern. (Audio Video Input)
Set to the AV mode. Then perform the above adjustments
2~5.

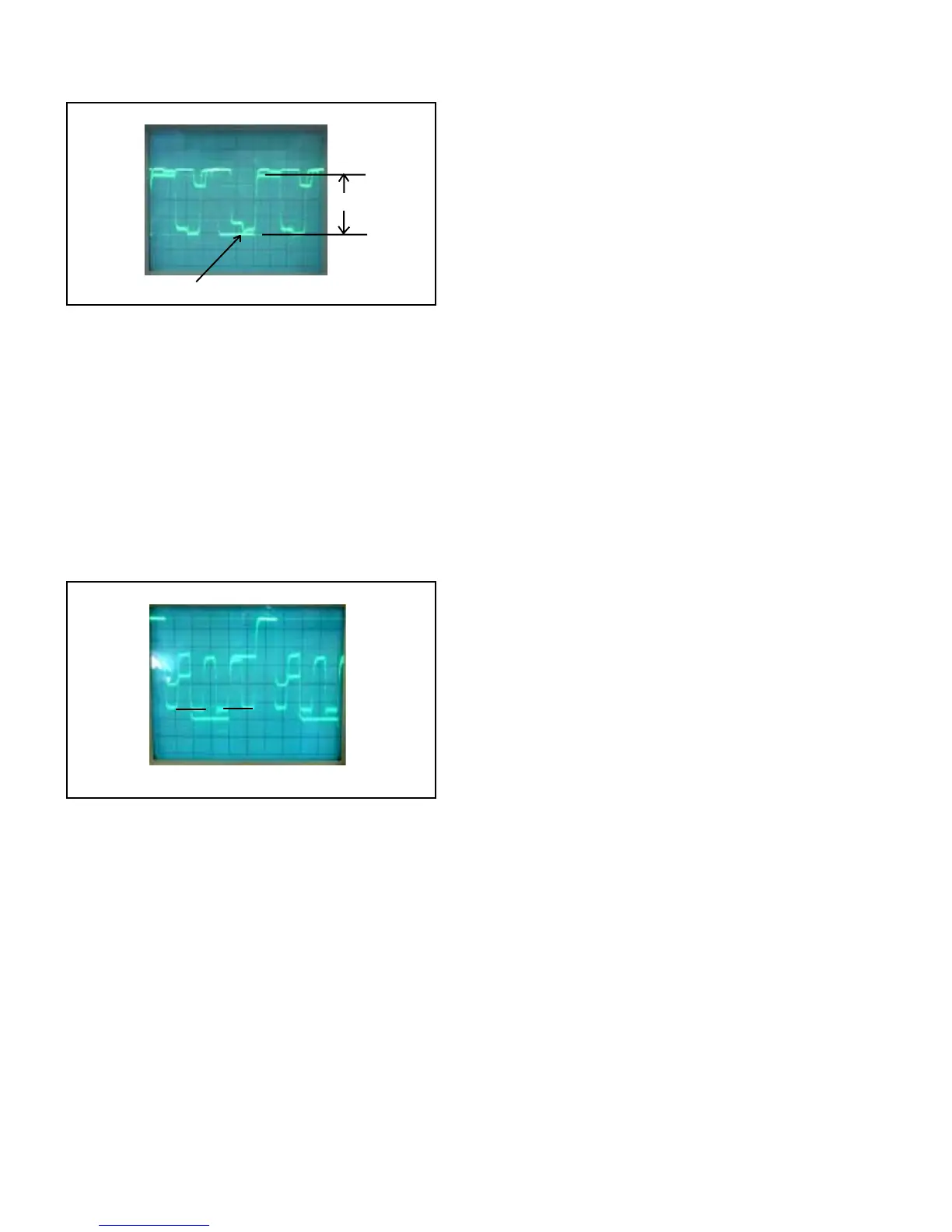

Fig. 2-4
Please check if the fixed values of the each adjustment
items are set correctly referring below.
2-16: Confirmation of Fixed Value (step No.)
NO.
04
07
14
15
16
18
20
21
23
24
28
29
30
FUNCTION
H VCO
V.SHIFT
BRIGHT MAX
BRIGHT MIN
CONT CENT
CONT MIN
COLOR MAX
COLOR MIN
SHARPNESS
FM.LVL
TEST MONO
TEST STEREO
X-RAY
RF
04
02
170
60
40
20
80
00
40
00
59
59
08
AV
04
02
170
60
40
20
80
00
40
00
59
59
08
“A”
“B”
To Next Page
