Connecting your TV
Connecting an HDMI or a DVI
device
• When turning on your electronic components, turn on
the TV first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off
the HDMI or DVI device first, and then the TV.
• This TV may not be compatible with features and/or
specifications that may be added in the future.
• Some early HDMI equipment may not work properly
with your latest HDMI TV, due to the adoption of a new
standard.
• This TV is only operable with L-PCM on 32/44. 1/48
kHz and 16/20/24 bits.
Connecting an HDMI or a DVI device
The HDMI input on your TV receives digital audio and
uncompressed digital video from an HDMI device or
uncompressed digital video from a DVI device.
This input is designed to accept HDCP programme
material in digital from EIA/CEA-861/861B compliant
consumer electronic devices (such as a set top box or
DVD player with HDMI or DVI output).
For acceptable video signal formats ( page 40).
The HDMI input is designed for best performance with
1080i high-definition video signals, but will also accept
and display VGA, SVGA, XGA, WXGA, SXGA, 480i,
480p, 576i, 576p, 720p, and 1080p signals.
• HDMI: High-Definition Multimedia Interface
• DVI: Digital Video Interface
• HDCP: High-bandwidth Digital Content Protection
• EIA/CEA-861/861B compliance covers the
transmission of uncompressed digital video with high-
bandwidth digital content protection, which is being
standardized for reception of high-definition video
signals. Because this is an evolving technology, it is
possible that some devices may not operate properly
with the TV.
• E-EDID: Enhanced-Extended Display Identification
Data
• L-PCM: Linear-Pulse Code Modulation

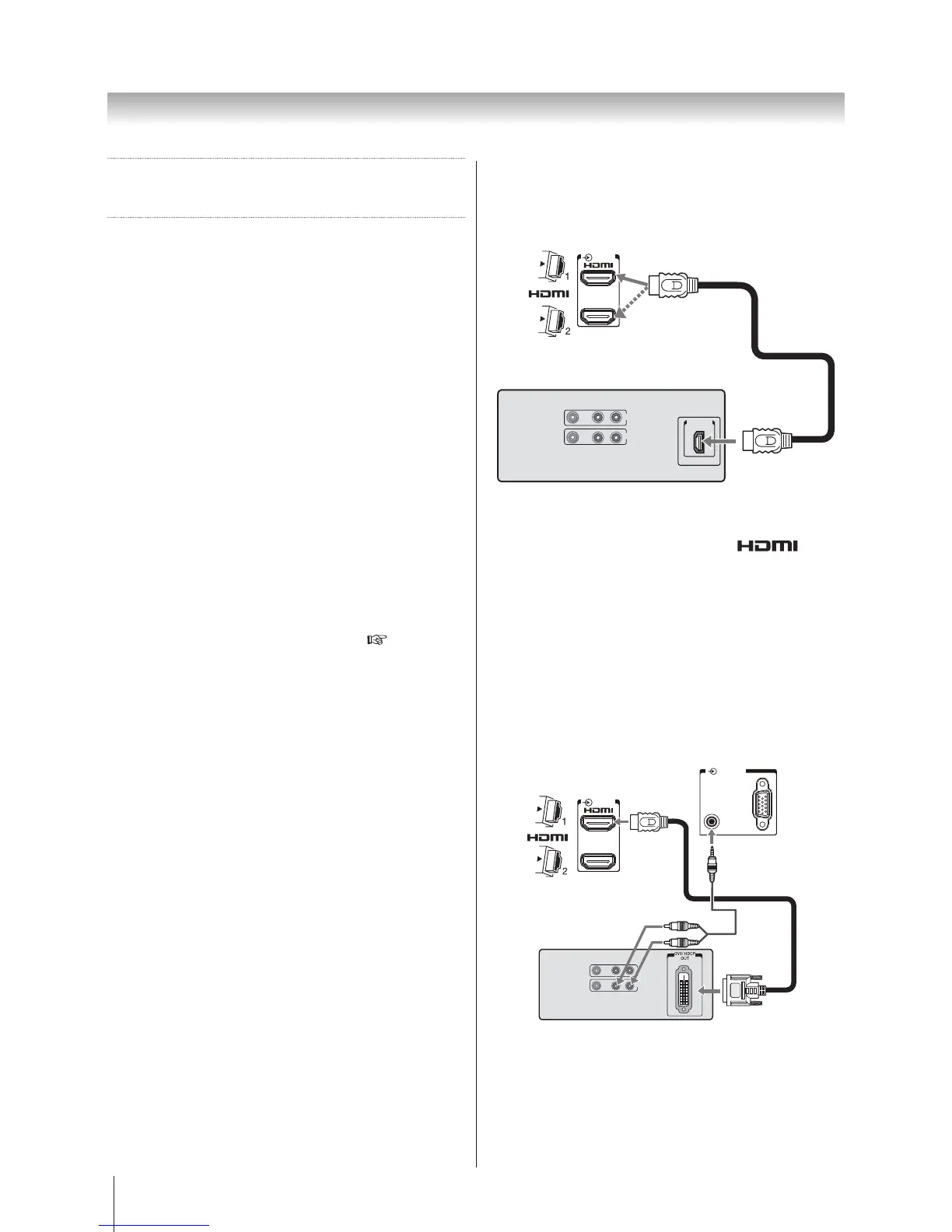

Connecting an HDMI device
One HDMI cable (type A connector)
HDMI 1/2
1
2
HDMI out
TV back view
HDMI device
For proper operation, it is recommended that you use a
short HDMI cable with the HDMI Logo
( )
.
HDMI cable transfers both video and audio.
Note:
It is possible that some HDMI device may not
operate properly with this TV.
Connecting a DVI device
One HDMI(type A connector)-to DVI adapter cable
and audio cables
HDMI 1/2
1
2
RGB/PC
PC / HDMI(1)
AUDIO
TV back view
HDMI device
HDMI (type A connector)-to-DVI adapter cable
For proper operation, the length of an HDMI-to-DVI
adapter cable should not exceed 3m. The recommended
length are 2 meters.
