- 4 -

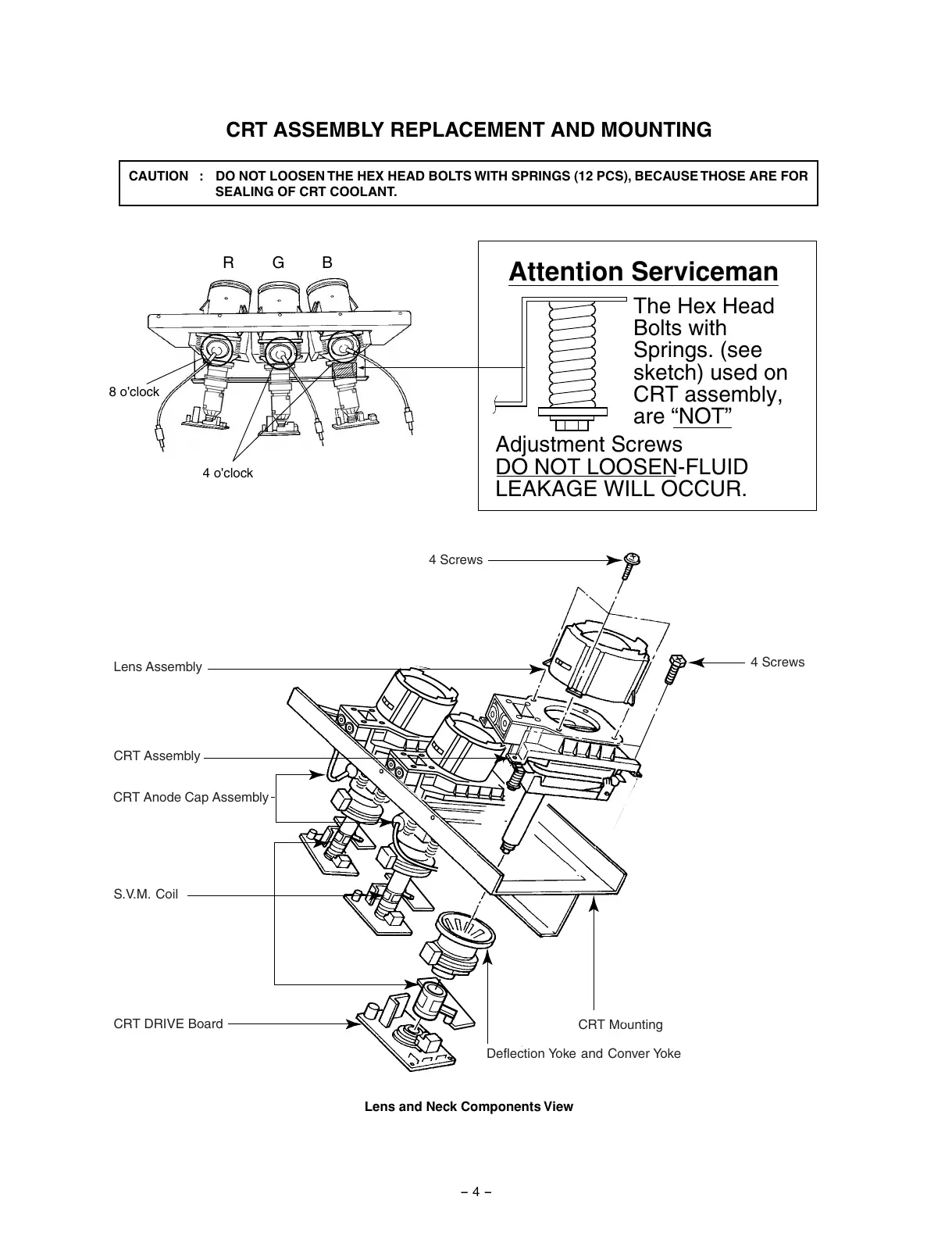

CRT ASSEMBLY REPLACEMENT AND MOUNTING
CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR
SEALING OF CRT COOLANT.
Lens and Neck Components View
4 Screws
CRT Anode Cap Assembly
S.V.M. Coil
CRT DRIVE Board
Lens Assembly
CRT Assembly
Deflection Yoke and Conver Yoke
CRT Mounting
4 Screws
Attention Serviceman
The Hex Head
Bolts with
Springs. (see
sketch) used on
CRT assembly,
are “NOT”
Adjustment Screws
DO NOT LOOSEN-FLUID
LEAKAGE WILL OCCUR.
8 o'clock
4 o'clock
RGB
