Video device connections
Composite video connection
Plug the included video cable’s yellow connector into the video-out connec-
tor on your video device. Plug the other yellow connector into the yellow
Video In connector on the projector. Plug the included audio adapter’s
white connector into the left audio out connector on your video device; plug
the audio adapter’s red connector into the right audio out connector on the
video device. Plug the included audio cable into the black connector on the
audio adapter. Plug the other end of the audio cable into the blue Audio In
connector on the projector.
Keep in mind that video output from composite connections are not as high
quality as S-video or component.
S-video connection
If your video device uses a round, four-prong S-video connector, plug an S-
video cable (sold separately) into the S-video connector on your video
device and into the S-video connector on the projector. Use the audio cable
and the audio adapter as described above.
Keep in mind that S-video delivers higher quality video output than com-
posite, but not as high quality video output as component.

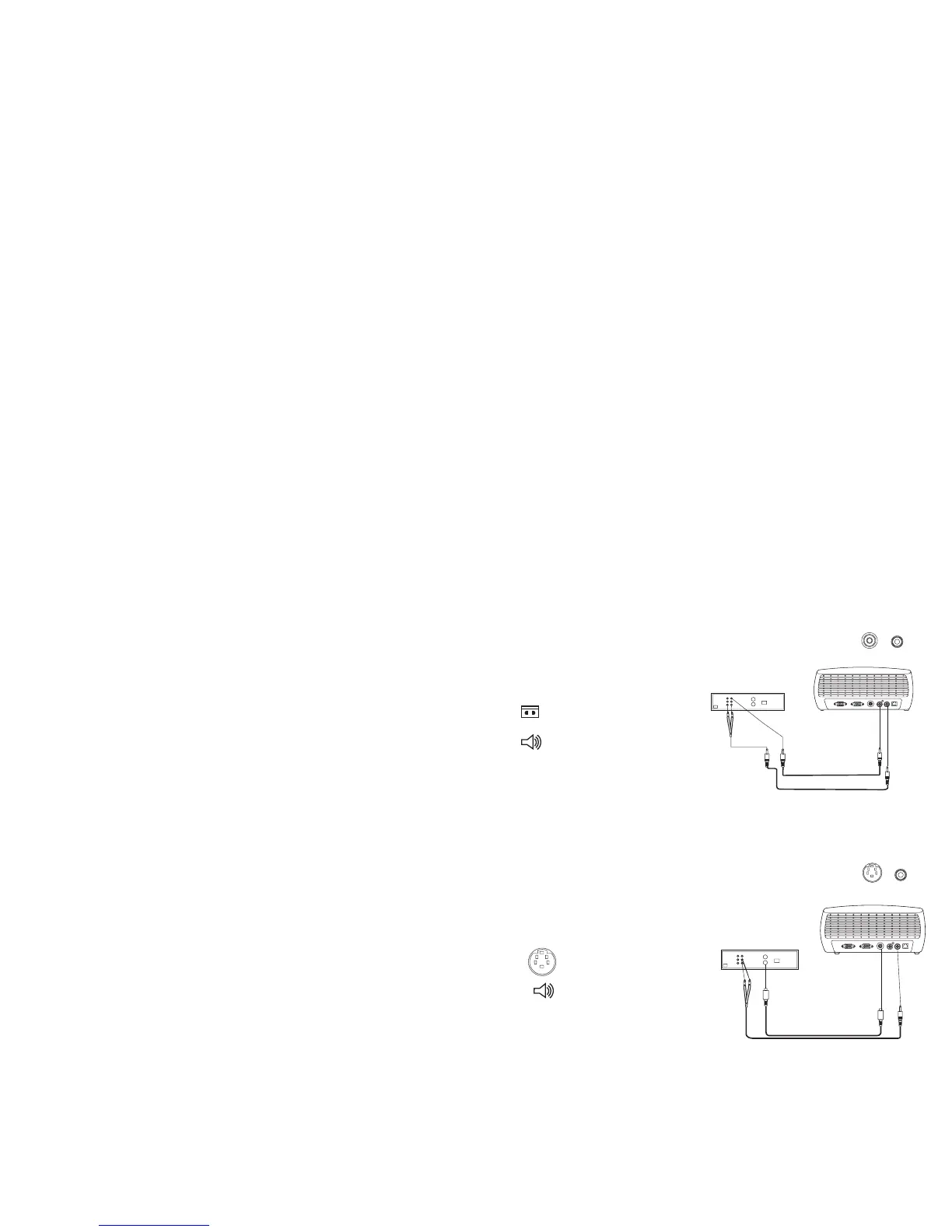

connect video cable and audio cable (via
the audio adapter)
connect S-video and audio cable (via
audio adapter)
