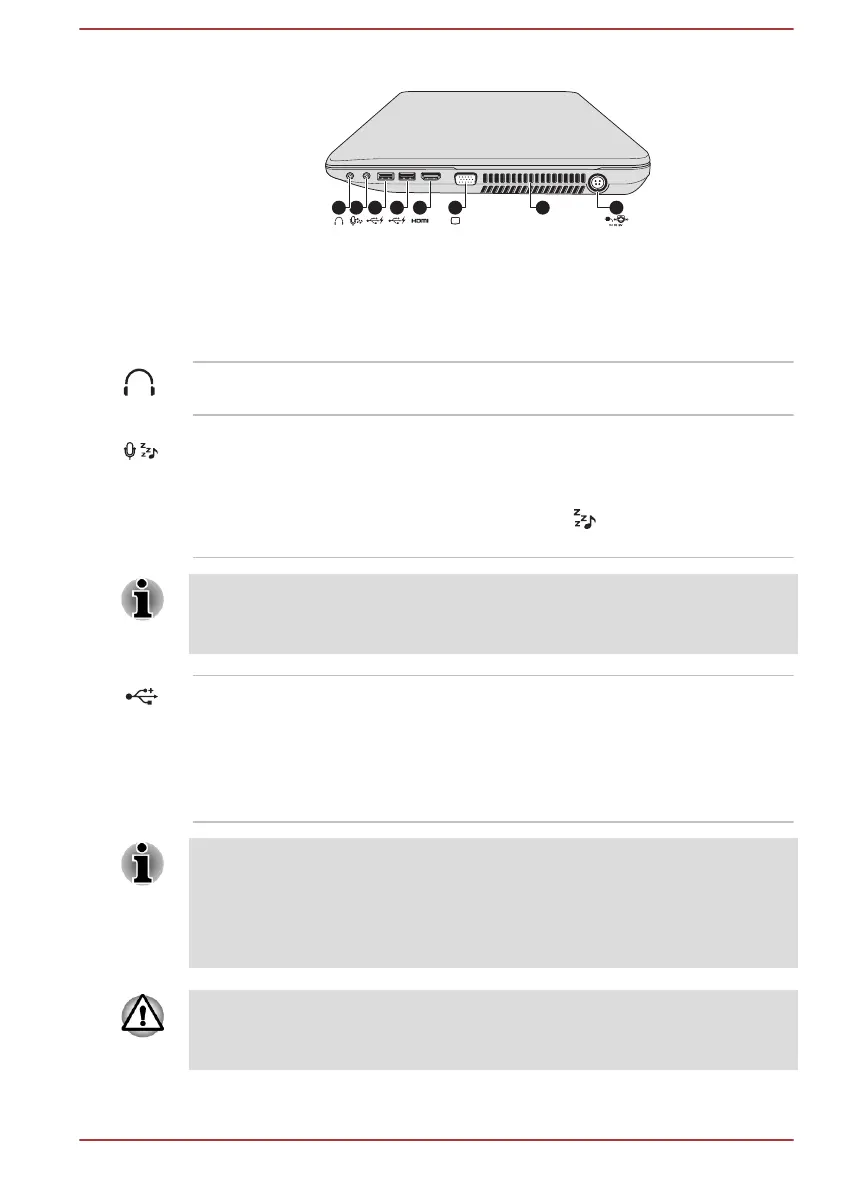

Figure 3-6 The right side of the computer (X70-A)
1. Headphone jack 5. HDMI out port
2. Microphone jack 6. External RGB monitor port
3. Universal Serial Bus (USB 3.0) port 7. Cooling vents
4. Universal Serial Bus (USB 3.0) port 8. DC IN 19V jack
Product appearance depends on the model you purchased.
Headphone jack A 3.5 mm mini headphone jack enables
connection of stereo headphones.
Microphone jack A 3.5 mm mini microphone jack enables
connection of a three-conductor mini jack for
stereo microphone input.
The jack with the icon
has Sleep and Music
function.
The integrated sound system provides support for the computer's internal
speakers and microphone, as well as allowing an external microphone and
headphones to be connected via the appropriate jacks.
Universal Serial Bus
(USB 3.0) port
Two Universal Serial Bus ports, which comply to
the USB 3.0 standard, are provided on the right
side of the computer.
The USB 3.0 port is compliant with USB 3.0
standard and backward compatible with USB 2.0
devices.
Please note that it is not possible to confirm the operation of all functions of
all USB devices that are available. Some functions associated with a
specific device might not operate properly.
USB 3.0 port (s) may work as USB 2.0 port (s) when operating in USB
Legacy Emulation mode.
Keep foreign metal objects, such as screws, staples and paper clips, out of
the USB port. Foreign metal objects can create a short circuit, which can
cause damage and fire, possibly resulting in serious injury.
User's Manual 3-5
To Next Page
