HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
External RGB monitor
port
This port provides 15-pin, analog RGB port.
Please refer to the External RGB monitor port pin
assignment section for information on external
RGB monitor port pin assignment. This port
allows you to connect an external RGB monitor
to the computer.
Cooling vents The cooling vents help the processor to avoid
overheating.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the
computer at the time of purchase - using the
wrong AC adaptor can cause damage to the
computer.
Back

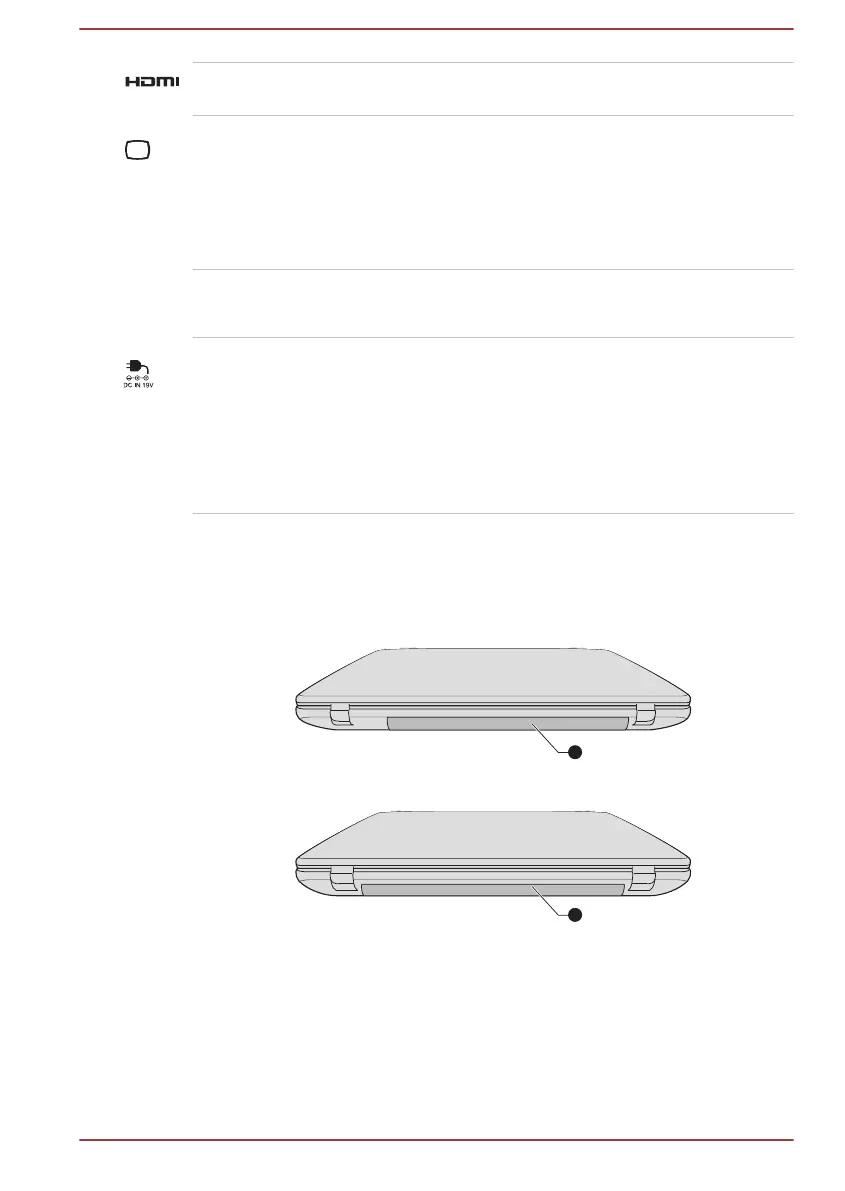

The following figure shows the back of the computer.
Figure 3-7 The back of the computer (P70-A)
Figure 3-8 The back of the computer (X70-A)
1. Battery pack
Product appearance depends on the model you purchased.
User's Manual 3-6
