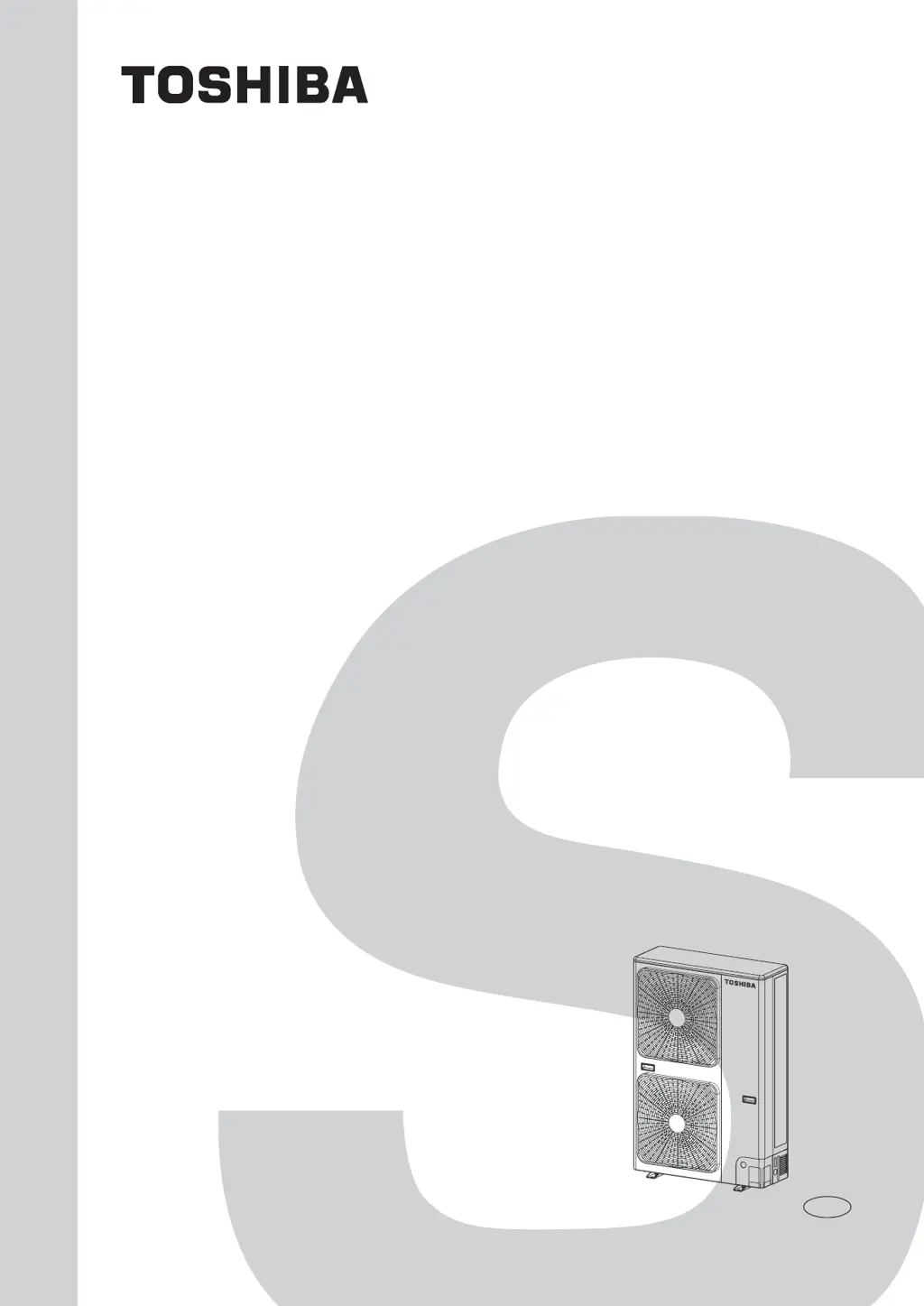

PRINTED IN JAPAN, Mar., 2019, TOMO
FILE No. A10-1902
Revision 1: Sep., 2019
Revision 2: Oct., 2019
SERVICE MANUAL
AIR-CONDITIONER
SPLIT TYPE
OUTDOOR UNIT
<SUPER DIGITAL INVERTER>
RAV-GP1101AT8-E RAV-GP1101AT8-TR
RAV-GP1101AT8J-E RAV-GP1101AT8J-TR
RAV-GP1401AT8-E RAV-GP1401AT8-TR
RAV-GP1401AT8J-E RAV-GP1401AT8J-TR
RAV-GP1601AT8-E RAV-GP1601AT8-TR
RAV-GP1601AT8J-E RAV-GP1601AT8J-TR

Table of Contents

Questions and Answers

  • D
    Donald PerezAug 4, 2025
    Why is the compressor not operating in my Toshiba RAV-GP1101AT8-E?
    • F
      fhillAug 5, 2025
      The compressor of your Toshiba Air Conditioner might not be working due to several reasons. It could be under the control of a 3-minute protective function, so check that function. Also, verify if the unit is in standby even though the room temperature is at the set level. Ensure it's not in timer or fan mode. Check for any overflow issues in the indoor unit. Finally, confirm that the remote controller isn't set to 'heating' when the outside temperature is high.
  • C
    Charles HouseAug 9, 2025
    What to do if the ON/OFF operation cannot be performed from the remote controller of my Toshiba RAV-GP1101AT8-E Air Conditioner?
    • D
      Dustin MedinaAug 10, 2025
      If you can't turn your Toshiba Air Conditioner on or off with the remote, it might be controlled by a central control system, so check for that. Also, if an automatic address is being set up, wait approximately 5 minutes after powering on. Lastly, see if a test run is being performed by operation of the outdoor unit.
  • M
    Mr. Gilbert WhiteAug 16, 2025
    Why is the outdoor fan of my Toshiba RAV-GP1101AT8-E Air Conditioner not working or changing speed?
    • C
      Crystal DeckerAug 16, 2025
      The outdoor fan of your Toshiba Air Conditioner may not operate or its speed might change due to high-temperature release operation control during heating, so check the operation control. Also, verify the cooling operation control during low outdoor temperatures in cooling mode. Lastly, see if defrost operation is active.
  • G
    Gina Strickland MDAug 22, 2025
    Why is the indoor fan of my Toshiba Air Conditioner not operating?
    • J
      Jeremy FloresAug 22, 2025
      The indoor fan of your Toshiba Air Conditioner might not be working because the cool air discharge preventive function is active during 'heating'. Verify the function controlling the indoor fan.
  • A
    Amanda RuizAug 28, 2025
    Why is the LED for the indoor and outdoor communication not flashing on my Toshiba Air Conditioner?
    • U
      uandrewsAug 28, 2025
      The LED for indoor and outdoor communication on your Toshiba Air Conditioner might not be flashing because the standby power saving operation control is working. Inspect the standby power saving control.

Summary

Precaution for Safety

4. WIRING DIAGRAM

6. REFRIGERANT R32

6-1. Safety During Installation;Servicing

Safety precautions for R32 refrigerant during installation and servicing.

6-2. Refrigerant Piping Installation

Procedures and considerations for installing refrigerant piping.

6-4. Recharging of Refrigerant

Steps for recharging the refrigerant.

6-8. General Safety Precautions for R32 Refrigerant

General safety measures for handling R32 refrigerant.

7. CIRCUIT CONFIGURATION AND CONTROL SPECIFICATIONS

8. TROUBLESHOOTING

8-1. Summary of Troubleshooting

General summary of troubleshooting procedures and common issues.

8-2. Diagnostic Procedure for Each Check Code (Outdoor Unit)

Diagnostic steps for specific check codes related to the outdoor unit.

9. SETUP AT LOCAL SITE AND OTHERS

10. ADDRESS SETUP

10-1. Address Setup Procedure

Step-by-step guide for setting unit addresses.

12. HOW TO EXCHANGE COMPRESSOR
