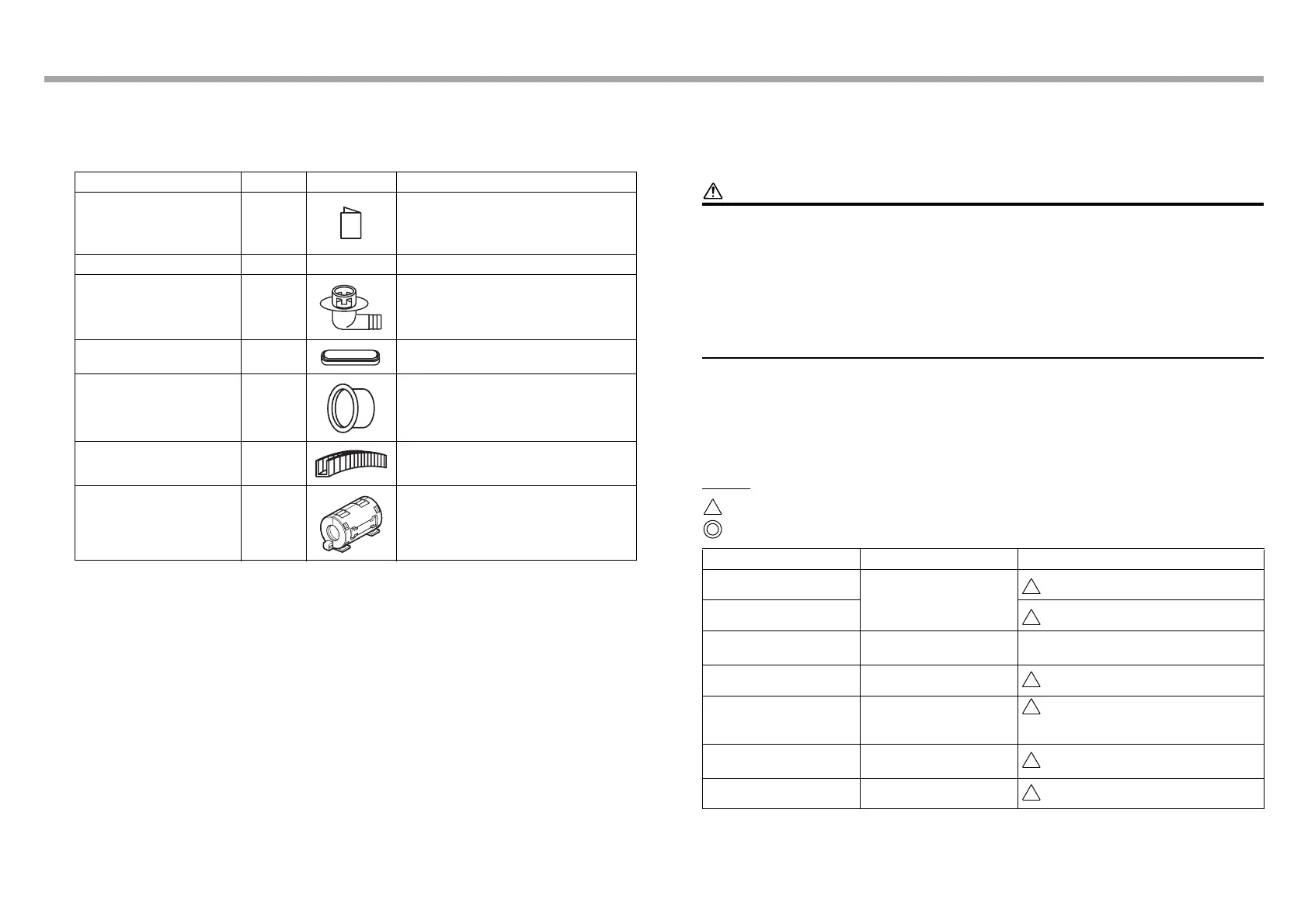

2 ACCESSORY PARTS
Part name Q’ty Shape Usage
Installation manual 1
Hand this directly to the customer.
(For other languages that do not appear in this
Installation Manual, please refer to the enclosed
CD-R.)
CD-ROM 1 — Installation manual
Drain nipple 1
Waterproof rubber cap 5
Type A (4 pcs.)
Type B (1 pc.)
Protective bush 1 For protecting wires (pipe cover)
Guard material for passage part 1 For protecting passage part (pipe cover)
Clamp filter 1
For conforming to EMC standards (for GM80
type)
3 INSTALLATION OF R32 REFRIGERANT AIR
CONDITIONER
CAUTION
R32 refrigerant air conditioner installation
• This air conditioner adopts the HFC refrigerant (R32) which does not destroy ozone layer.
Therefore, during installation work, make sure that water, dust, former refrigerant, or refrigerant oil does not enter the
R32 refrigerant air conditioner cycle. To prevent mixing of refrigerant or refrigerant oil, the sizes of connecting sections
of charge port on the main unit and installation tools are different from those of the conventional refrigerant units.
Accordingly, special tools are required for the R32 or R410A refrigerant units. For connecting pipes, use new and
clean piping materials with high pressure fittings made for the R32 or R410A only, so that water and/or dust does not
enter.
• When using existing piping, refer to “15 APPENDIX - [1] Existing piping”.
 Required Tools/Equipment and Precautions for Use
Prepare the tools and equipment listed in the following table before starting the installation work.
Newly prepared tools and equipment must be used exclusively.
Legend
: Conventional tools (R32 or R410A)
: Prepared newly (Use for R32 only)
Tools / equipment Use How to use tools / equipment
Gauge manifold
Vacuuming / charging
refrigerant and operation check
Conventional tools (R410A)
Charging hose
Conventional tools (R410A)
Charging cylinder Can not be used
Unusable (Use the electronic refrigerant charging
scale)
Gas leak detector Charging refrigerant Conventional tools (R32 or R410A)
Vacuum pump Vacuum drying
Conventional tools (R32 or R410A)
Usable if the backflow prevention adapter is
installed.
Vacuum pump with backflow
prevention function
Vacuum drying Conventional tools (R32 or R410A)
Flare tool Flare machining of pipes Conventional tools (R410A)
EN-147 EN-148
