Chapter 1: Introduction

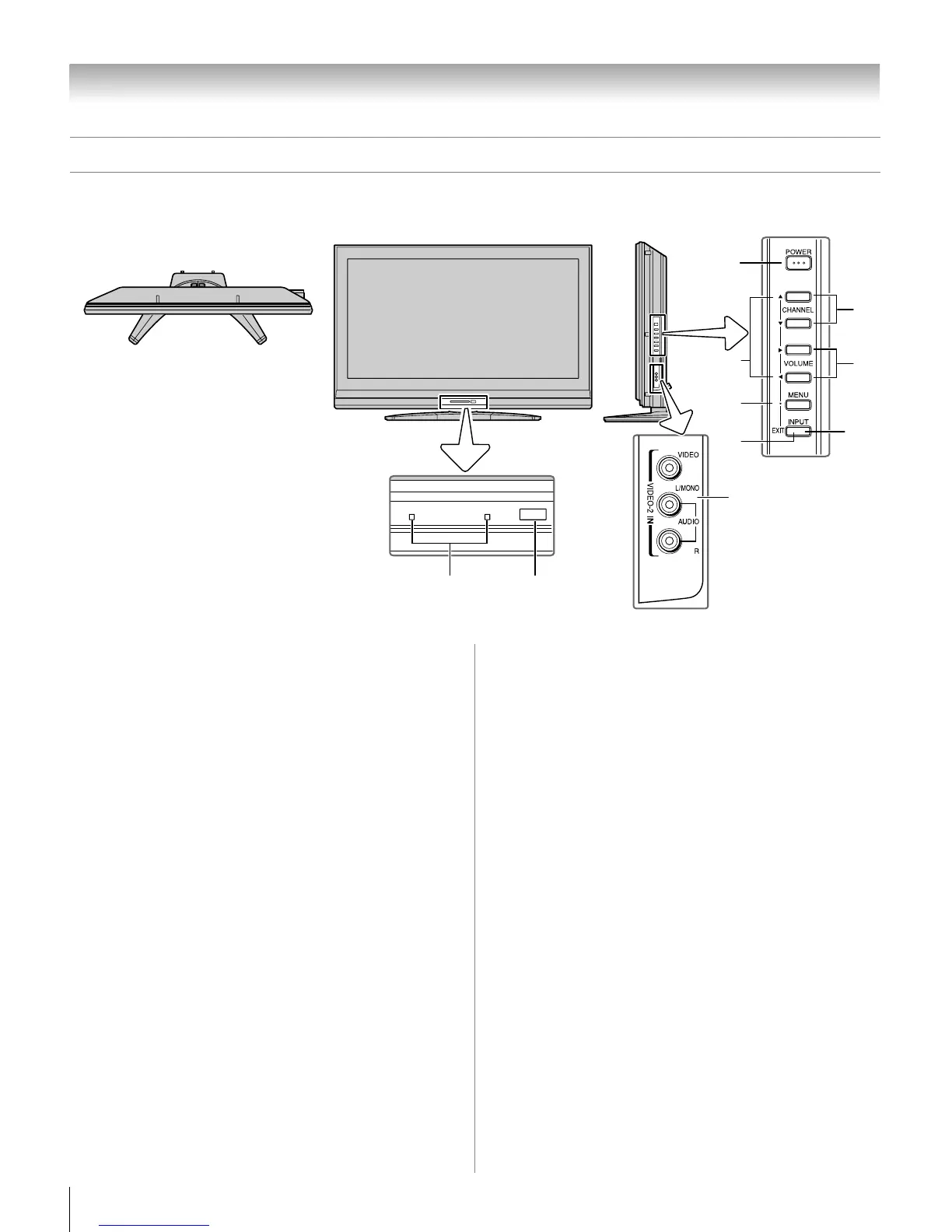

TV front and side panel controls and connections
Model 42HL67 is used in this manual for illustration purposes.
12
8
5
4
6
7
9
10
3
TV front
POWER
TV top
Control panel
Right side panel
1 Green and Yellow LEDs
Green = Power indicator
Yellow = Power-On Mode indicator (- “Selecting the
Power-On Mode” on page 34)
See “LED indications” on page 60 for additional
information.
2 Remote sensor — Point the remote control toward this
remote sensor (- “Remote control effective range” on
page 20).
3 VIDEO-2 IN — The side panel A/V connections are
referred to as “VIDEO 2” and include standard A/V
connections.
4 POWER — Press to turn the TV on and off.
If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn off the
TV, press and hold the POWER button on the TV control
panel for 5 or more seconds to reset the TV.
5 ARROWS BbC c — When a menu is on-screen, these
buttons function as up/down/left/right menu navigation
buttons.
6 MENU (ENTER) — Press to access the menu system
(- pages 27–28). When a menu is on-screen, the MENU
button on the TV’s control panel functions as the ENTER
button.
7 EXIT — Press to instantly close an on-screen menu.
8 CHANNEL Bb — When no menu is on-screen, these
buttons change the channel (programmed channels only;
- page 30).
9 VOLUME C c — These buttons adjust the volume level.
10 INPUT — Repeatedly press to change the source you are
viewing (ANT, VIDEO 1, VIDEO 2, ColorStream
HD1, ColorStream HD2, HDMI 1, HDMI 2, HDMI 3,
PC).
26HL67_EN.book Page 10 Tuesday, April 17, 2007 11:52 AM
