Chapter 1: Introduction

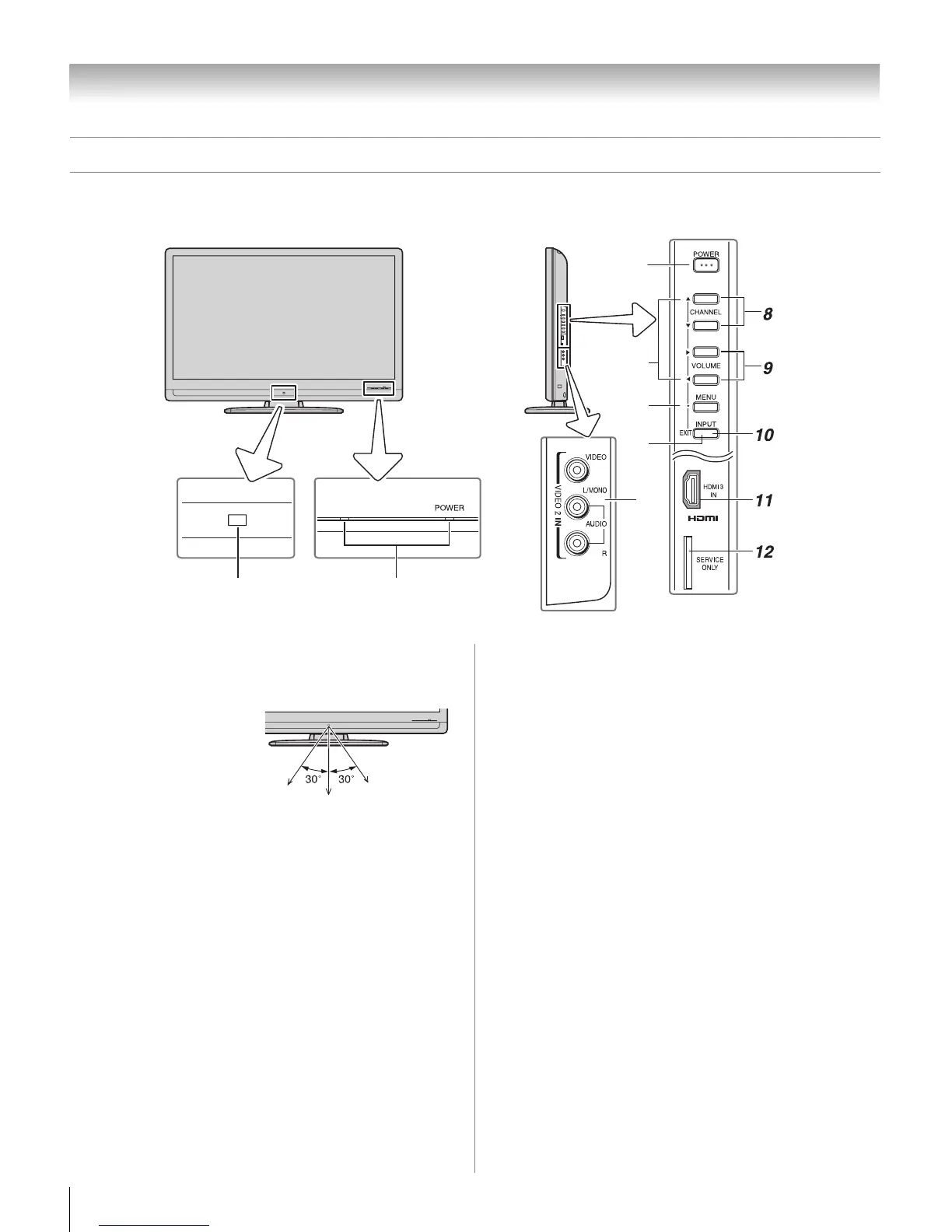

TV front and side panel controls and connections
Model 32CV510U is used in this manual for illustration purposes.
21
5
4
6
7
3
Control panel
Right side panel
TV front
1 Remote sensor — Point the remote control toward this
remote sensor.
Effective range:
2 Green and Yellow LEDs
Green = Power indicator
Yellow = Power-On Mode indicator (- “Selecting the
Power-On Mode” on page 33)
See “LED indications” on page 59 for additional
information.
3 VIDEO 2 IN — The side panel A/V connections are
referred to as “VIDEO 2” and include standard A/V
connections.
4 POWER — Press to turn the TV on and off.
If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn off the
TV, press and hold the POWER button on the TV control
panel for 5 or more seconds to reset the TV.
5 ARROWS BbC c — When a menu is on-screen, these
buttons function as up/down/left/right menu navigation
buttons.
6 MENU (ENTER) — Press to access the menu system
(- page 26). When a menu is on-screen, the MENU
button on the TV’s control panel functions as the ENTER
button.
7 EXIT — Press to instantly close an on-screen menu.
8 CHANNEL Bb — When no menu is on-screen, these
buttons change the channel (programmed channels only;
- page 29).
9 VOLUME C c — These buttons adjust the volume level.
10 INPUT — Repeatedly press to change the source you are
viewing (ANT/CABLE, VIDEO 1, VIDEO 2,
ColorStream HD1, ColorStream HD2, HDMI 1,
HDMI 2, HDMI 3, PC).
11 HDMI
™
IN — High-Definition Multimedia Interface
(HDMI 3) input receives digital audio and uncompressed
digital video from an HDMI device or uncompressed
digital video from a DVI device. HDMI connection is
necessary to receive 1080p signals.
12 Service port — For service use only. Used for updating
the television’s firmware.
16.4 ft (5m)
