Toshiba TC Series User Manual

TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
55

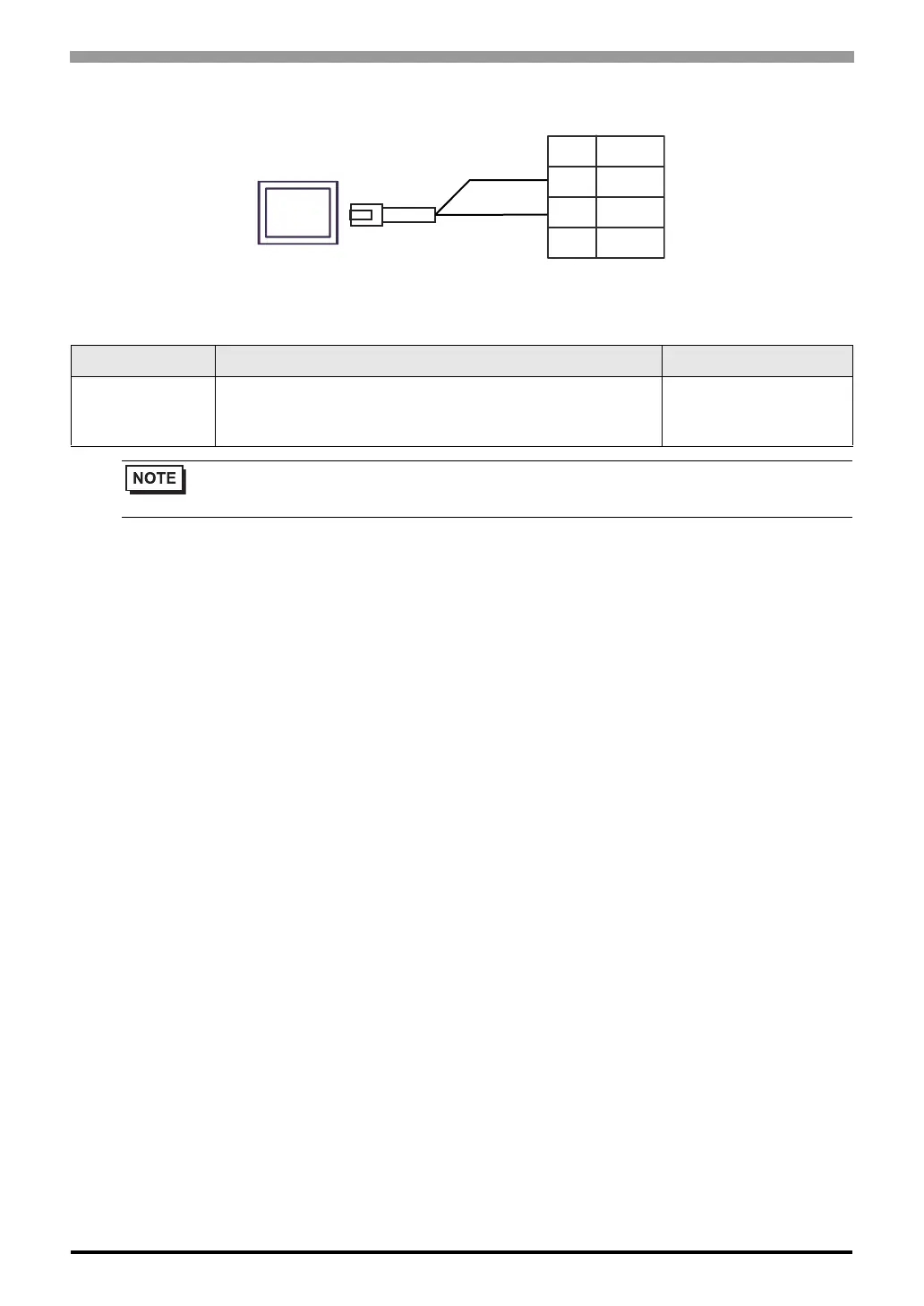

4J)
Legend Name Notes
(1)
RJ45 RS-485 Cable (5m) by Pro-face
PFXZLMCBRJR81
• To insert termination resistance of 120Ω on the External Device, turn on DIP Switch SW2-7.
• For the External Device connector, use the XH connector (XHP-6) by J.S.T. Mfg.
Signal name
Pin
1
2
6
A
B
FG
Display
External Device side
D0
D1
(1)
