Toshiba TC Series User Manual

TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
71
6J)

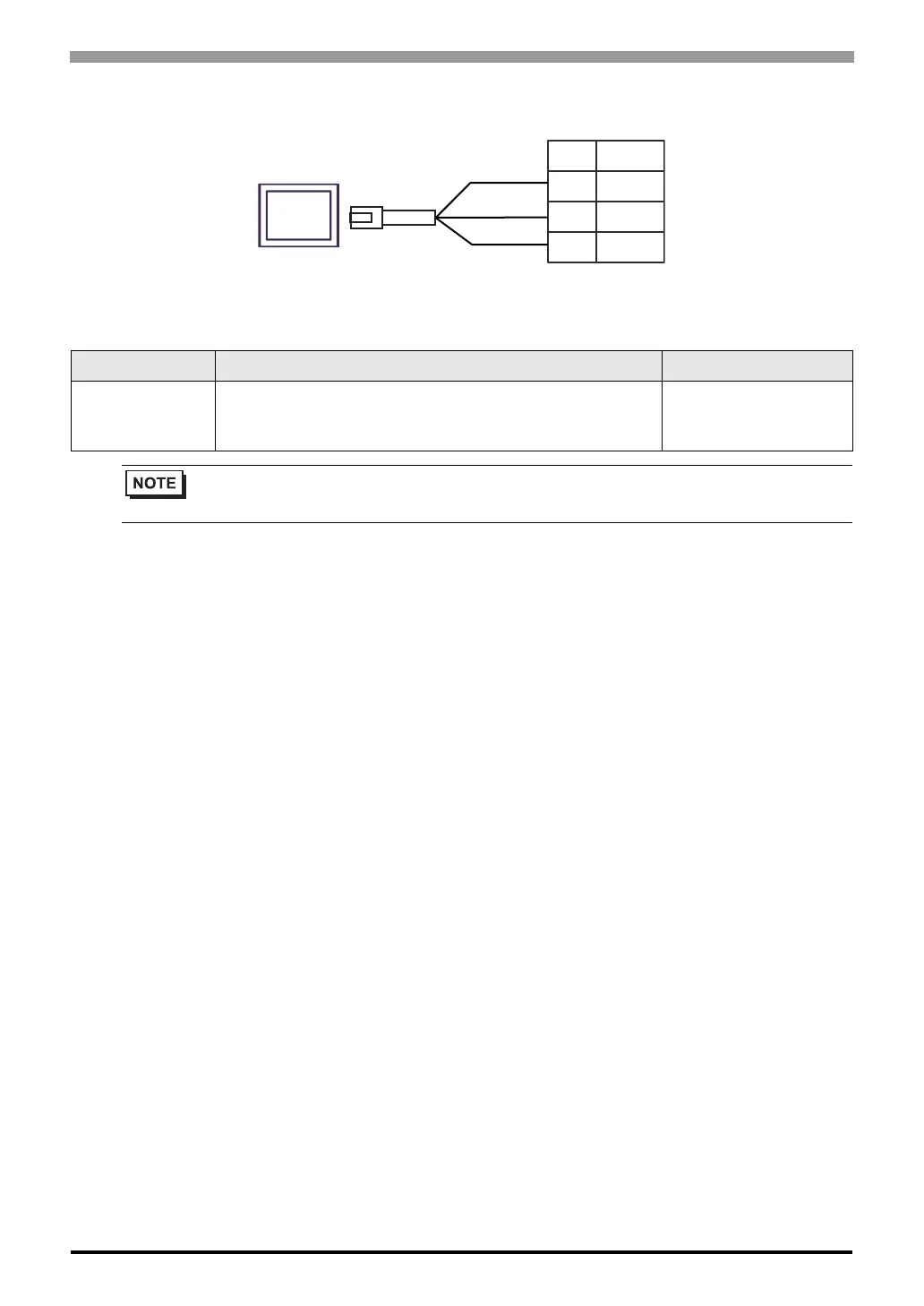

Legend Name Notes
(1)
RJ45 RS-485 Cable (5m) by Pro-face
PFXZLMCBRJR81
• Termination resistance of 120Ω is built into the External Device.
• For the External Device connector, use the XA connector (XAP-03V-1) by J.S.T. Mfg.
Signal name
Pin
1
2
3
A
B
SG
Display
External Device side
GND
D0
D1
(1)
