6-2-3. Setting Relay CH and Air Conditioning Control Data
The following items can be set for air conditioning control data.
• On/OFF
• Operating mode
• Set temperature
• Fan speed
• Disabling of remote control (ON/OFF only)
Each central control address (1 to 64) can be set individually, and all addresses (1 to 64) can also be set collectively
with the All button. However, the All button cannot be used for setting set temperature and fan speed. While setting
of an item (e.g. operating mode HEAT) is made for all addresses, if the setting of the same item is made for an
address (e.g. address 10), an error occurs.
If no data is set for both Relay CH and air conditioning control data, an error occurs.
Up to 30 settings can be made for air conditioning control data. If excess settings are made, an error occurs.
For each central control address, set temperature and fan speed are treated as one air conditioning control data.

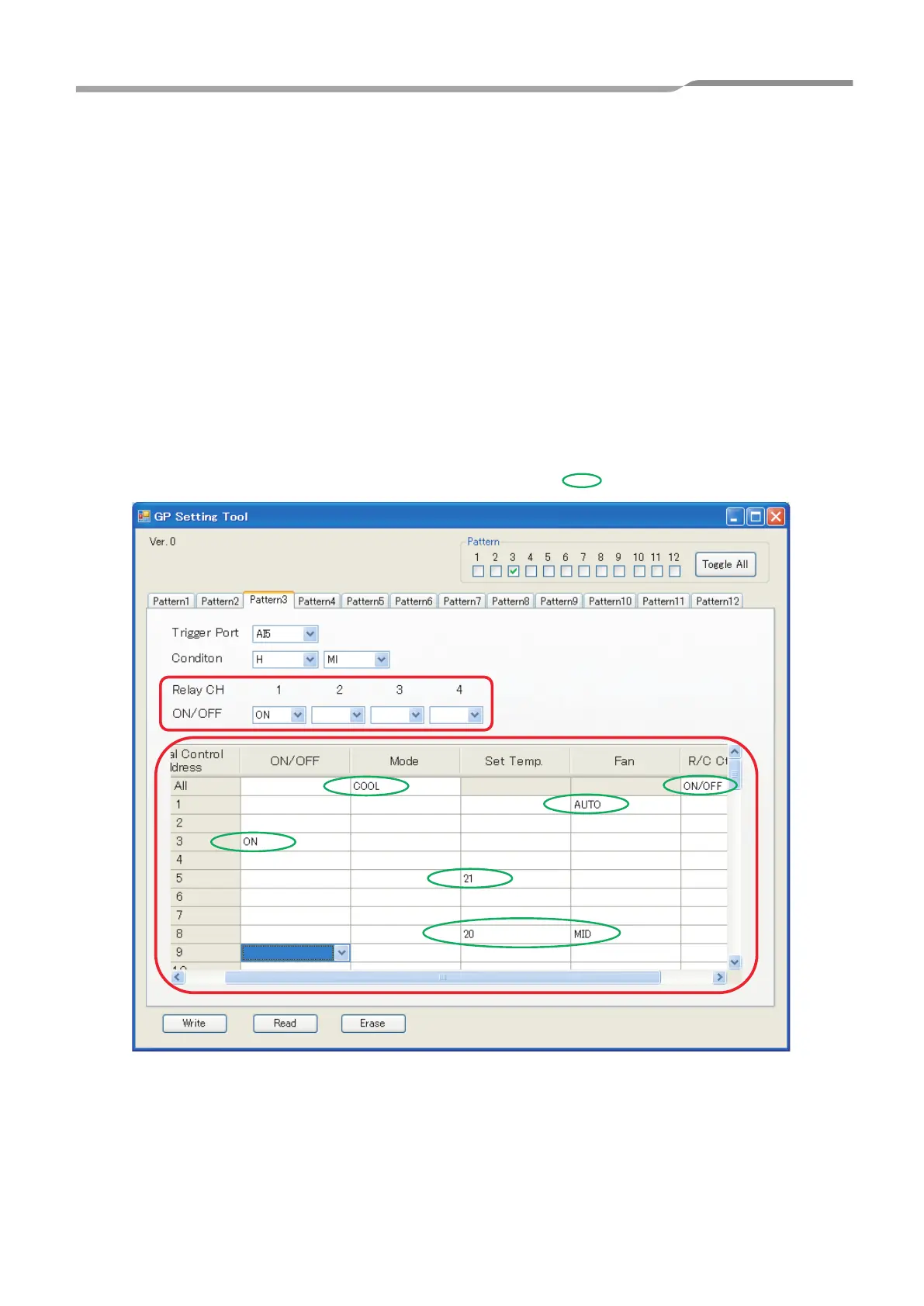

Example) In the case of the following window, there are six settings as is one air conditioning control data.
