Overview of the central controller
* In order to mount the central controller flush with the wall, an opening
measuring 128 mm x 128 mm is necessary.
116
47
15
13
160
148
6
(6)
121
160
148
6
(6)
121
115
69
21
128
80
128
80
36
47
13

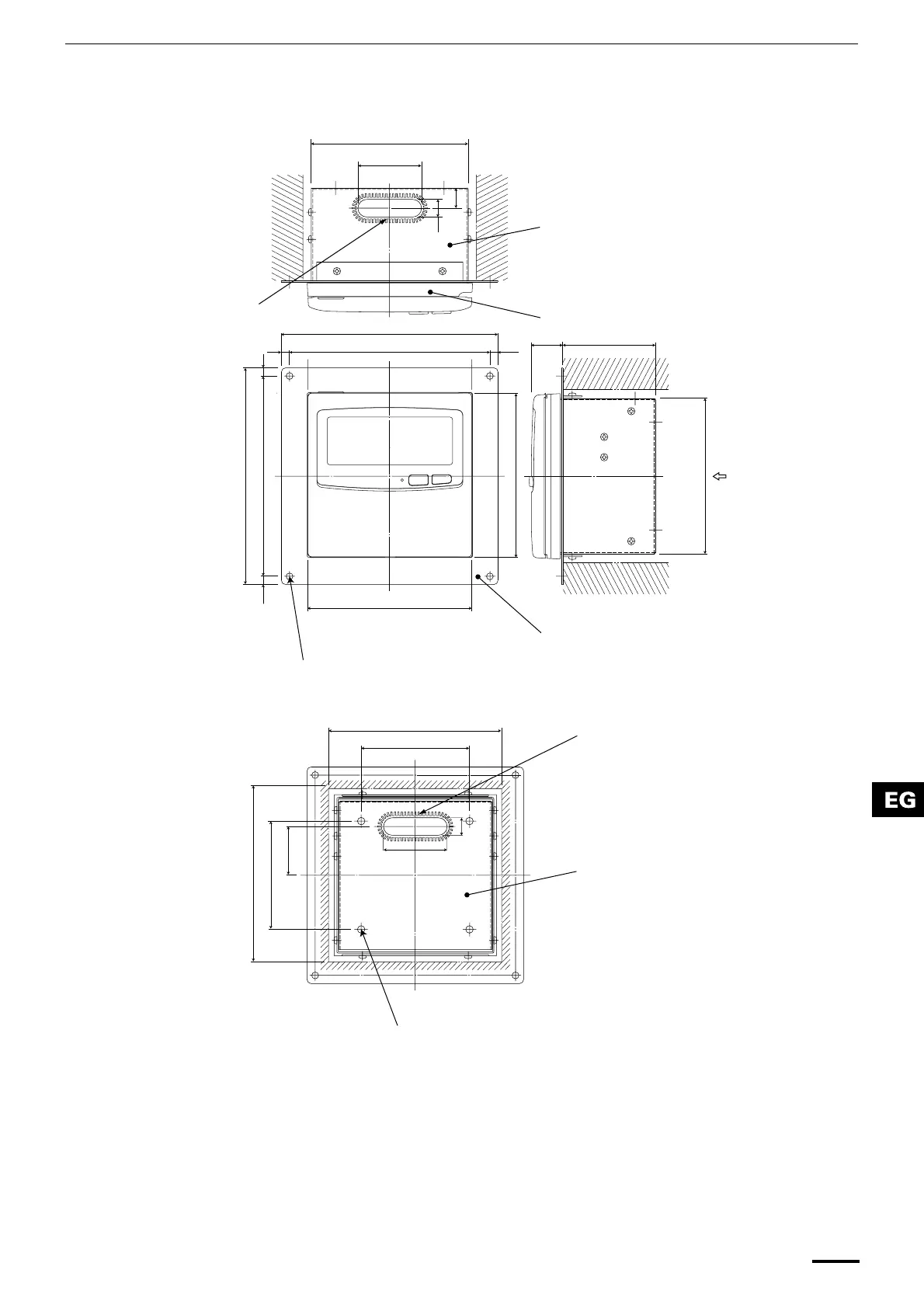

Fig. 1
Electrical component box
Control unit
Hole for electrical
wiring
Unit: mm
Mounting plate
(for flush mounting)
4-Ø 5 diameter holes
(for mounting)
Hole for electrical wiring
Rear plate
4-Ø 5.5 diameter holes
(for mounting)
Z
Z-view (back side)
OI-607-05EG
