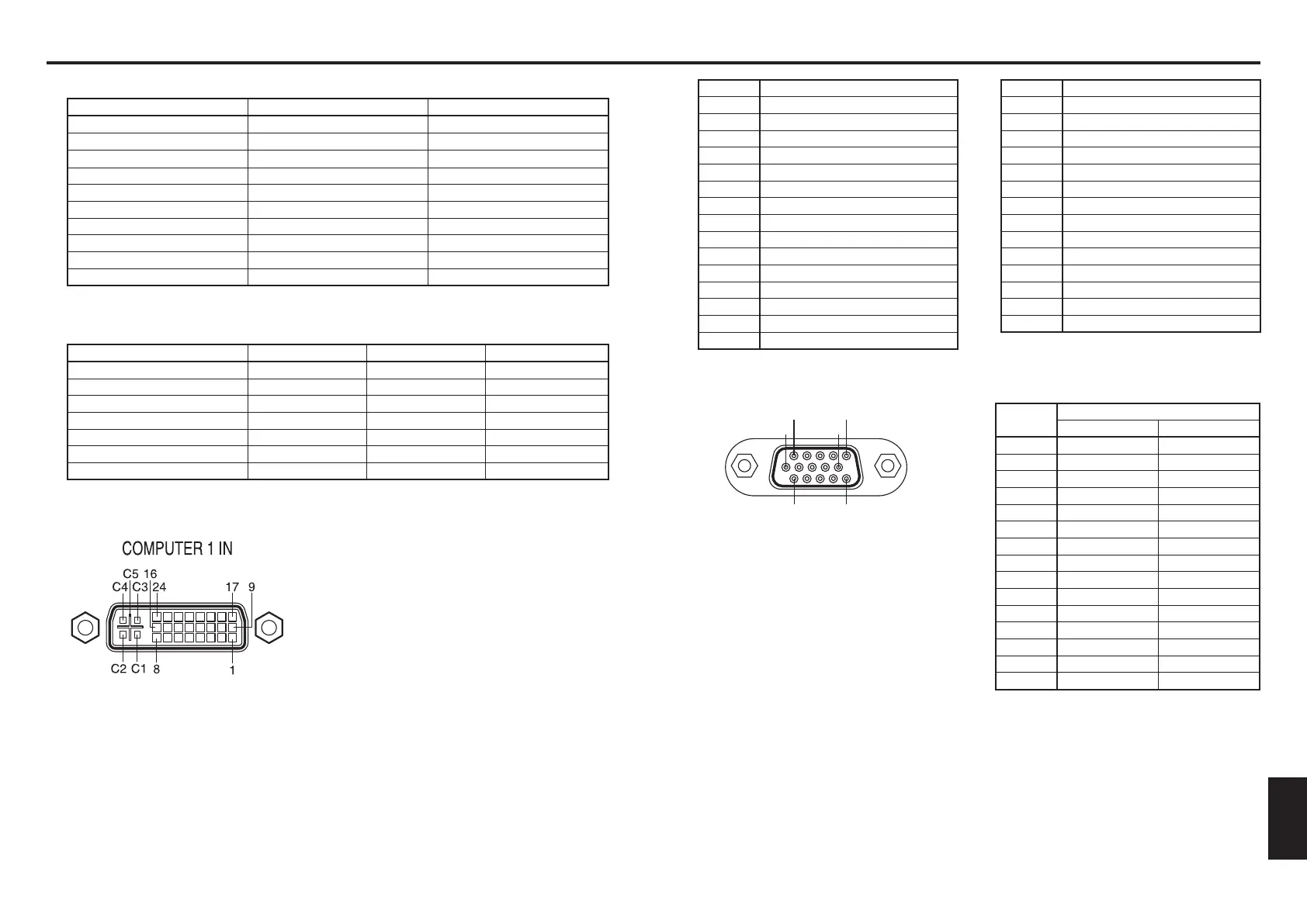

List of supported signals (Component signals)
Signal format fh(kHz) fv(Hz)
480i(525i)@60Hz
*
15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz
*
15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz 33.75 60.00
1080i(1125i)@50Hz 28.13 50.00
1080p(1125p)@60Hz 67.50 60.00
1080p(1125p)@50Hz 56.25 50.00
* DVI digital input is not supported.
List of supported signals (Video, S-Video signals)
Video mode fh(kHz) fv(Hz) fsc(MHz)
NTSC 15.73 60 3.58
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43
Pin assignment of DVI-I terminal
■
■
■
Analog input signal
Analog RGB input
RGB signals: 0.7 V (p-p) 75
:
Horizontal sync signal: TTL level (Pos/neg polarity)
Vertical sync signal: TTL level (Pos/neg polarity)
Y/PB/PR input
Y signal: 1.0 V (p-p) 75
:
P
B/PR signals: 0.7 V (p-p) 75
:
•
•
DVI digital & analog connector
Specifi cations (Continued)
Pin assignment of COMPUTER 2 IN & MONITOR terminals
Pin No.
Pin description
During RGB input During Y/PB/PR input
1 Video signal (R) Color difference signal (PR)
2 Video signal (G) Luminance signal (Y)
3 Video signal (B) Color difference signal (PB)
4 GND
*
5 GND
*
6 GND(R) GND(P
R)
7 GND(G) GND(Y)
8 GND(B) GND(P
B)
9 N.C
*
10 GND
*
11 GND
*
12 N.C
*
13
Horizontal sync signal
*
14
Vertical sync signal
*
15 N.C
*
*
Do not connect anything.
■
Input Signal
RGB input
RGB signals: 0.7 V (p-p) 75
:
Horizontal sync signal: TTL level (Pos/neg polarity)
Vertical sync signal: TTL level (Pos/neg polarity)
Y/PB/PR input
Y signal: 1.0 V (p-p) 75
:
P
B/PR signals: 0.7 V (p-p) 75
:
•
•
Mini D sub 15 Pin connector
51
10
1511
6
Pin No. Pin description Pin No. Pin description
1 T.M.D.S. data 2 –

16 Hot plug detection
2 T.M.D.S. data 2 + 17 T.M.D.S. data 0 –
3 T.M.D.S. data 2/4 shielded 18 T.M.D.S. data 0 +
4 T.M.D.S. data 4 – (N.C) 19 T.M.D.S. data 0/5 shielded
5 T.M.D.S. data 4 + (N.C) 20 T.M.D.S. data 5 – (N.C)
6 DDC clock 21 T.M.D.S. data 5 + (N.C)
7 DDC data 22 T.M.D.S. clock shielded
8 Analog vertical sync signal 23 T.M.D.S. clock +
9 T.M.D.S. data 1 – 24 T.M.D.S. clock –
10 T.M.D.S. data 1 + C1 Analog video signal (R/P
R
)
11 T.M.D.S. data 1/3 shielded C2 Analog video signal (G/Y)
12 T.M.D.S. data 3 – (N.C) C3 Analog video signal (B/P
B
)
13 T.M.D.S. data 3 + (N.C) C4 Analog horizontal sync signal
14 +5 V power source C5 Analog GND (R/P
R
, G/Y, B/P
B
)
15 GND(+5 V, H Sync & V Sync)
