4-8
Toshiba
Disassembly and Reassembly

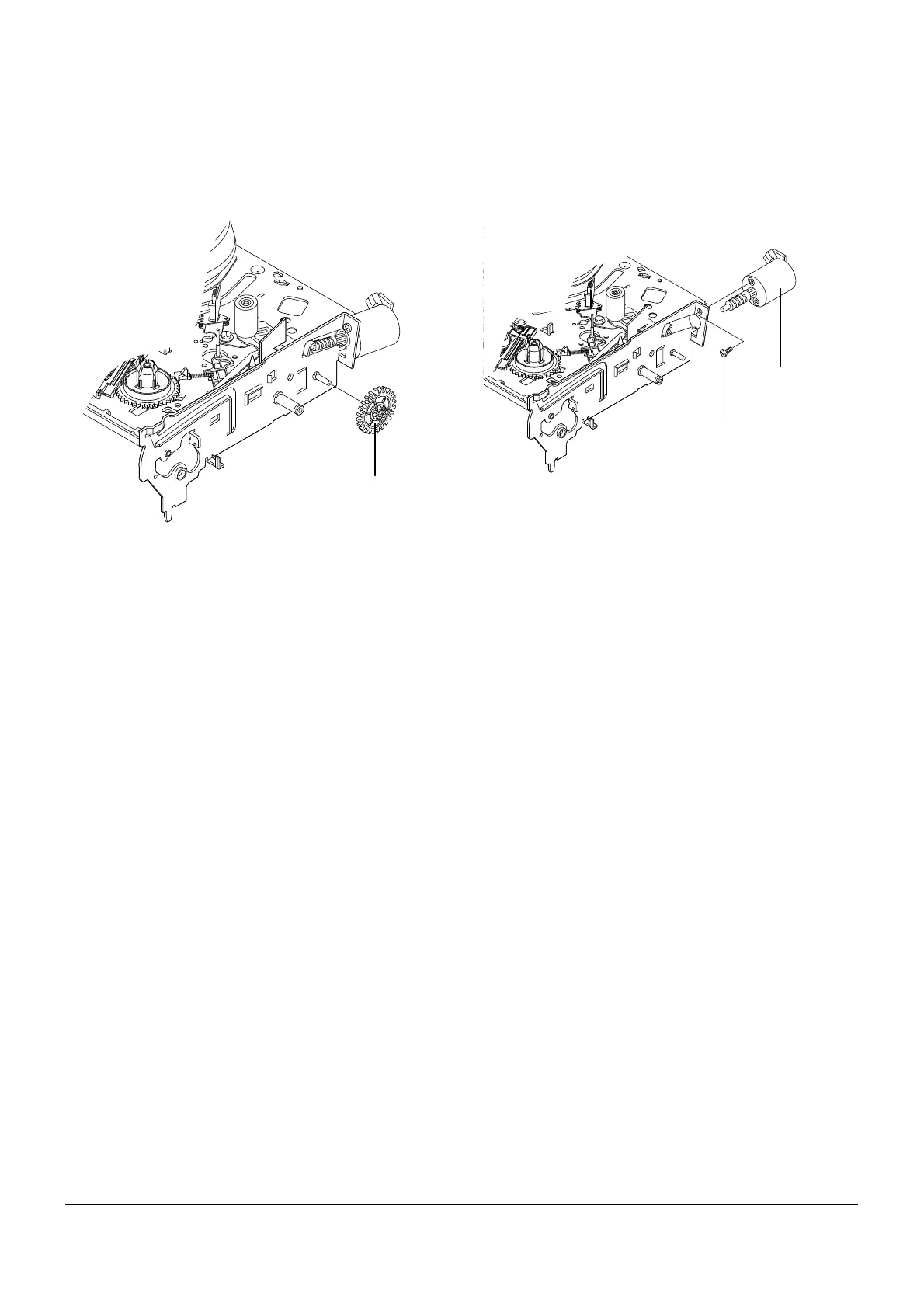

4-3-5 Gear Worm Wheel Removal
1) Remove the Gear Worm wheel Œ.
ΠGEAR WORM WHEEL
Fig. 4-14 Gear Worm Wheel Removal
4-3-6 Motor Loading Ass’y Removal
1) Remove the screw Œ.
2) Remove the Motor Loading Ass’y ´.
´ MOTOR LOADING ASS`Y
ΠSCREW
Fig. 4-15 Motor Loading Ass’y Removal
