4-3-7 Bracket Gear, Gear Joint 2, 1 Removal
1) Remove the Screw
Œ
.
2) Remove the Bracket Gear ´.
3) Remove the Gear Joint 2 ˇ.
4) Remove the Gear Joint 1 ¨.
Assembly :
1) Be sure to align dot mark of Gear Joint 1
Œ
with
dot mark of Gear Joint 2 ´ as shown Fig 4-17.
(Refer to Timing point1)
2) Confirm the Timing Point 2 of the Gear Joint 2 ´
and Slider Cam ˇ.
ΠSCREW
´ BRAKET GEAR
¨ GEAR JOINT 1
ˇ GEAR JOINT 2
4-3-8 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Removal
1) Remove the Belt Pulley. (Refer to Fig. 4-35)
2) Remove the Gear Loading Drive Πafter releasing
Hook [A] in the direction arrow as shown in detail
drawing.
3) Remove the Slider Cam ´.
4) Remove the Lever Load ˇ, Link Load ˆ & Lever
Load ¨, Link Load Ø.
ΠGEAR LOADING DRIVE
ˆ LINK LOAD S
ˇ LEVER LOAD S
¨ LEVER LOAD T
Ø LINK LOAD T
´ SLIDE CAM
HOOK(A)

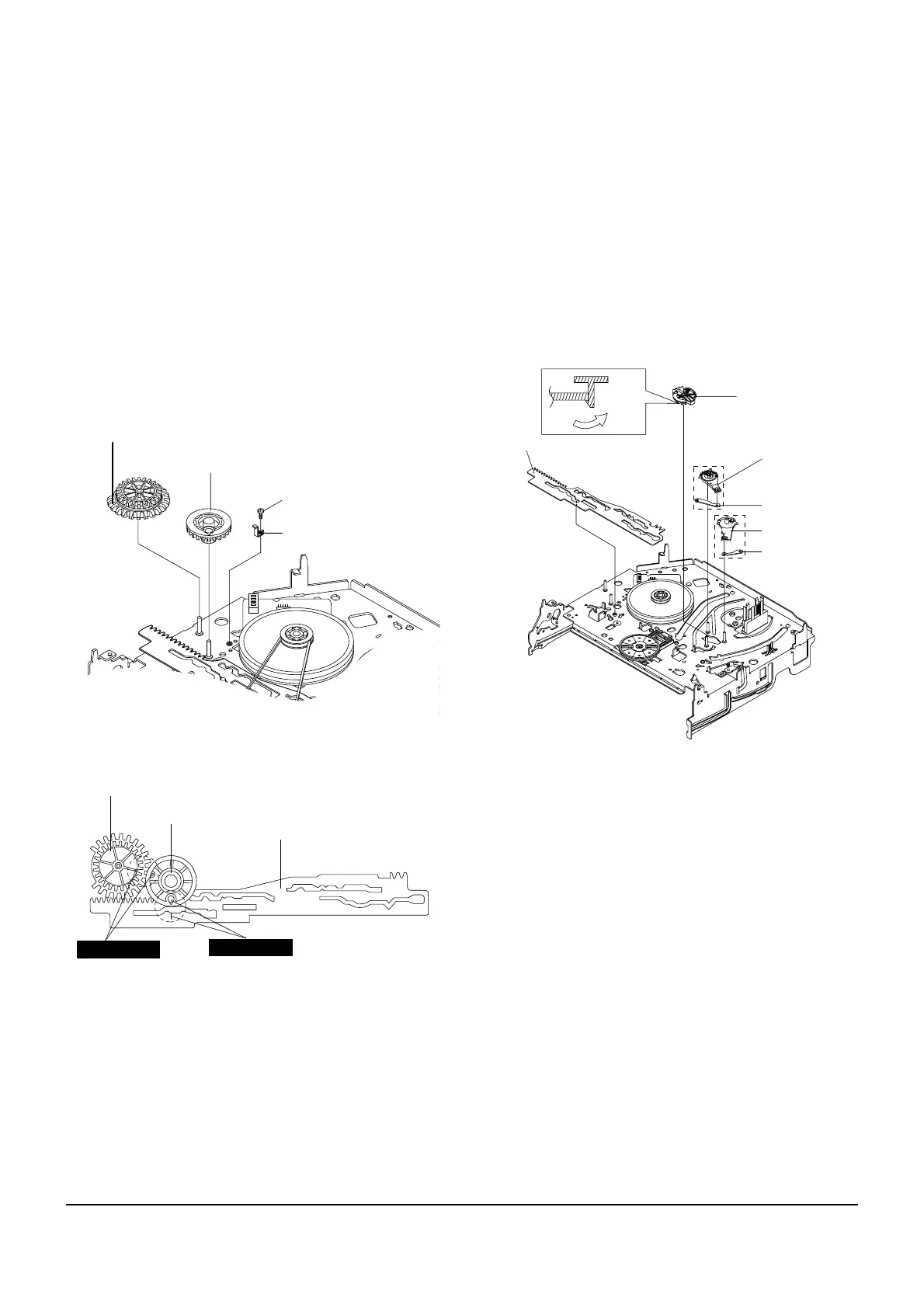

Fig. 4-16 Bracket Gear, Gear Joint 1,2 Removal
ΠGEAR JOINT1
´ GEAR JOINT2
ˇ SLIDER CAM
TIMING POINT 1
TIMING POINT 2
Fig. 4-17 Gear Joint 1,2 Assembly
Fig. 4-18 Gear Loading Drive, Slider Cam,
Lever T, S Load Ass’y Removal
To Next Page
