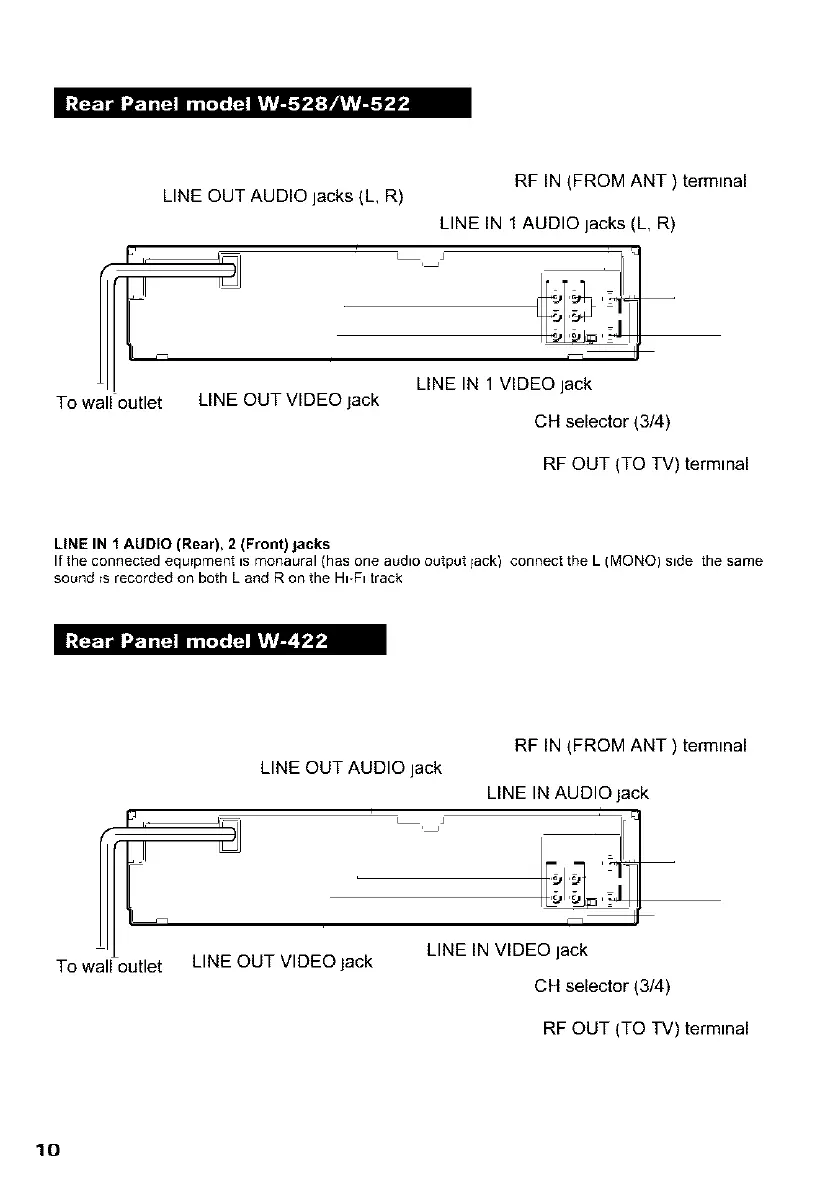

LINE OUT AUDIO jacks (L, R)
RF IN (FROM ANT ) terminal
LINE IN 1 AUDIO jacks (L, R)
To wall outlet LINE OUT VIDEO jack
_,__J
LINE IN 1 VIDEO jack
CH selector (3/4)
RF OUT (TO TV) terminal
LINE IN 1 AUDIO (Rear), 2 (Front) jacks
If the connected equipment is monaural (has one audio output lack} connect the L (MONO) side the same
sound _s recorded on both L and R on the Hi-Fi track
LINE OUT AUDIO jack
_4 i,_1 _
To wall outlet LINE OUT VIDEO jack
_, J
RF IN (FROM ANT ) terminal
LINE IN AUDIO jack
LINE IN VIDEO jack
CH selector (3/4)
RF OUT (TO TV) terminal
10
