8
2) for general bait boats ( like Carp Madness, Viper, etc)
For these bait boats, there is no transducer groove on the bottom housing. So, you
need to drill a hole on the boat bottom to x the transducer.
3) for bait boats of Carplounge/Waverunner/Vegaboat/Carp, etc
For these bait boats, there is a transducer groove on the boat bottom. So, you only need
to simply match the transducer to the boat with a rubber.

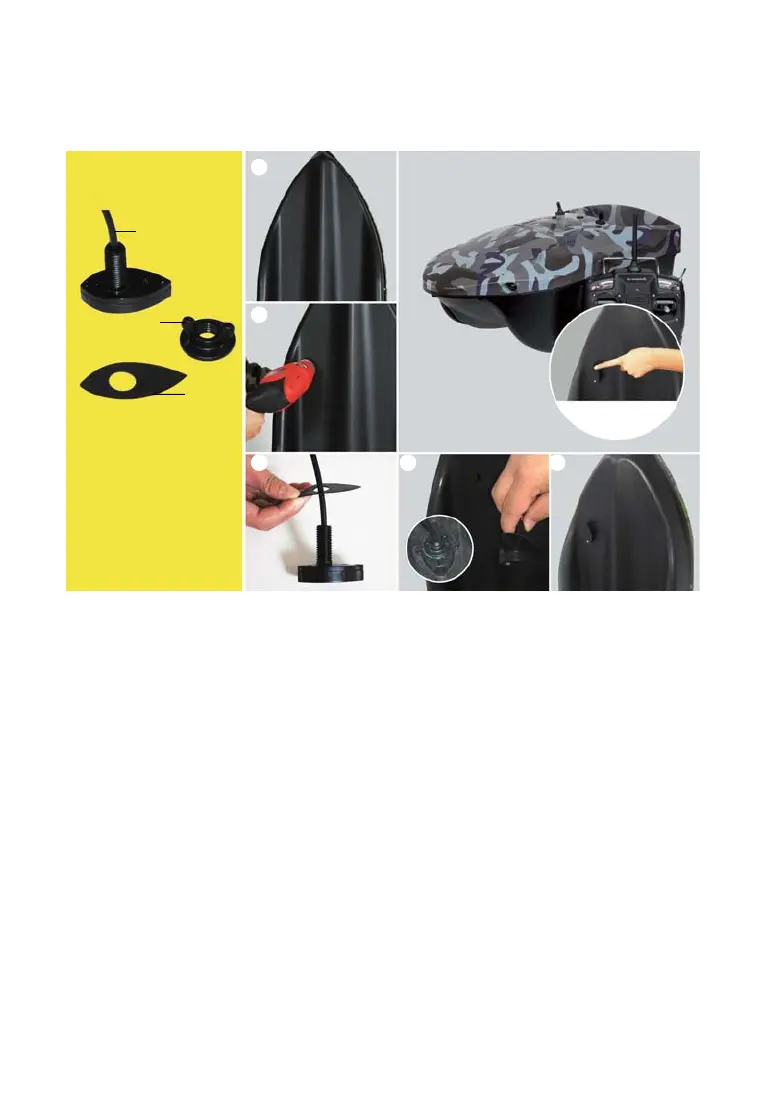

Transducer
Knob
Rubber
Transducer
Mounting Instruction
1) Choose a proper position
2) Drille a hole (14mm) on the
selected position.
3) Assemble the transducer
and rubber.
4) Hold the assembled
transduer and rubber through
the housing. Then use the knob
to screw tighten the transducer
from the inner housing.
5) The nished installation.
1
2
3 4
5
keep the sharp end the same
direction with head of
boat
