Notice: All wiring of the indoor and outdoor units should be completed by a
professional electrician or HVAC installer.

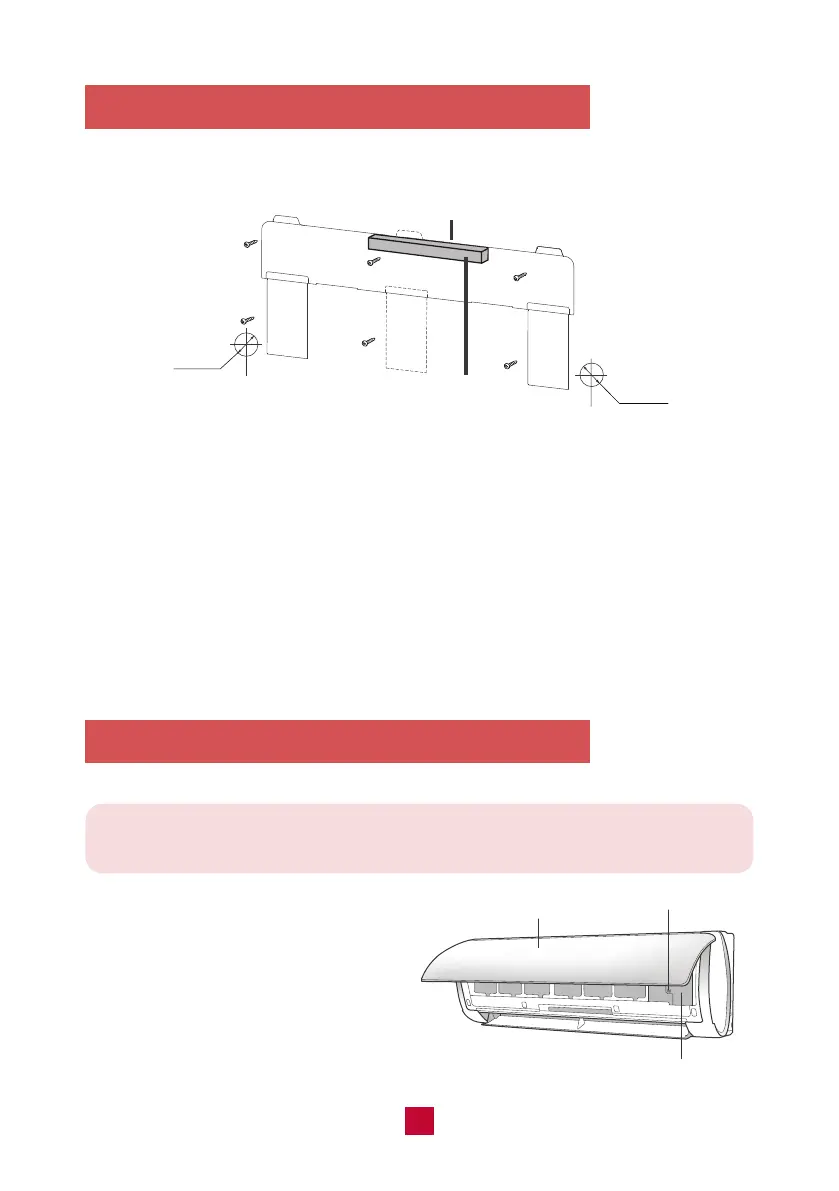

2. Attach the Mounting Plate to the Wall
3. Connect the Wiring of the Indoor Unit
Φ55m
Φ70mm
Φ55m
Φ70mm
Rear piping hole
Rear piping hole
Bubble level
The mounting plate is where you will mount the indoor unit.
● Hold the mounting plate against the wall and adjust the plate using a bubble
level until perfectly level.
● Mark screw holes on the wall and drill pilot holes with a drill. You may need a
stud finder to find wooden studs to securely anchor the mounting plate. Do not
just drill holes through drywall as this is not strong enough to support the indoor
unit.
● Secure the mounting plate to the wall with the provided screws until the mounting
plate is firmly attached to the wall.
front panel
screw
wiring cover
● Open the front panel of the indoor
unit and use a screwdriver to pry
open the wiring cover located on
the right side. This will reveal the
terminal block.
To Next Page
