Installation and Maintenance
Service Manual

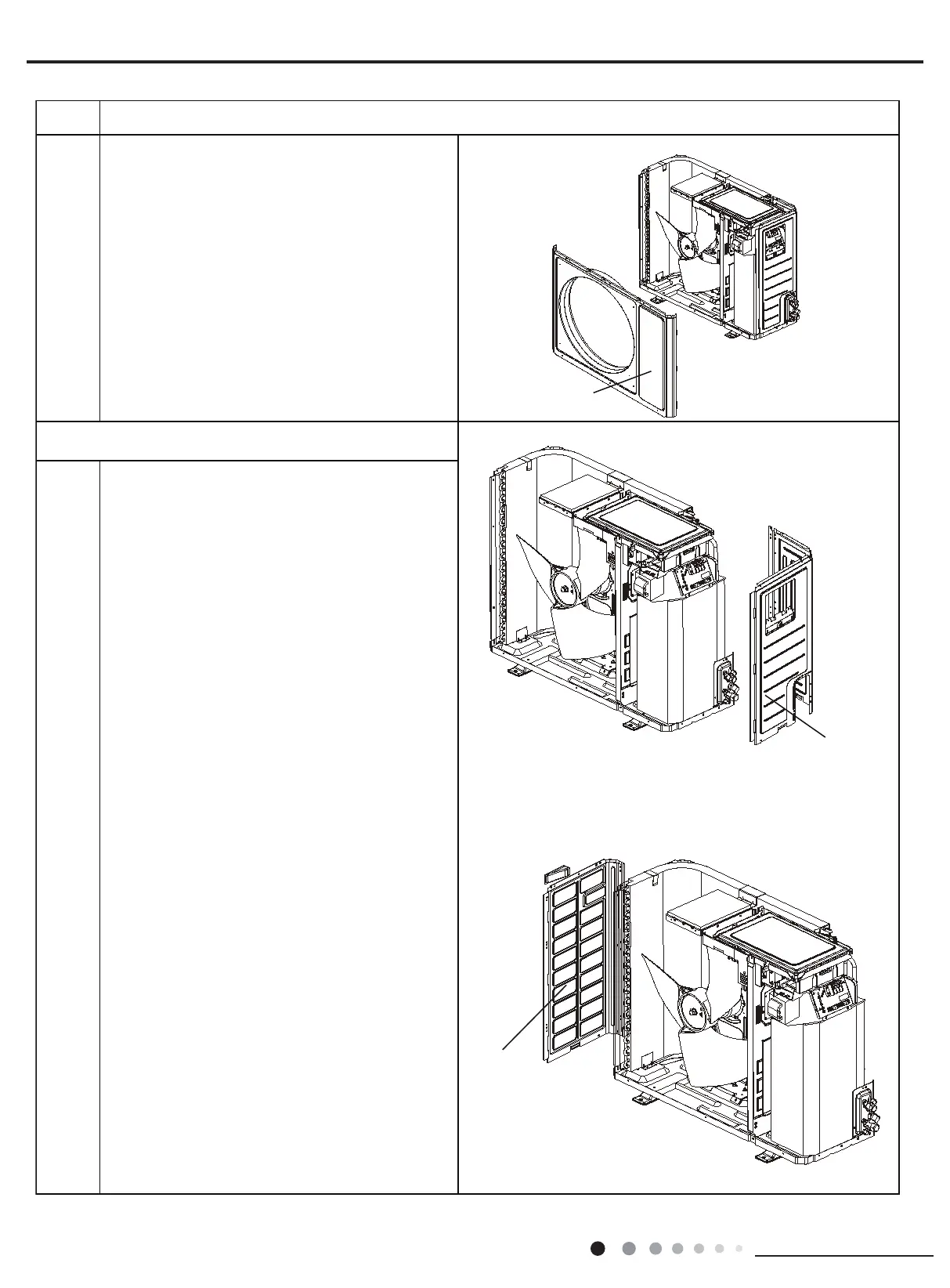

Remove the screws connecting the outer case with
motor support, isolation plate and chassis; lift the
outer case upwards; loosen the clasps of outer
case with right side plate and left side plate, and
then remove the outer case.
Remove the screws connecting the right side plate
with electric box assy, valve support, chassis and
condenser side plate, and then remove the right
side plate.
Remove the screws connecting the left side plate
with chassis, and then remove the left side plate.
Steps Procedure
left side plate
outer case
3. Remove right&left side plate
right side plate
a
b
To Next Page
