Steps

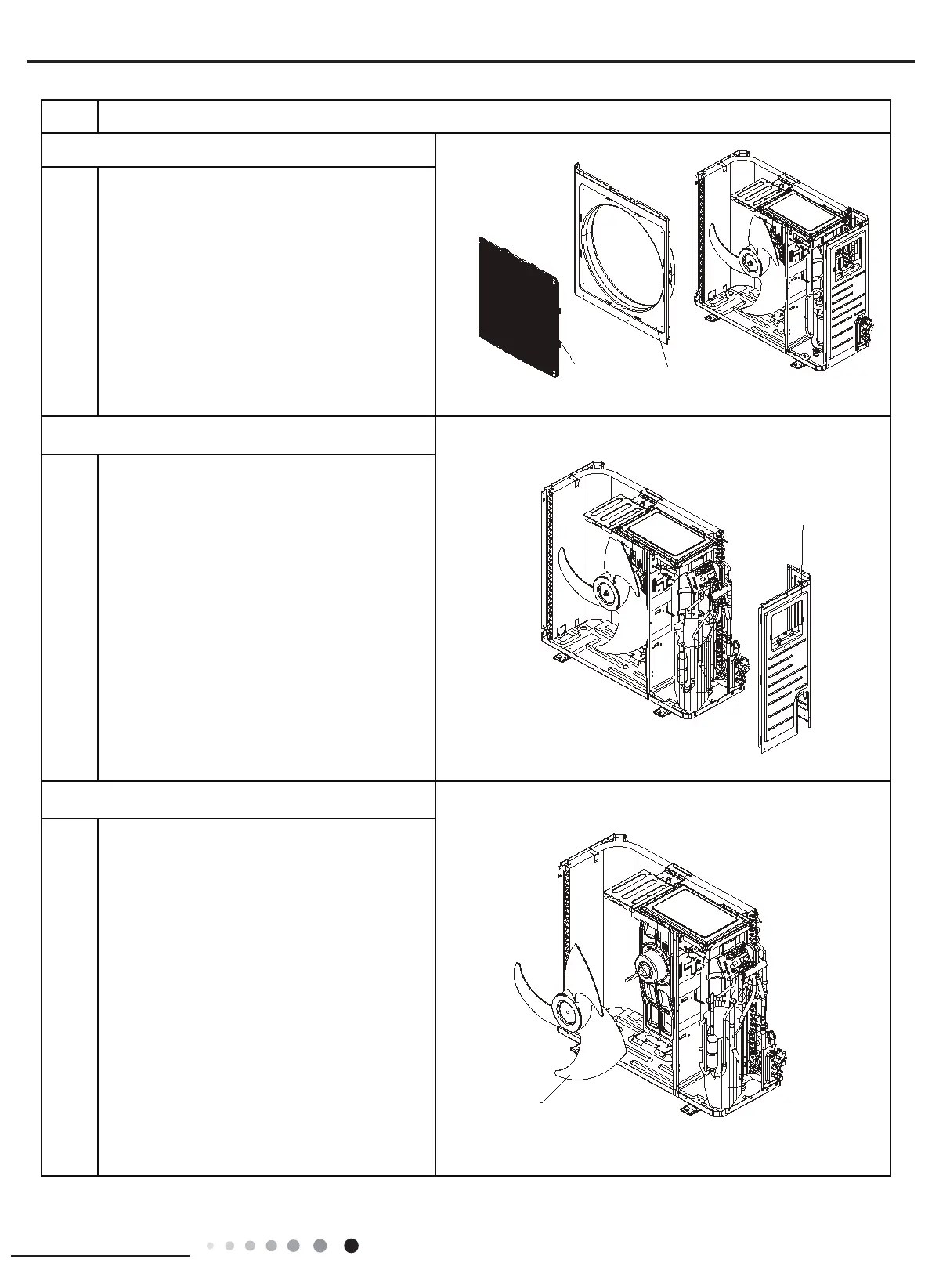

4.Remove grille and panel
grille
panel
Twist off the screws connecting the panel, chassis
and motor support with screwd-river, and then
remove the panel.
Twist off the screws connecting the grille and
panel, and then remove the grille.
5.Remove right side plate
right side plate
Twist off the screws connecting the right side
plate and chassis, valve support and condenser,
and then remove the right side plate.
6.Remove axial flow blade
axial flow blade
Twist off the nuts on blade with wrench and then
remove the axial flow blade.
