150

Installation and Maintenance

Service Manual

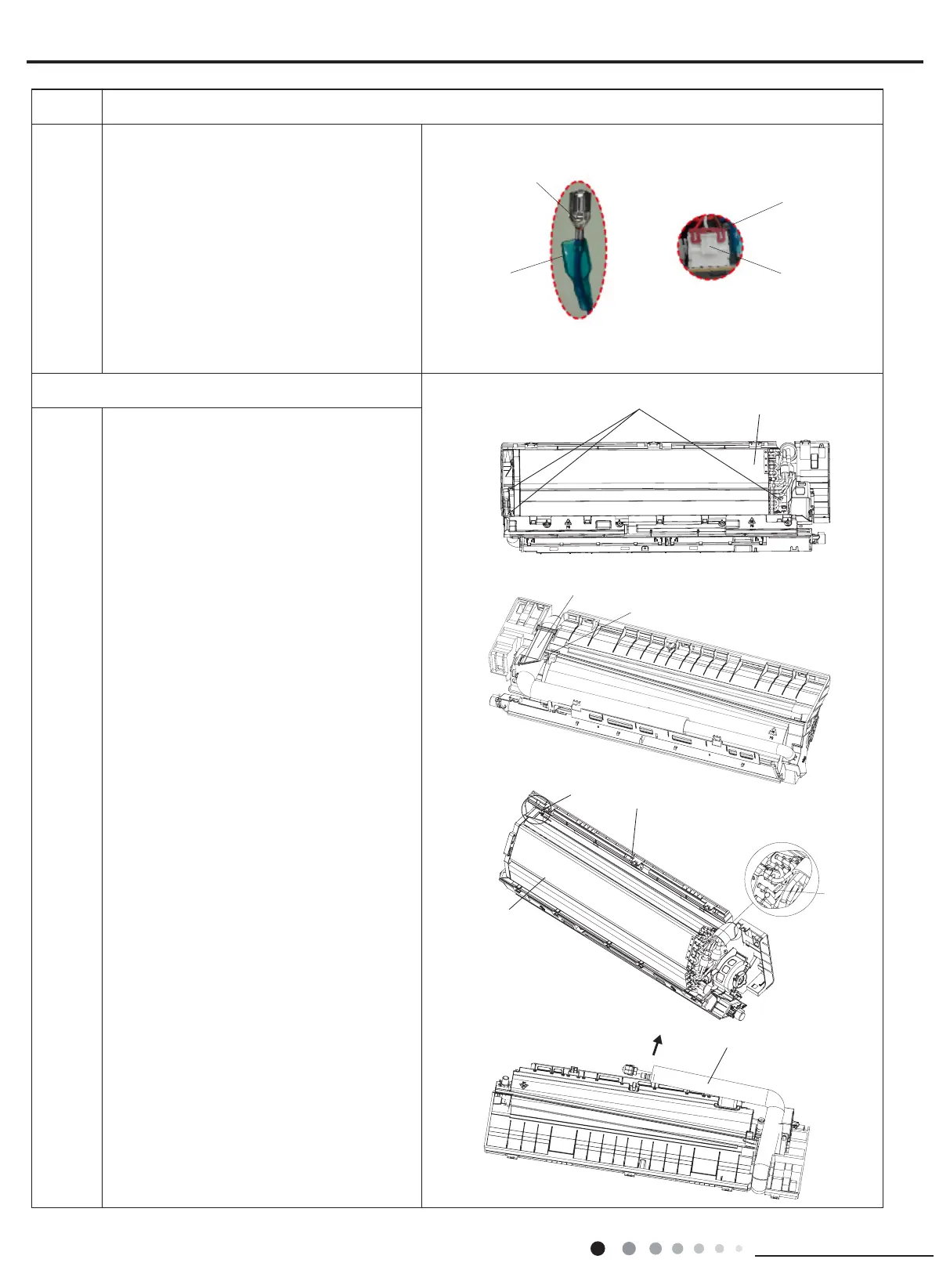

First remove the left side of the evaporator

from the groove of bottom case and then

remove the right side from the clasp on

the bottom case.

Instruction: Some wiring terminal of this

product is with lock catch and other devices.

The pulling method is as below:

1.Remove the soft sheath for some terminals

at rst, hold the circlip and then pull out the

terminals.

2.Pull out the holder for some terminals at

rst (holder is not available for some wiring

terminal), hold the connector and then pull the

terminal.

circlip

soft sheath

holder

connector

ProcedureStep

Remove 3 screws xing evaporator assy.

8. Remove evaporator assy

Screws

Connection pipe clamp

Evaporator assy

Screw

Groove

Bottom case

Clasp

Connection pipe

At the back of the unit, remove the

screw xing connection pipe clamp and

then remove the connection pipe clamp.

Adjust the position of connection pipe

on evaporator slightly and then lift the

evaporator upwards to remove it.
