44
Installation and Maintenance
Service Manual

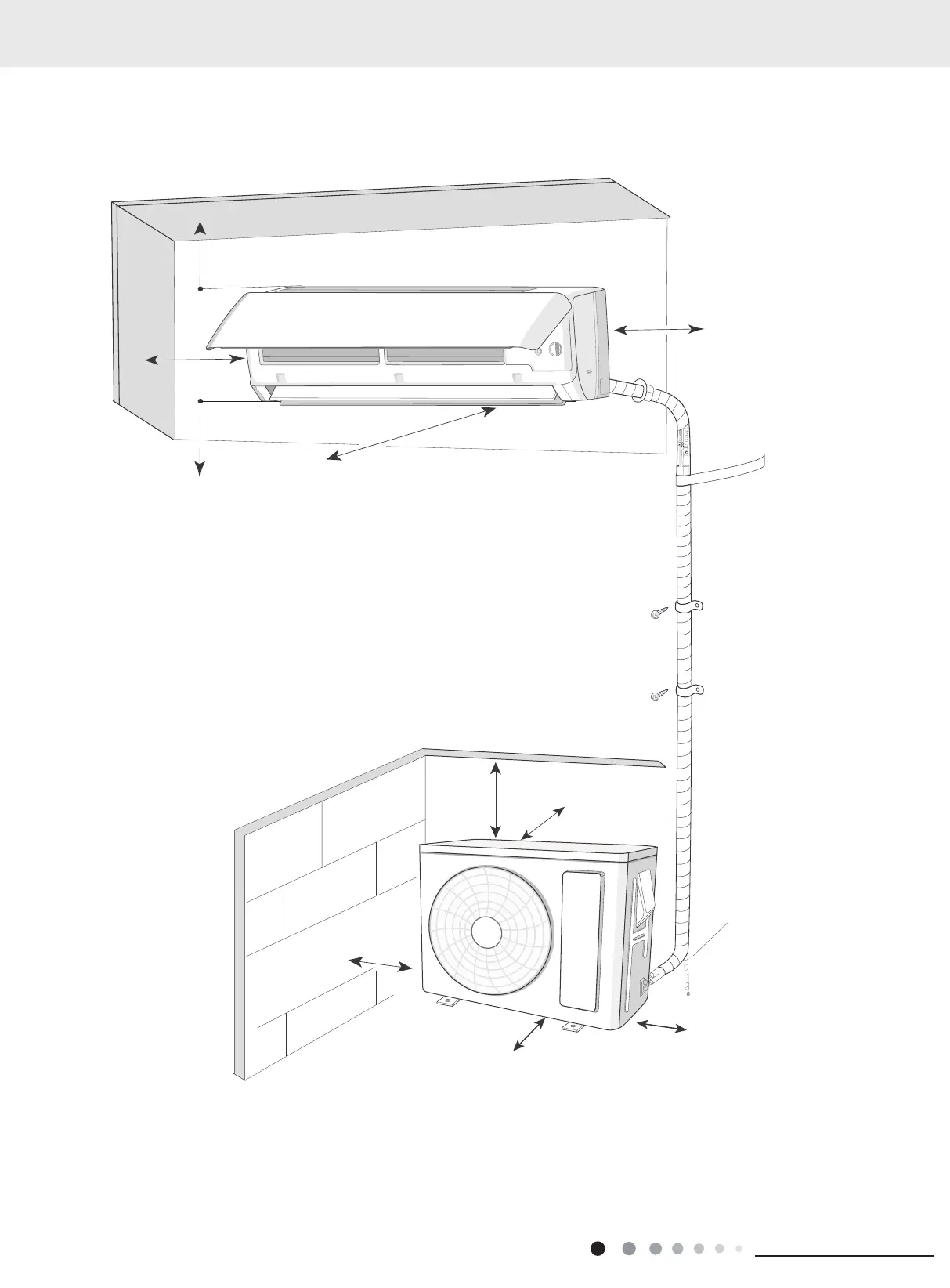

8.1 Installation Dimension Diagram
Drainage pipe
Space to the obstruction
At least 50cm
Space to the obstruction
At least 30cm
Space
At least
t
o the obstruction
50cm
Space to the obstruction
At least
200cm
Space to the wall
At least 30cm
At least 15cm
At least 15cm
At least 250cm
Space to the ceiling
Space to the wall
At least 300cm
Space to the obstruction
Space to the floor
At least 15cm
to the wallSpace
8. Installation
