TOTAL GYM
®
1900 OWNER’S MANUAL
To order optional accessories, please go to TotalGymCatalog.com
TOTAL GYM
®
1900 OWNER’S MANUAL | PARTS OVERVIEW & LIST
To order optional accessories, please go to TotalGymCatalog.com 14
Table of Contents
EQUIPMENT WARNING / CAUTION LABELS ........................................................................................... 3
SAFETY INSTRUCTIONS ......................................................................................................................... 3
PRODUCT SPECIFICATIONS .................................................................................................................. 4
SET UP ..............................................................................................................................................5-6
ACCESSORIES: HOW TO’S ...............................................................................................................7-10
Multi-Function Attachments .......................................................................................................................................7-8
Press Up Bars .............................................................................................................................................................. 8
Dip Bars ...................................................................................................................................................................... 8
Ab Crunch Boards ........................................................................................................................................................ 9
Leg Pulley Accessory Kit ............................................................................................................................................. 10
STARTING OUT .................................................................................................................................... 11
INSPECTION, MAINTENANCE & STORAGE ......................................................................................12-13
PARTS OVERVIEW & LIST .................................................................................................................... 14
1 R300030 Glideboard Assembly 1
Roller Spacer 4
8 x 55 Hex Bolt 4
Wheel 4
8 mm Flat Washer 4
8 mm Nylon Nut 4
RR103RC Rectangle End Cap 2
2 R600030 Cable Kit 1
RRS871 Straight Safety Pin / Lanyard 1
R19HAN Handles 2
3 R19 Lower Rail Assembly 1
RR103EC Tube Cap 2
RR103RC Rectangle End Cap 2
4 R19 Upper Rail Assembly 1
RR103RC Rectangle End Cap 4
5 R19LPAK Leg Pulley System 1
R19-9E U Bracket 1
R19-15 Hitch Pin 1
R19-9G Foot Strap 1
R1950 Pulley and Rope 1
R19-9D D-Ring 1
ITEM # PART# DESCRIPTION QTY
R19LIT Literature Pack 1
6 R19 Height Adjustment Assembly 1
R195EC Upright Cap 2
R195AP Adjustment Pin 1
RR106SB Black Spring Loaded Pin 1
7 R19 Vertical Column 1
RR11OST Rubber Stopper Assembly 1
R1952 Safety Hitch C Pin 1
RR105TR Tube Roller 2
R19FCB Flip Chart Base 1
R19FC Flip Chart Stand with Cards 1
8 R90025 AB Crunch Left Assembly 1
9 R90026 AB Crunch Right Assembly 1
10 RRWAS Multi-Function Attachment Set 1
R40117R Right Multi-Function Bar 1
R40117L Left Multi-Function Bar 1
11 RDBS Dip Bar Set 1
12 R13960 Press Up Bars 1
13 RRPILS Pilates Bar Assembly 1

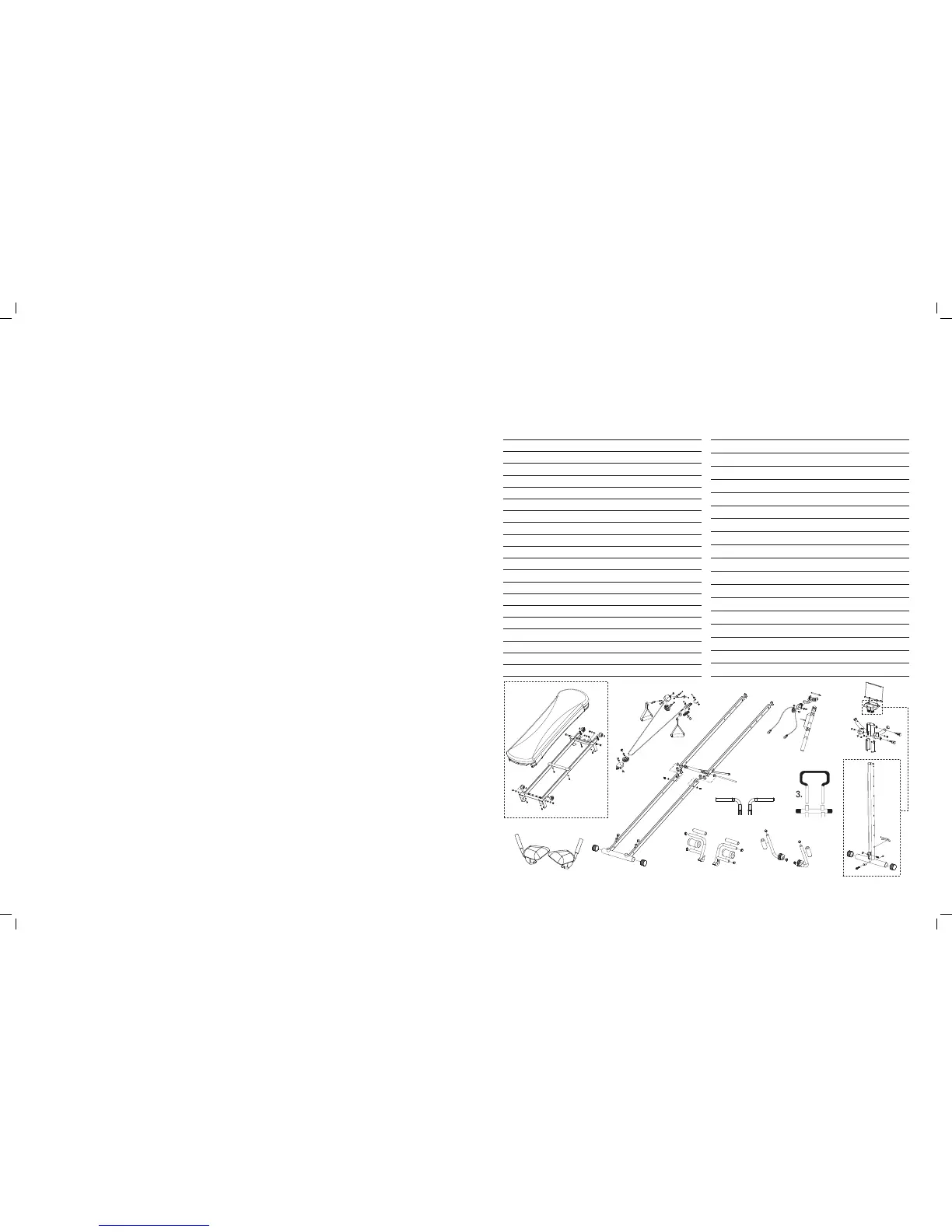

Total Gym
®
1900 Parts List and Visual Overview
ITEM # PART# DESCRIPTION QTY
2.
13.
10.
11.
3.
4.
5.
1.
6.
7.
12.
8.
9.
