Total TACLI2002 - Deflating with Low Pressure Hose; Using as a Pressure Gauge

12
• Remove the hose by turning it clockwise as far as it will go and pulling it out of
the inflator.

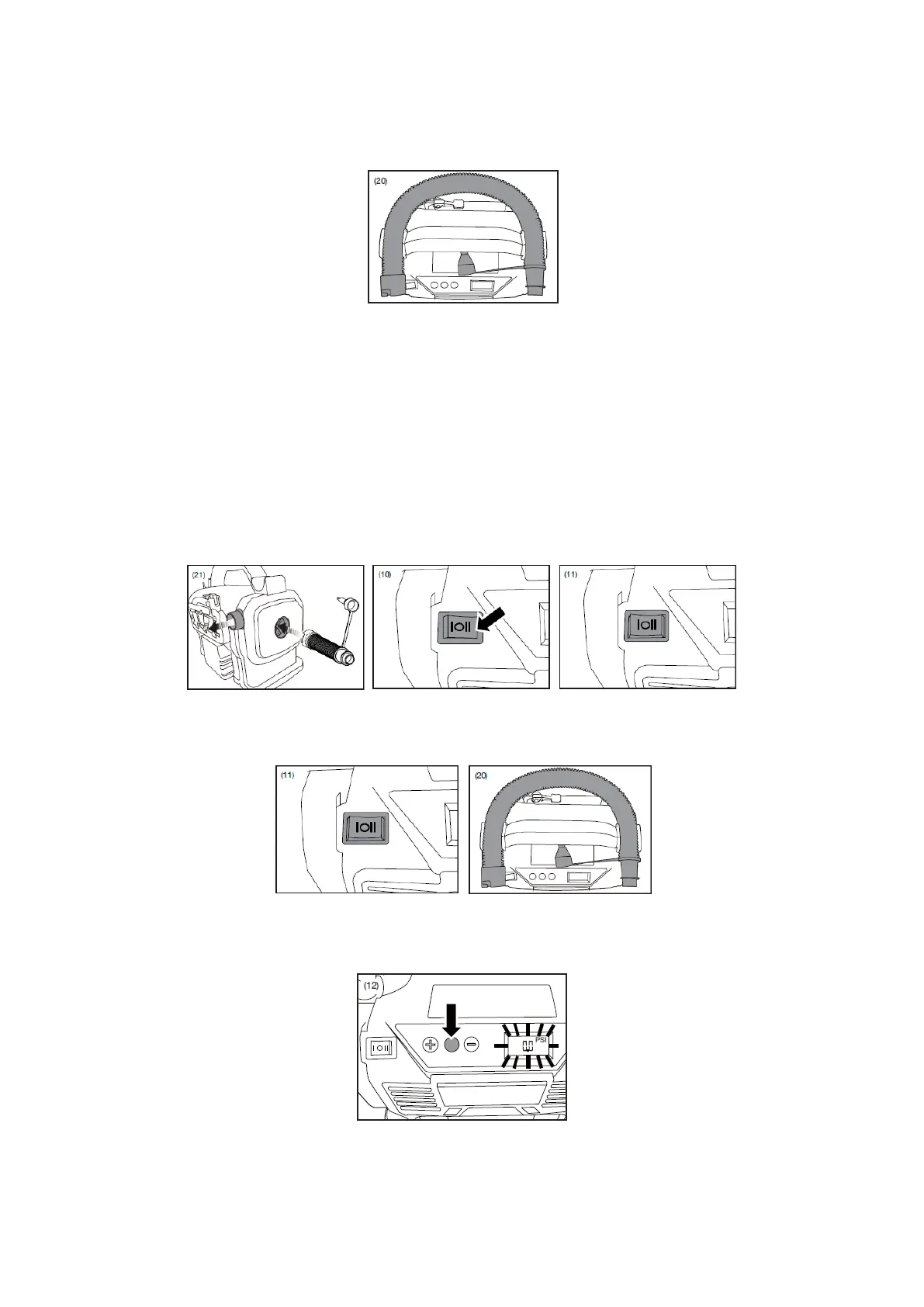

• Store hose in storage area on top of product (Fig. 20).
Note: Pump mode does not have an auto power off feature. Always leave the low pressure hose
free of obstructions and with the pinch valve adapter disconnected when not in use. Overheating
could occur if the low pressure hose is blocked.
Deflated with the low pressure hose
• Pl
ace the hose inside the deflator (Fig.21).
• Press the low pressure switch (II) to start deflation (Fig.10).
• When the item has deflated, turn off the switch (Fig. 11).
• Remove the hose by pulling it from the deflator.
• Store hose in storage area on top of product (Fig. 20).
Using the inflator as a pressure gauge
• Press the mode button to activate (Fig. 12).
• Attach the universal valve adapter to the item to be tested.
• The digital pressure gauge will display the pressure of the elements.
