TotalPond 52301 - Preparation and Installation; Pre-Assembly Checks; Package Contents; Operation Instructions

Visit WWW.TOTALPOND.COM for information and tips.
EN EN
6
Please call Customer Care before returning item to store: 1-888-412-6001
7

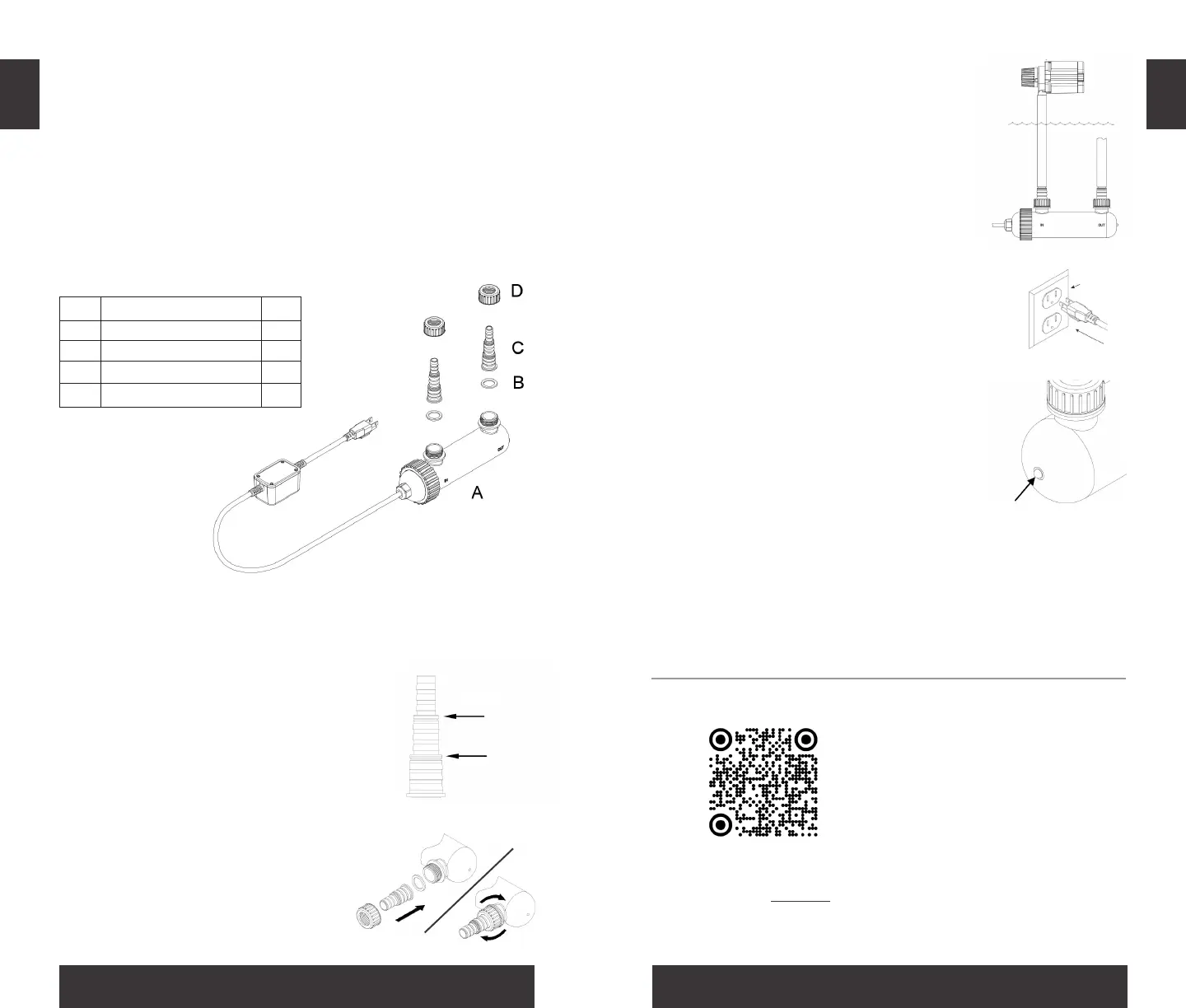

Part Description Qty
A UV light 1
B Adapter Gasket 2
C Adapter 2
D Adapter Nut 2
PREPARATION
Before beginning assembly or operation of product, make sure
all parts are present. Compare parts with package contents list
and diagram. If any part is missing or damaged, do not attempt
to assemble, install or operate the product. Contact Customer
Care for replacement parts.
• Estimated Assembly Time: 5 minutes
• Tools required for assembly: Hacksaw
PACKAGE CONTENTS
OPERATION INSTRUCTIONS
Cut ring
1
3/4 in. tubing is recommended for optimum
performance. If using 1/2 in. tubing, skip to
step 2.
Step 1. If using 3/4 in. tubing, trim the adapter
using a hacksaw at the location indicated.
If using 1 in. tubing, trim the adapter using a
hacksaw at the location indicated.
B
C
D
Step 2. Place the tubing adapter on
the left hole of the UV Clarier and
use a gasket for it to be sealed tightly
when fastened.
Hand tighten the locking ring outside
the tubing adapter for it to be secured
in place. Repeat for the right hole.
2
GFCI
outlet
3
4
5
6
Step 3. Unplug your pump from an electrical
source before connecting tubing.
Connect tubing from the outlet of a pump to
the inlet of the UV Clarifer.
Note: The inlet on the UV Clarier is marked
“IN”. Pump and tubing are not included.
Step 4. Connect tubing to the outlet of the
UV Clarier and to the inlet of a water feature
or return to the pond.
Note: The outlet on the UV Clarier is marked
“OUT”.
Step 5. Connect your pump to a properly
grounded electrial outlet. Connect the UV
Clarier into a properly grounded electrical
outlet.
Step 6. Wait several seconds then check
the indicator light to verify if the UV bulb is
functioning properly.
NOTE: This UV clarier includes a safety
feature that will not allow the light to turn
on if the lamp holder or locking ring are not
securely fastened.
Register your product online!
Use your smartphone camera
to scan the QR code or visit our
website totalpond.com/register
Date of purchase:
___ /___ /___
Item number:
#52301
