TotalPond MF13010 - Connect Tubes to Diverter Valve; Connect Tubing to Diverter Output; Adjust Diverter Valve for Flow

4

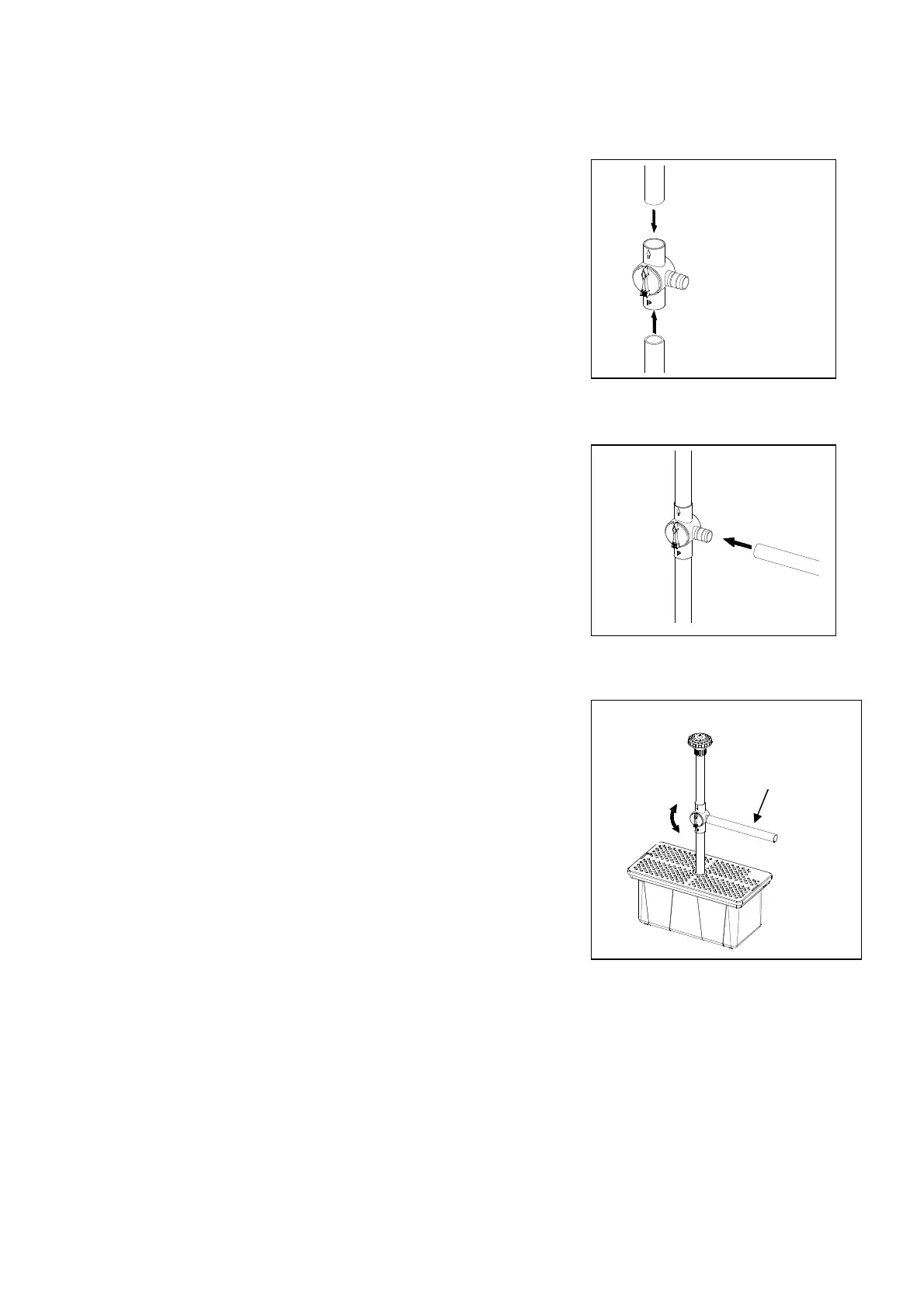

9. Connect the extension tubes to the diverter valve. Pay
attention to the markings on the ends of the diverter valve.
The end with the “P” connects to the pump. The end with the
“ ↑ ” points up, and connects to the fountain head. Fig. 9
NOTE: Tubes and diverter valve are NOT INCLUDED.
Fig. 9
10. For 1/2 in. tubing, connect the tubing onto the second output
of the diverter. Connect the other end of the tubing to a
spitter or other water feature. Fig. 10
NOTE: Tubing, diverter valve, and adapter are NOT
INCLUDED.
Fig. 10
11. Connect the fountain head to the top extension tube. Adjust
the diverter valve to split the flow between the fountain head
and the spitter. Fig. 11
NOTE: Fountain head kit is NOT INCLUDED.
Fig. 11
Extension tube
Extension tube
Diverter valve
Diverter valve
1/2 in.
tubing
Fountain head
Diverter
valve
1/2 in.
tubing
Extension
tube
Connect
to spitter
