4

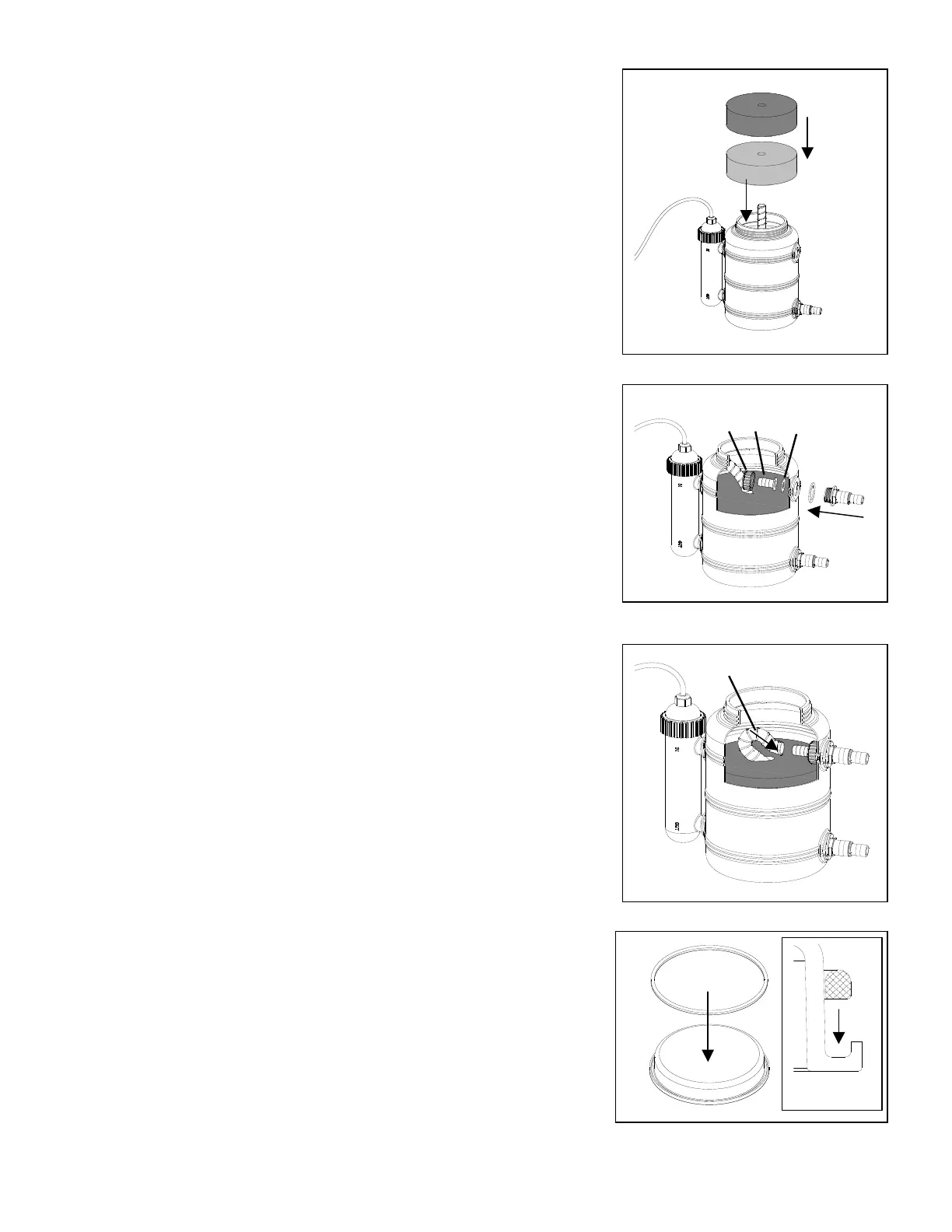

4. Place the fine filter pad inside the tank. Then place the coarse
filter pad over the fine filter pad. Fig. 4
NOTE: The coarse filter pad is black. The fine filter pad is
blue.
Fig. 4
5. Connect the small adapter to the adapter using the locking ring.
Be sure to place the gasket between adapter and tank, place
the small gasket between the small adapter and adapter. Fig. 5
Fig. 5
6. Connect tubing to the small adapter. Fig. 6
Fig. 6
7. Turn over the cover and locate the groove. Place the o-ring
into the groove. Notes: o-ring one side is flat, another side is
round, must place the flat side down into the groove of cover,
otherwise it will case leakage. (See detail view) Fig. 7
Fig. 7
F
G
J
H
I
Tubing
K
L
D
B
D
B
Detail view
