4

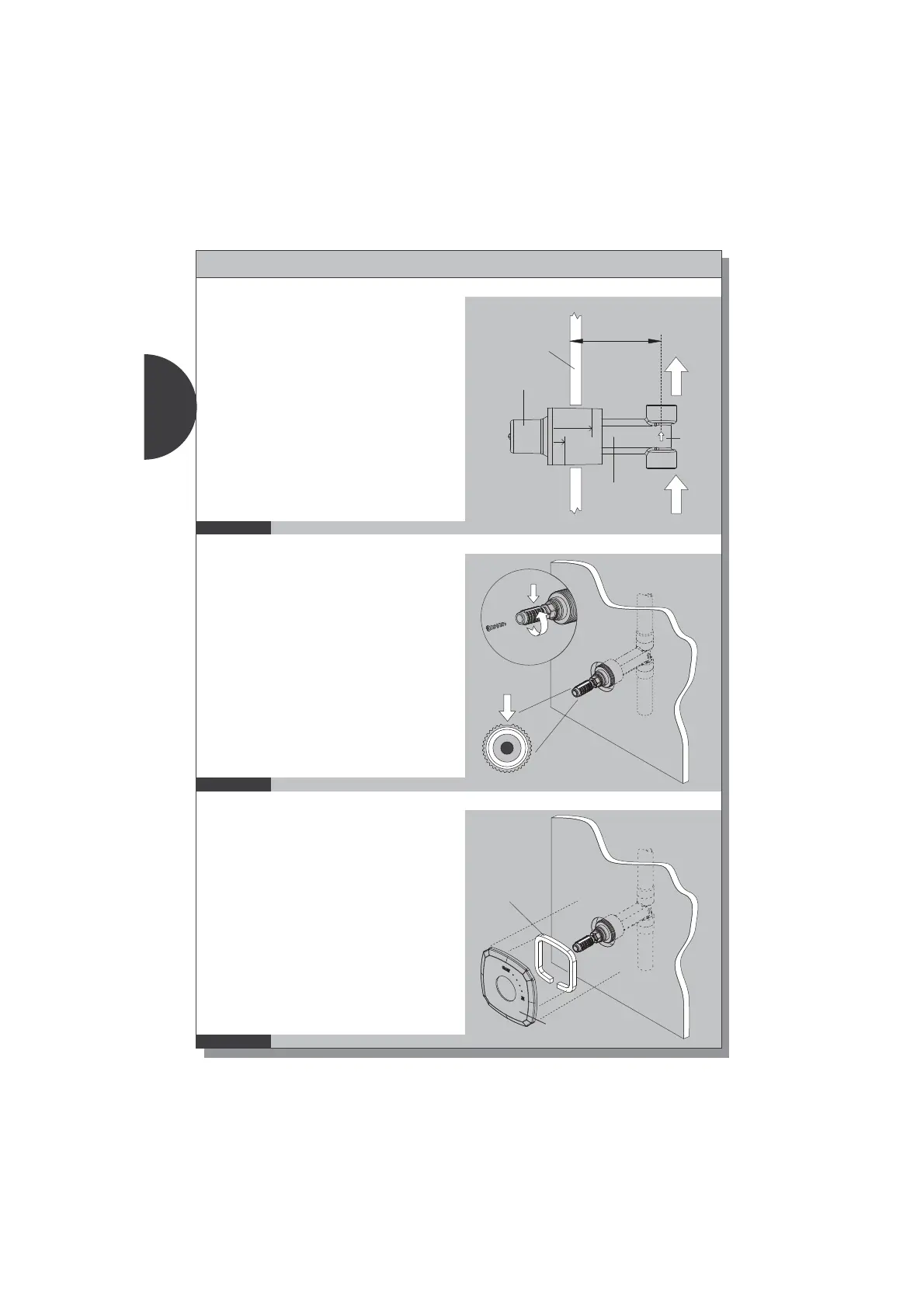

INSTALLATION
C
L
MAX
MIN
Max 95mm (3.75”)
Min 65mm (2.50”)
ENGLISH
INSTALL VALV E SO THAT THE OUTSIDE SURFACE OF
THE FINISHED WALL WILL BE BETWEEN THE MAX AND MIN
MARKINGS ON THE PLASTER GUARD: BETWEEN 65MM
AND 95MM (2.50”-3.75”) FROM THE CENTERLINE OF
THE PIPE COUPLINGS.
M
AKE SURE VALVE IS INSTALLED WITH THE SMALL
ARROW POINTING IN THE DIRECTION OF WATER FLOW.
P
LASTER GUARD SHOULD REMAIN IN PLACE UNTIL
READY TO CONTINUE THE INSTALLATION.
FINISHED WALL
PLASTER
GUARD
VOLUME
CONTROL
VALVE
WATE R - IN WATE R - OUT
WATE R FLOW DIRECTION
FLAT
REMOVE PLASTER GUARD MAKING SURE NOT TO
LOOSE SCREWS.
C
LOSE THE VALV E BY PLACING VALVE STEM ON VA LVE
AND ROTATING VALVE COUNTERCLOCKWISE UNTIL IT
STOPS.
F
LAT ON VALV E STEM SHOULD BE ON TOP.
I
F IT IS NOT, DO NOT TURN VALV E; INSTEAD, REMOVE
VALVE STEM AND REPLACE IT IN A 12 O’CLOCK POSITION
SECURE WITH SCREW.
P
ACKING MAY OR MAY NOT BE ATTACHED INSIDE
FACEPLATE. IF IT IS NOT, PLACE IT INSIDE THE BACK OF
THE FACEPLATE.
P
LACE FACEPLATE WITH PACKING AGAINST THE WALL
CENTERED OVER THE VALVE STEM
PACKING
Faceplate
To Next Page
