5

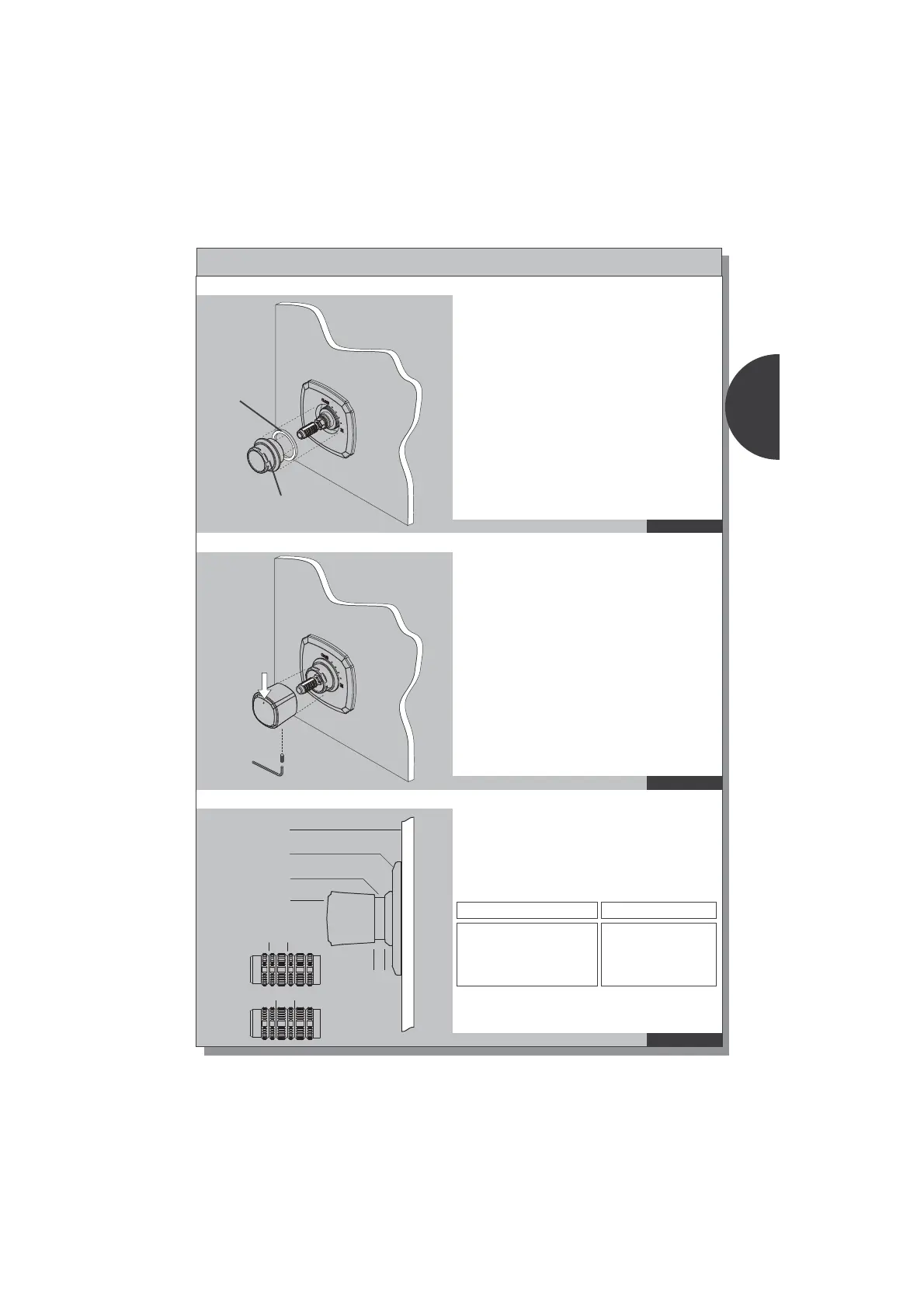

INSTALLATION
x
a
b
ab
TS960C2
TS970C2
ENGLISH
FINISHED WALL
FACEPLATE
ESCUTCHEON
CONTROL HANDLE
PLACE THE WHITE PACKING RING ONTO THE SMOOTH
END OF THE ESCUTCHEON; IT SHOULD FIT INTO A
GROOVE UNDER THE FLANGE.
W
HILE HOLDING THE FACEPLATE STRAIGHT AGAINST
THE WALL, SCREW THE ESCUTCHEON CLOCKWISE ONTO
THE VALVE UNTIL SNUG.
DO NOT
OVERTIGHTEN THE ESCUTCHEON.
M
AKE SURE THE FLAT ON THE VALV E STEM IS STILL
POINTING IN THE 12 O’CLOCK “CLOSED” POSITION.
L
OOSEN THE SET SCREW ON THE UNDERSIDE OF THE
HANDLE.
L
OCATE THE LASER ETCHED MARK ON THE FRONT
SURFACE OF THE HANDLE. HOLD THE HANDLE SO THAT
THIS MARK IS ALIGNED WITH THE FLAT ON THE VALV E
STEM.
G
ENTLY SLIDE THE CONTROL HANDLE ONTO THE
VALVE STEM (THERE SHOULD BE NO RESISTANCE). THE
MARK SHOULD BE POINTING TO “ CLOSED” ON THE
FACEPLATE.
PACKING
ESCUTCHEON
MEASURE THE DISTANCE (X) BETWEEN THE CONTROL
HANDLE AND THE ESCUTCHEON AND COMPARE IT TO THE
CHART BELOW.
R
EMOVE HANDLE AND VALVE STEM, CUT VALV E STEM
AS INDICATED ON CHART.
R
EASSEMBLE STEM AND HANDLE AS ABOVE. SECURE
WITH SET SCREW.
DISTANCE (X) ACTION
less than 10 mm (3/8”)
is 10 to 20 mm (3/4”)
greater than 20mm (3/4”)
No Action Required
Cut at: a
Cut at: b
To Next Page
