Tower KD58C Electric Bicycle Intelligent Display
Specifications
● 24V/36V /48V Power Supply
● Rated current: 10mA
● The maximum working current: 30mA
● Off leakage current: <1uA
● The supply controller working current: 50mA
● Working temperature: -20 ~ 60 ℃
● Storage temperature: -30 ~ 70 ℃

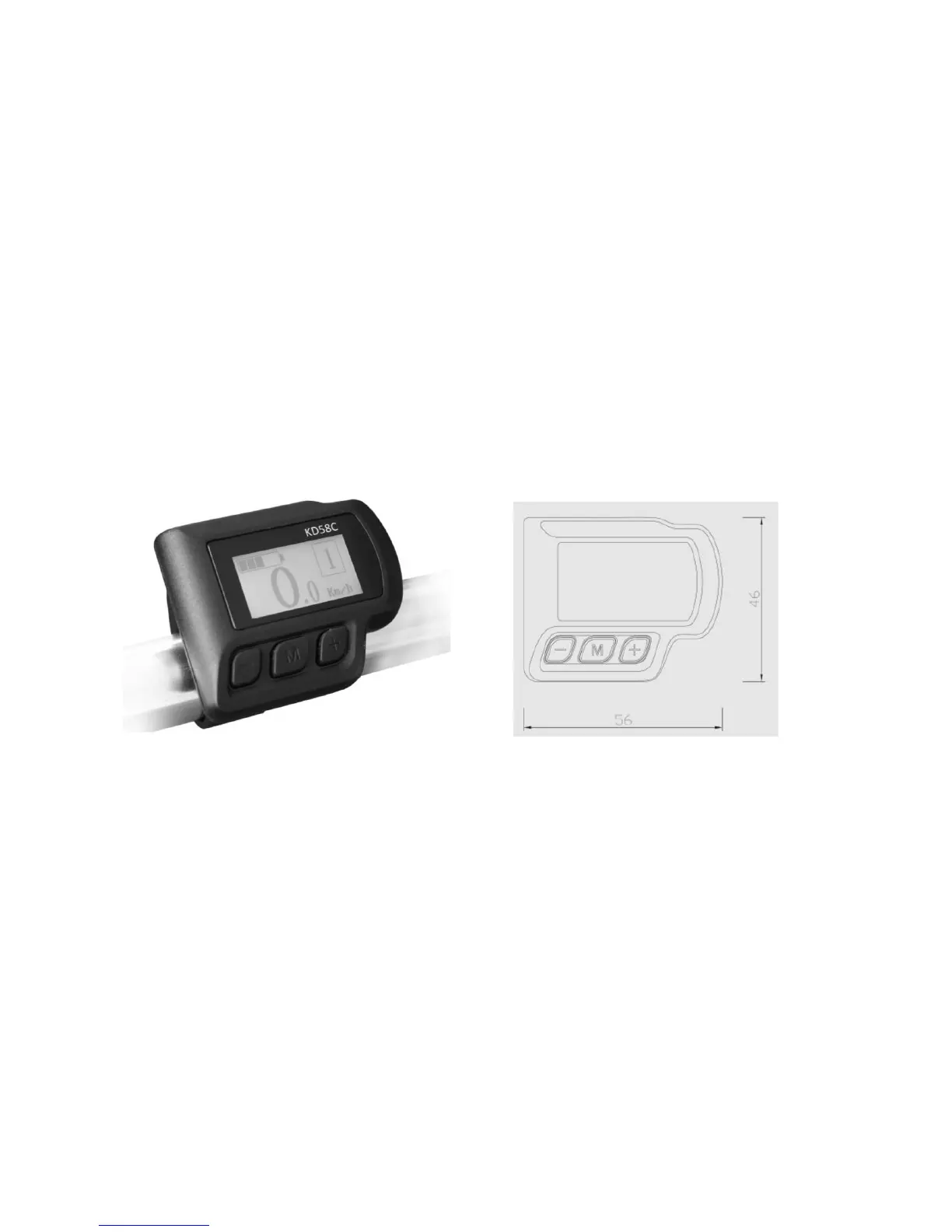

Appearance and Size
Function Summary and Button Definition
Function Summary:
This LCD controller is capable of the following functions:
● Smart battery indicator
● Assistance-level indication
● Speed indication (incl. running speed, max speed and average speed)
● Motor-output indicator
● Trip time indication
● Trip distance and total distance
● The push-assistance function
● Headlight power (On/Off)
● Error code indication
2
