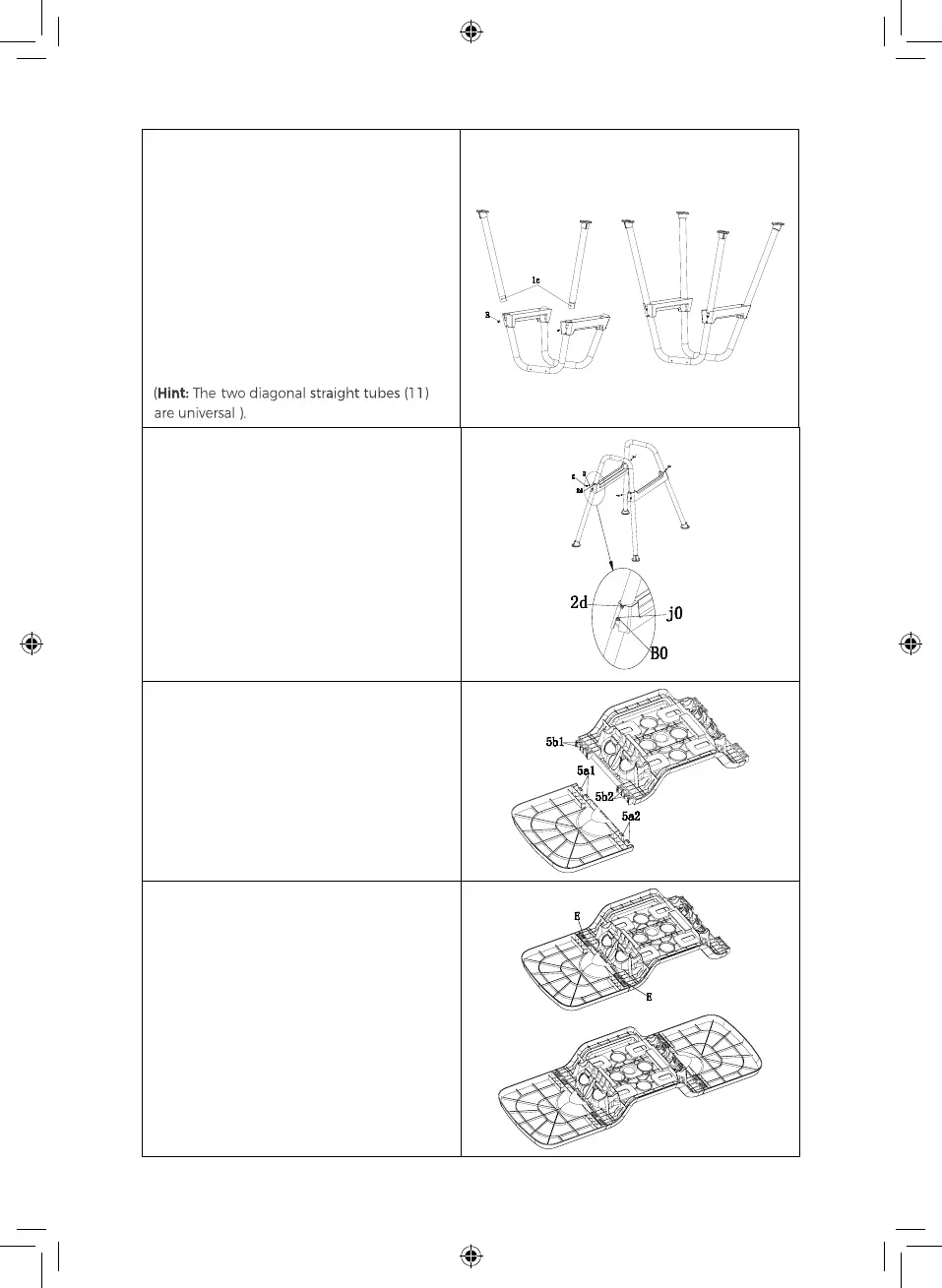

Insert the straight tube (11) with shrinkage
side into the hole of the U-shaped tube (10)
without shrinkage side.
Align the screw holes (1c) and (2c), tighten the
holes with screw (B).
Then insert the straight tube(11)without
shrinkage side into the hole of the U-shaped
tube (10) with shrinkage side.
Align the screw holes (1c) and (2c), tighten the
holes with screw (B).
According to this method, install the four
straight tubes (11) on the U-shaped tube (10).
After installing the straight tube (11), turn the
frame back over so it is now standing upright.
Press the plastic rack holder (13) down so
that the notch limit semicircular arc (j0) on
the plastic rack holder (13) is firmly pressed
against the round head (B0) of the screw B,
exposing the screw hole (2d) on the U-shaped
tube (10)
Take a Butterfly screw (C) and insert it into
the washer (D) to align the screw holes (2d)
and tighten. Tighten the other three parts in
the same way.
Turn over the Side table (9) and the centre
base (8); place them on a flat surface.
Matching hole (5b1) of the centre base (8)
align hole (5a1) of the Side table (9).
Matching hole (5b2) of the centre base (8)
align hole (5a2) of the Side table (9).
Then press down firmly.
(You can use a rubber hammer to lightly
hammer home.)
Use screw (E) to align the screw holes and
tighten.
Install the side table (9) on the other side in
the same way.
To Next Page
